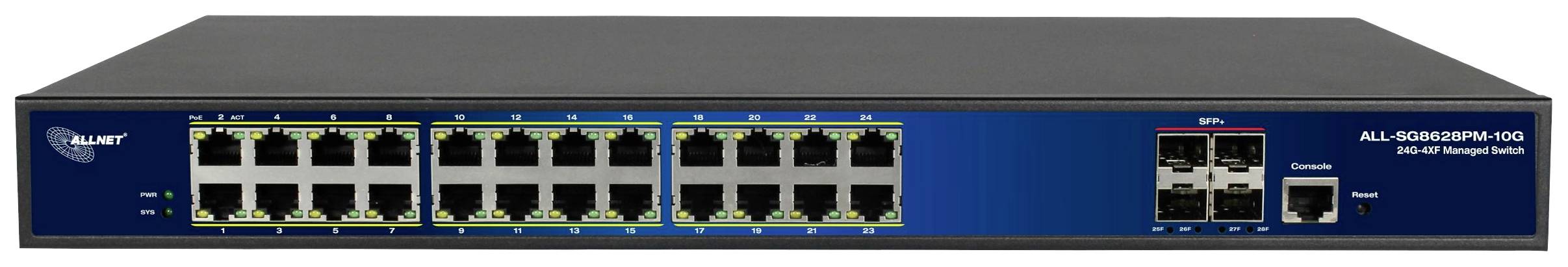

Allnet A208886 ALL-SG8628PM-10G Network switch 24 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Allnet switch fully managed 24 ports gigabit 370W / 24x PoE+ / 4x SFP+ 10G / 19" / "ALL-SG8628PM-10G"
- 24 ports gigabit layer 2+ switch architecture (ports 1~24)4 ports SFP+ 10G slots compatible for optional GBICSs (ports 25–28)Supports a variety of PoE management features, including PoE-shell, PoE-PD-alive, and so onSupports SFP DDM & cable diagnosticsSupports G.8032 ERPS, self-recognition time < 20 msSupports 1588 V2.0, transparent clockSupports port aggregation4KV surge protection, 6KV contact/8KV air ESD protectionMax. 370W PoE budget19" inch angle or wall/table mounting possible
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Managed switch
- SFP+ ports
4 x
- 10/100/1000 Mbps ports
24 x
- RS232 console ports
1 x
- Port type
Gigabit 370W
- Jumbo frames
Yes
- Router features
PoE
- Power supply (LOV)
mains-powered
- Weight
4.3
- Width
440 mm
- Height
44.5 mm
- Depth
290 mm
- Type
ALL-SG8628PM-10G
- Interfaces
Gigabit LAN (1 Gbps)
SFP+
RS232
- Factory colour
Black
- Max. ambient temperature
70 °C
- Min. ambient temperature
-20 °C
- Port
24 ports
Documents & Downloads
Datasheet
Datasheet 2792968 Allnet A208886 ALL-SG8628PM-10G Network switch 24 ports 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 2792968 Allnet A208886 ALL-SG8628PM-10G Network switch 24 ports 10 / 100 / 1000 MBit/s PoE
Description
ALL-SG8628PM-10G is a L2+ managed switch with 24 gigabit Ethernet ports and 4 1G/10G Dual speed SFPPorts. The 24 Ethernet ports support IEEE802.3.af/at PoE output, can be used with PoE PD devices such as IP cameras, wireless AP, doorbell etc. With the extended L2+ Management function it is simpleTo meet the technical requirements of the project. It is an ideal solution for CCTV surveillance, wireless coverage and other SMB applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With 6 bits. Power cable
