Name: Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000
Brand: Benning
SKU: 125281
Availability: SoldOut

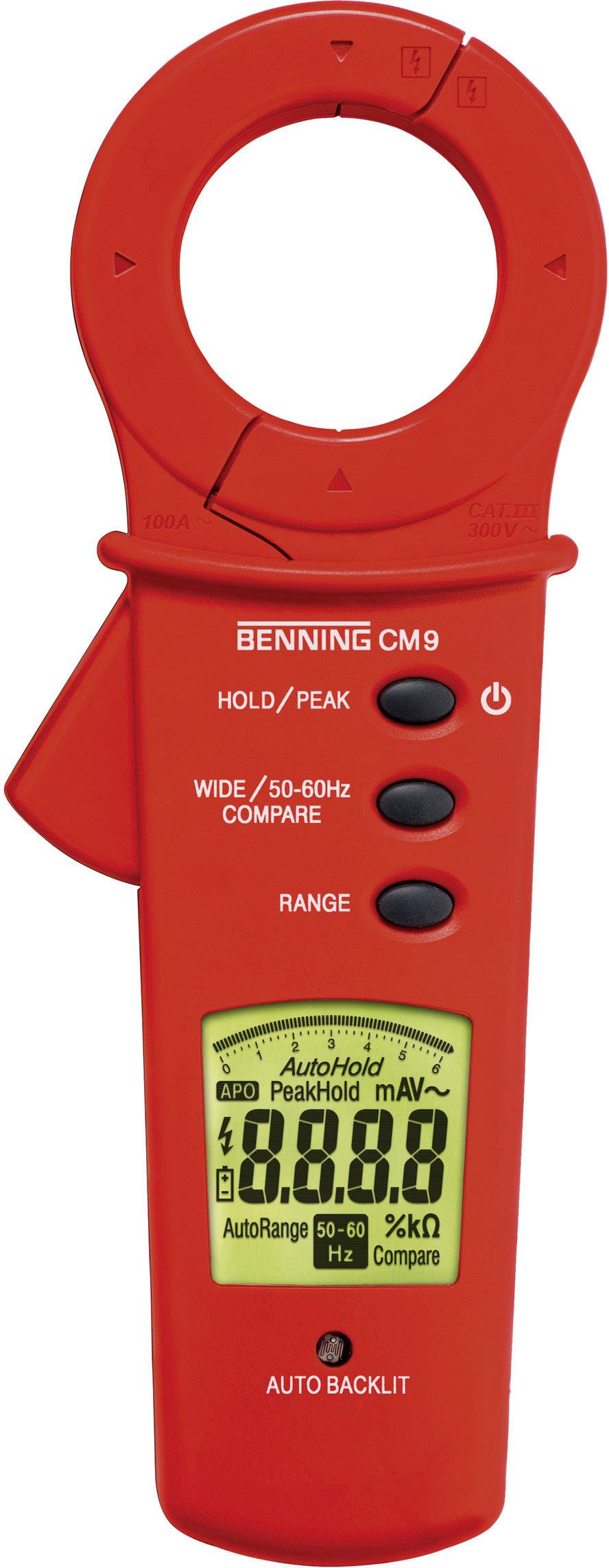

Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000-0

Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000-1

Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000-2

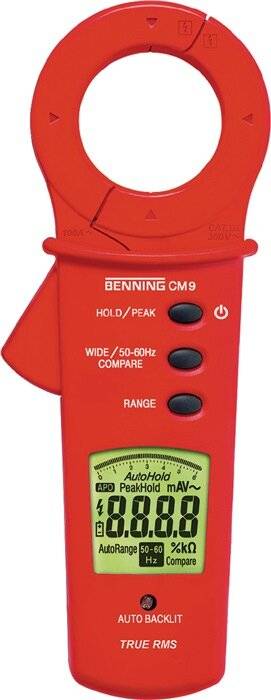

Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000-3

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 559.00 / piece)

€ 559.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Leakage current gripper CM 9

Measurement of leakage and differential currents
Highest release of 1 µA in 6 mA Measuring range

Technical specifications

Product type: Clamp meter

A AC reading range (min.): 1 µA

Amperage reading range AC (max.): 100 A

Reading range - resistance: -

Reading range - capacity: -

Frequency reading range: -

Temperature: -

Basic accuracy: 1 %

Measurement type (details): Average

Frequency range: 50/60 Hz

Interfaces: none

Power supply (details): 2 x AAA

Height: 275 mm

Width: 86 mm

Weight: 534 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 300 V

Current reading: AC

Type: CM 9

Display: Digital

Display (counts): 6000

Dim: (W x H) 86 mm x 275 mm

Opening range of current clamps: 40 mm

Basic accuracy: 1 %

Displays: 6000 counts

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 125281 Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000

Information

Information 125281 Benning CM 9 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 6000

Description

Depending upon error, leakage currents are caused by weak insulation or damages With the CM 9, all sources of error can be quickly and precisely located Possible damages can be avoided before by preventive measurements by uncontrolled flowing leakage currents Measurement of leakage and differential current in electrical system and devices. The measurement can be done during the normal mode without disconnection of the system/device
