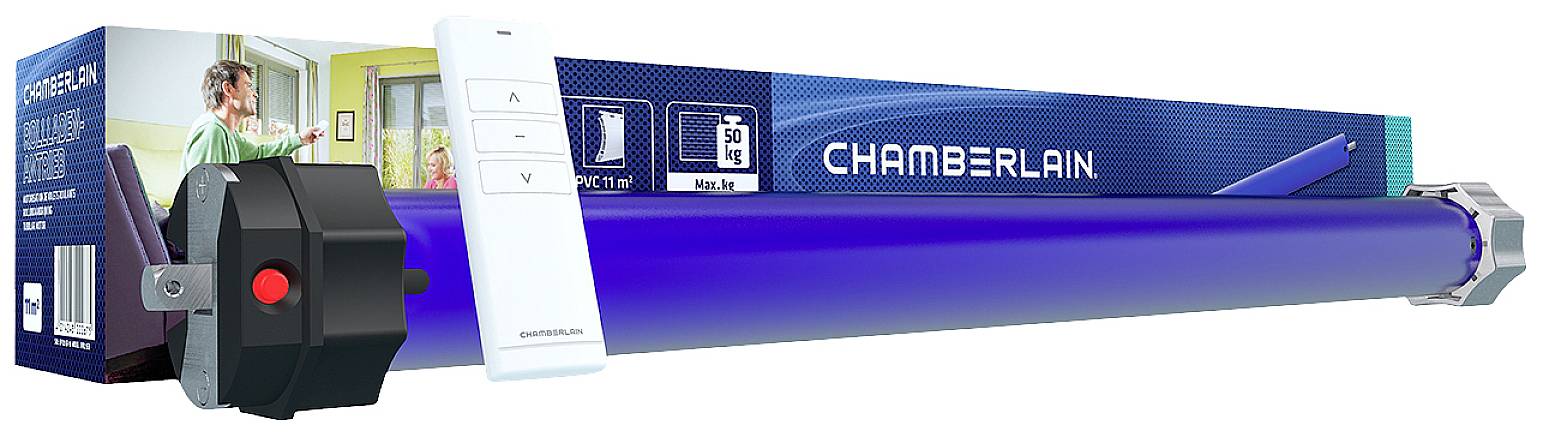

Chamberlain RPD25ER-10 Wireless tubular motor set 60 mm 50 kg 275 W 25 Nm
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
Wireless tubular motor set Chamberlain RPD25ER-10 25 Nm
- Max. Shutter surface (PVC) 11 m²Max. Shutter surface (ALU) 9 m²Max. Shutter surface (wood) 5 m²
Technical specifications
- Product type
Wireless tubular motor set
- Suitable for shutter axle Ø
60 mm
- Motor power
275 W
- Dim
(Ø x H) 45 mm x 45 mm
- Weight
2.8 kg
- Rotational speed
12 U/min
- Length
583 mm
- Tensile force (max.)
50 kg
- Obstacle detection
Yes
- Operating voltage
230 V
- Width
45 mm
- Height
45 mm
- (Ø)
45 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Torque
25 Nm
- Features
incl. 1 remote control
- Lead length
1.8 m
- Factory colour
Blue
- Power consumption
235 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2587774 Chamberlain RPD25ER-10 Wireless tubular motor set 60 mm 50 kg 275 W 25 Nm
Description
Radio-controlled roller shutter drive with a traction force of 25 Nm suitable for shutters weighing up to 50 kg.
This text is machine translated.
This text is machine translated.
Features
- For octagonal shaft 60 mm ØSets the end points with the supplied 1-channel hand-held transmitterAutomatic obstacle detection.
Scope of delivery
- Incl. 1 hand-held transmitter 1-channel
- 1.8 m connecting cable.
