Eberle 111 1707 51 100 RTR-E 6724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Only 5 Piece(s) available
Highlights & Details

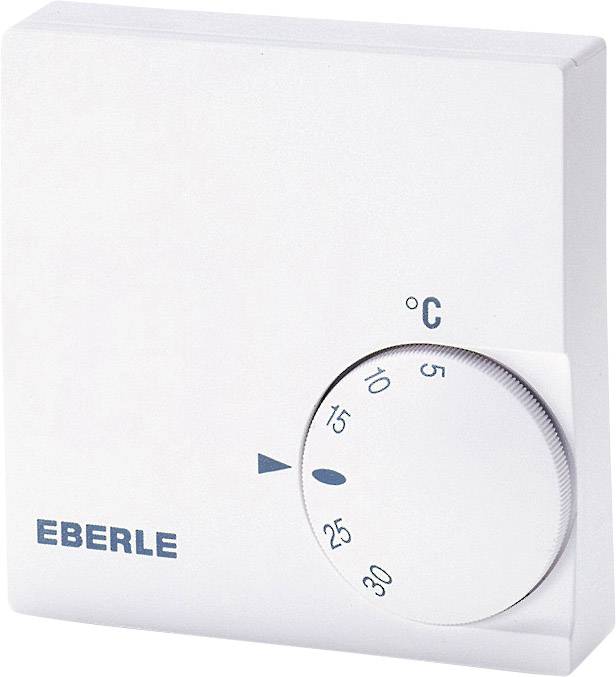

Eberle RTR-E 6724, room temperature controller
- Room regulator5 - 30 C.AC 230 V.1 We10/5 AWith TA
Technical specifications
- Contact: changer
- Switching current heating: 10 mA... 10 (4) A, DC 30 W
- Switching current (cooling): 10 mA... 5 (2) A, DC 30 W
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Surface-mount
- Operating voltage
230 V
- Hysteresis
0.5 K
- Nighttime drop
Yes
- Factory colour
Pure white
- Similar RAL
9010
- Width
75 mm
- Height
25.5 mm
- Length
26 mm
IP30
- Dim
(L x W x H) 26 x 75 x 25.5 mm
- Type
Heating / cooling
- Weight
75 g
- Contact type
1 change-over
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1581873 Eberle 111 1707 51 100 RTR-E 6724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1581873 Eberle 111 1707 51 100 RTR-E 6724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
Conformity certificate
Conformity certificate 1581873 Eberle 111 1707 51 100 RTR-E 6724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
Description
Room regulators for wall mounting. Suitable for the regulation of central-, hot water floor-, electrical-, night storage heaters etc. Output for heating or cooling. Bimetal technology with thermal feedback and high precision. Temperature reduction possible via an external timer switch. Range can be limited as a heating cost brake with the setting knob. Surface mounting or directly on UP-socket with vertical mounting holes or snap-on mounting on DIN-rails.
This text is machine translated.
This text is machine translated.
Features
- Surface-mounting or directly on UP-socket with vertical mounting holes or snap-on mounting on DIN rail
- Range limitation in setting knob.
Scope of delivery
- ROOM TEMPERATURE REGULATOR User manual
