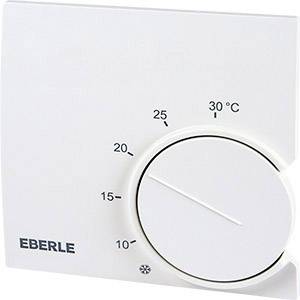

Eberle 121 1707 51 100 RTR 9724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Eberle RTR 9724, room temperature controller
- Room regulator5 - 30 C.AC 230 V.1 WeHeating: 10 mA … 10 (4) A.Cooling: 10 mA … 5 (2) A.Temperature reduction approx. 5K
Technical specifications
- Contact: changer
- Switching current heating: 10 mA... 10 (4) A, AC
- Switching current (cooling): 10 mA... 5 (2) A, AC
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Frost protection
Yes
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Surface-mount
- Power supply (LOV)
mains-powered (redundant)
- Operating voltage
230 V
- Hysteresis
0.5 K
- Nighttime drop
Yes
- Factory colour
Pure white
- Similar RAL
9016
- Width
84 mm
- Height
27.5 mm
- Length
28 mm
IP30
- Dim
(L x W x H) 28 x 84 x 27.5 mm
- Type
Heating / cooling
- Weight
88 g
- Contact type
1 change-over
- Min. temperature setting
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1581868 Eberle 121 1707 51 100 RTR 9724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1581868 Eberle 121 1707 51 100 RTR 9724 Indoor thermostat Surface-mount Heating / cooling 1 pc(s)
Description
Room regulators for wall mounting. Suitable for the regulation of central-, hot water floor-, electrical-, night storage heaters etc. Extremely reliable. Output for heating or cooling. Bimetal technology with thermal feedback and high precision. Range can be limited as a heating cost brake with the setting knob. Temperature reduction possible via an external timer switch. Housing color: Pure white, similar to RAL 9010. Surface mounting or directly on UP-socket with vertical mounting holes or snap-on mounting on DIN-rails.
This text is machine translated.
This text is machine translated.
Features
- Bi-metal technology with thermal feedback and high precision
- Surface-mounting or directly on UP-socket with vertical mounting holes
- Clear the terminal series and generous room for clamps for quick and easy installation
- Housing color pure white, similar to RAL 9010
- Range can be limited via adjusting knob
- Can be mounted on the adapter frame ERA1E.
Scope of delivery
- ROOM TEMPERATURE REGULATOR User manual
