Name: Emko ESM-3710-N Bang-bang Temperature controller PTC -50 up to 150 °C 16 A relay (L x W x H) 71 x 76 x 34.5 mm
Brand: Emko
SKU: 2589101
Price: 79.99 EUR
Availability: InStock

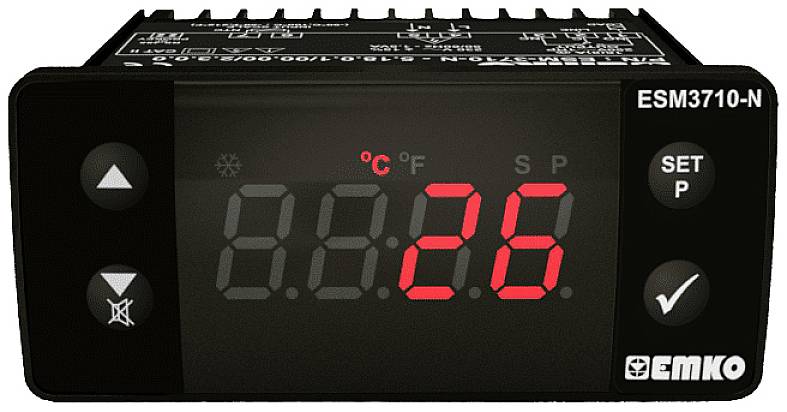

Digital temperature controller with display showing '26°C', black buttons for adjustment and mode selection, housed in a black casing.

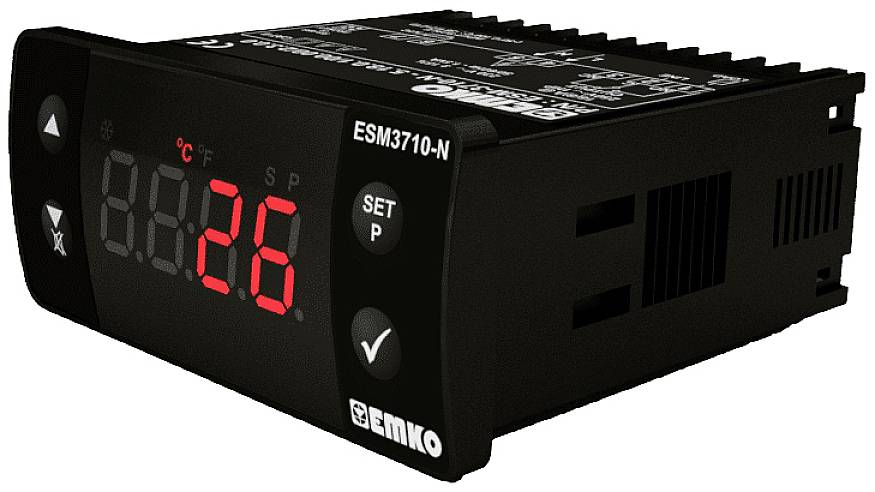

Digital temperature controller with LED display showing '26' degrees Celsius. Device buttons for adjustment located alongside.

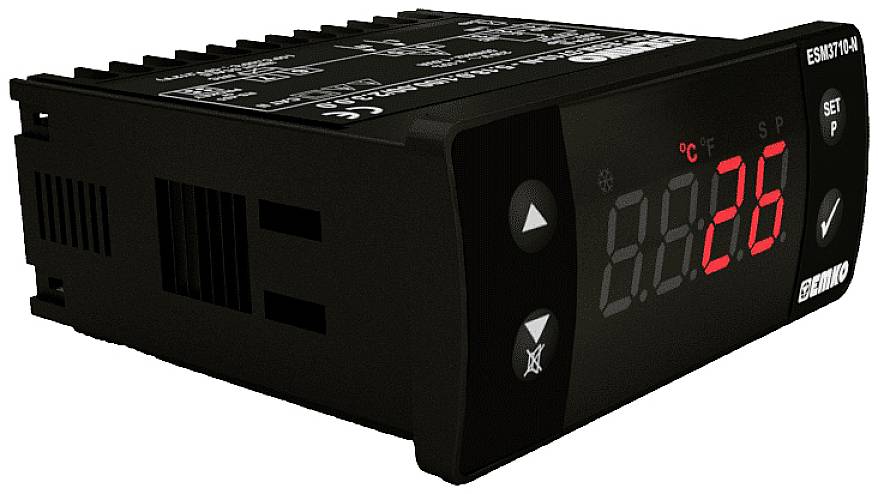

Digital temperature control device with LED display, showing '26°C'. Adjustment buttons on the front panel. Black casing.

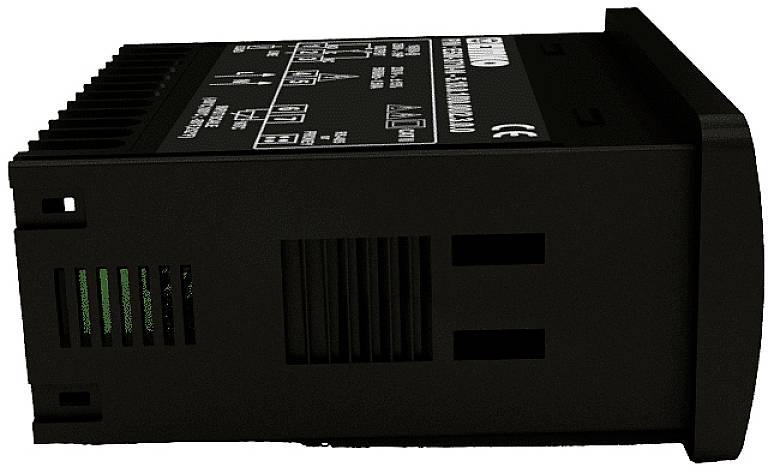

Black digital temperature controller with white labelling on the top surface, ventilation slots on the sides.

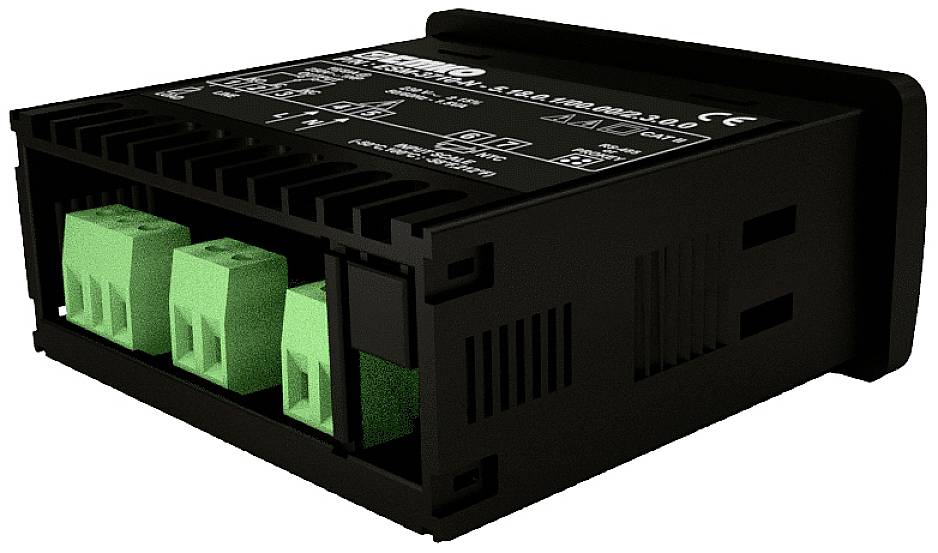

Black electrical device with green connectors, identified as a load control unit with various technical specifications on the top surface.

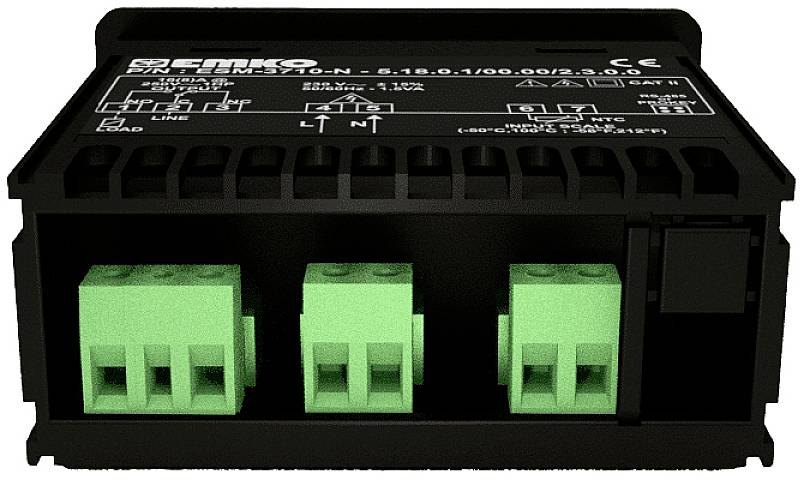

Black electronic device with green-marked ports. Symbols and technical details are visible at the top.

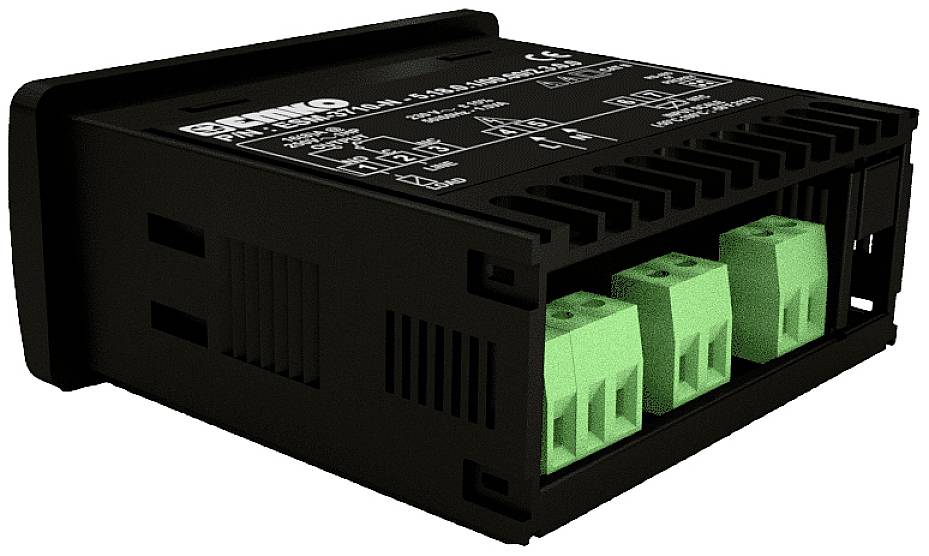

Black electronic box with green connection terminals at the front; technical diagrams and specifications visible on top.

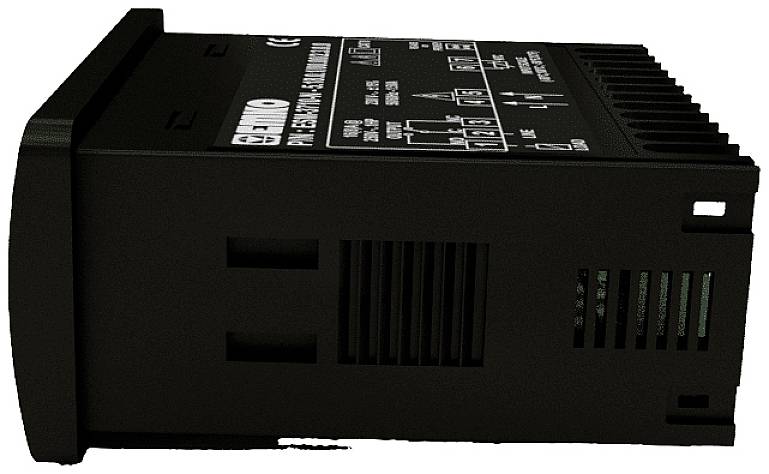

'Black electronic temperature controller with digital display and multiple setting options for temperature monitoring systems.'

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Operating voltage

24 V DC

24 V AC

Max. temperature reading

150 °C

Outputs (thermostats)

16 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Temperature controller with heating and cooling function

4-digit display2-point temperature controlHeating or cooling function can be selectedHysteresisAdjustable temperature offset valuesAdjustable minimum and maximum setpointsFunction can be set to on, off or cyclic in the event of a sensor failureCompressor protection through adjustable pause timesBuzzer if sensor defectivePassword protection for program settingsCan be extended with RS-485 MODULES RS485 Modbus RTU interfaceExpandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3710-N

Thermostat type: Bang-bang

Operating voltage: 24 V DC
24 V AC

Reading range: -50 up to 150 °C

Max. temperature reading: 150 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 1

Dim: (L x W x H) 71 x 76 x 34.5 mm

Factory colour: Black

Height: 34.5 mm

Length: 71 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: PTC

Manufacturer part #: ESM-3710-N.2.12.0.1/00.00/2.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Assembly dimensions: 34.5 x 76 mm

Sensor type: PTC

Weight: 200 g

Documents & Downloads

Datasheet

Datasheet 2589101 Emko ESM-3710-N Bang-bang Temperature controller PTC -50 up to 150 °C 16 A relay (L x W x H) 71 x 76 x 34.5 mm

User & Safety Instructions

User & Safety Instructions 2589101 Emko ESM-3710-N Bang-bang Temperature controller PTC -50 up to 150 °C 16 A relay (L x W x H) 71 x 76 x 34.5 mm

Description

Emko ESM-3710-N is a 2-point temperature controller for control panel installation. With adjustable temperature setpoint, the controller is used for heating or cooling applications. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
