Name: Emko ESM-4950 Bang-bang, P, PI, PD, PID Universal controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 86.5 x 48 x
Brand: Emko
SKU: 2589111
Price: 164.99 EUR
Availability: SoldOut

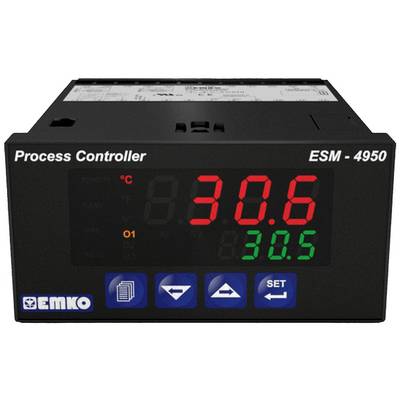

Emko ESM-4950 Bang-bang, P, PI, PD, PID Universal controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 86.5 x 48 x-0

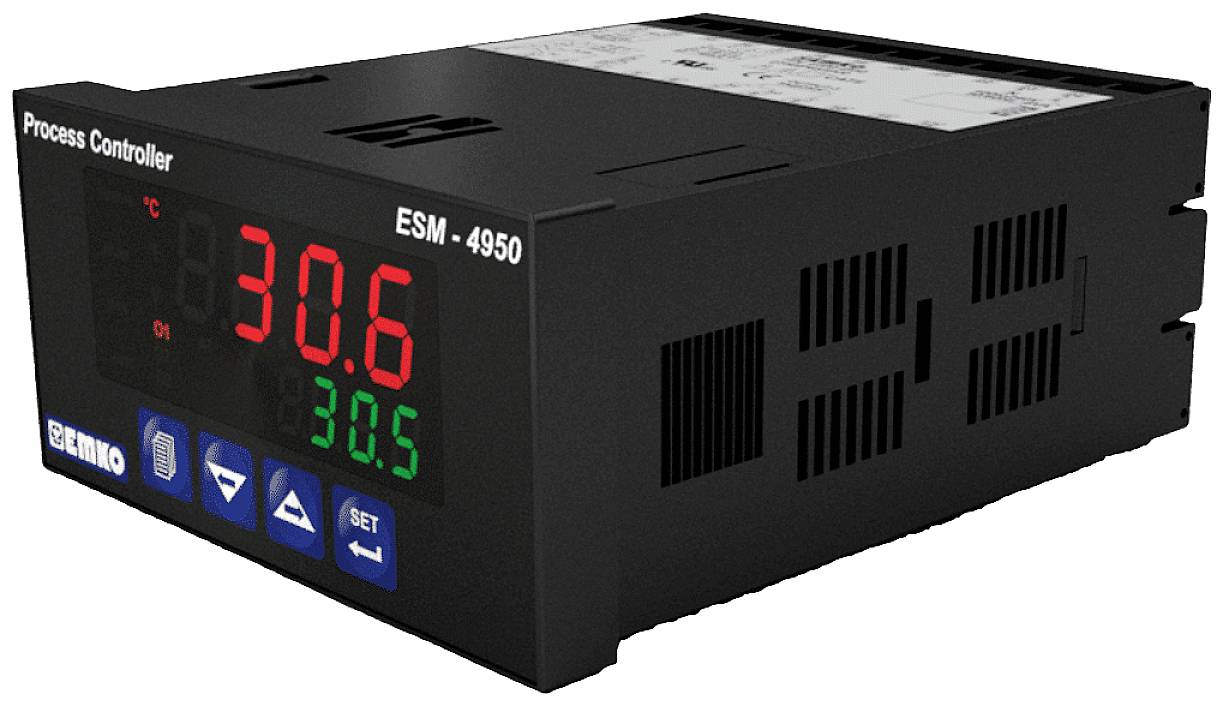

Electronic process controller ESM-4950 with red and green digital display of temperature values 30.6°C and 30.5°C.

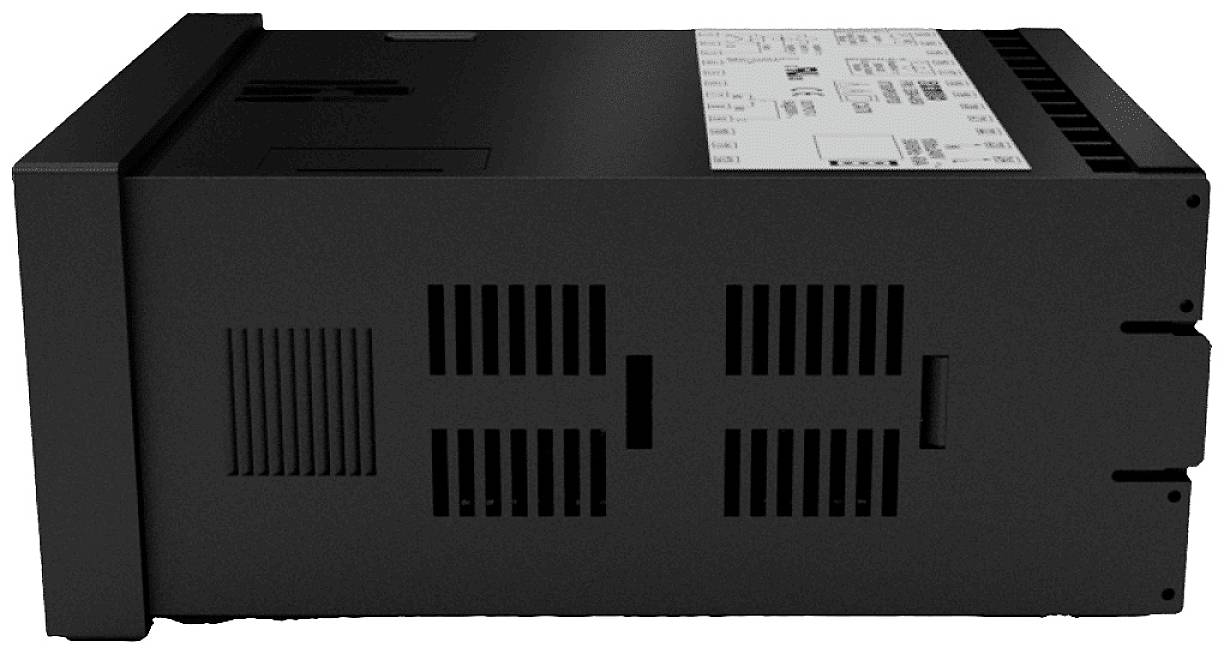

Black electronic device with multiple ventilation slots on the side, suitable for use in industrial environments.

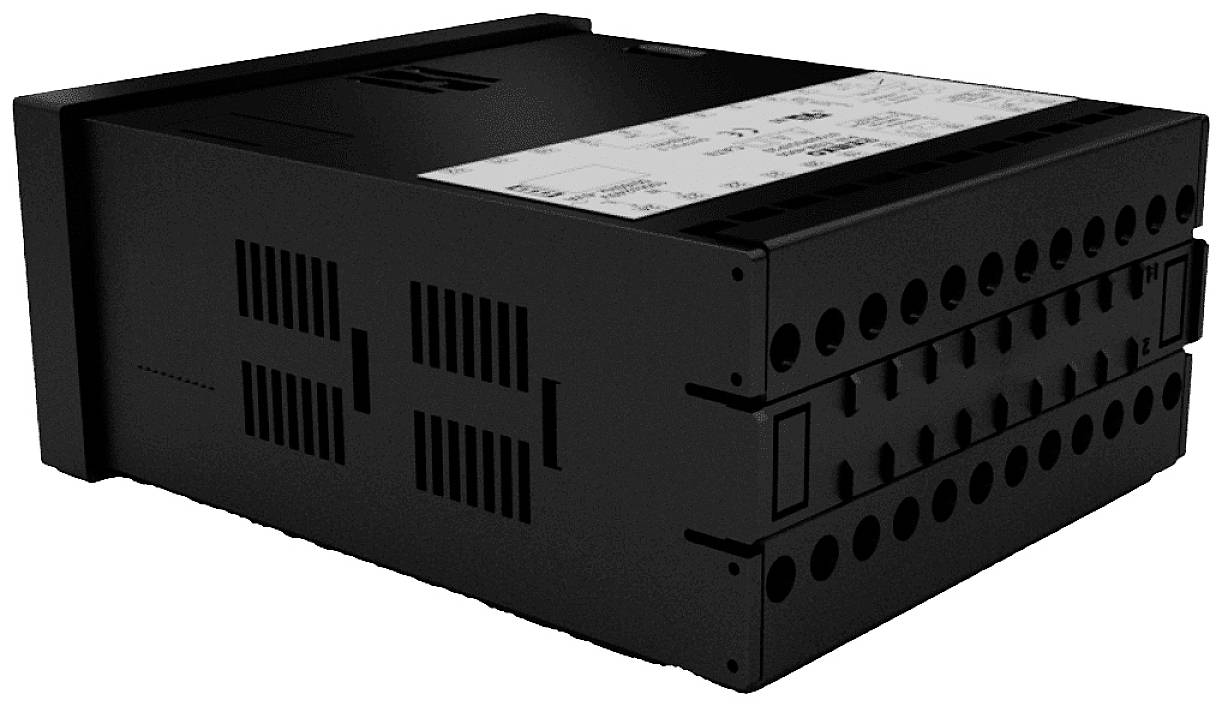

A black electronic switchboard with multiple connections and a control panel on the top surface, designed for connection to a system.

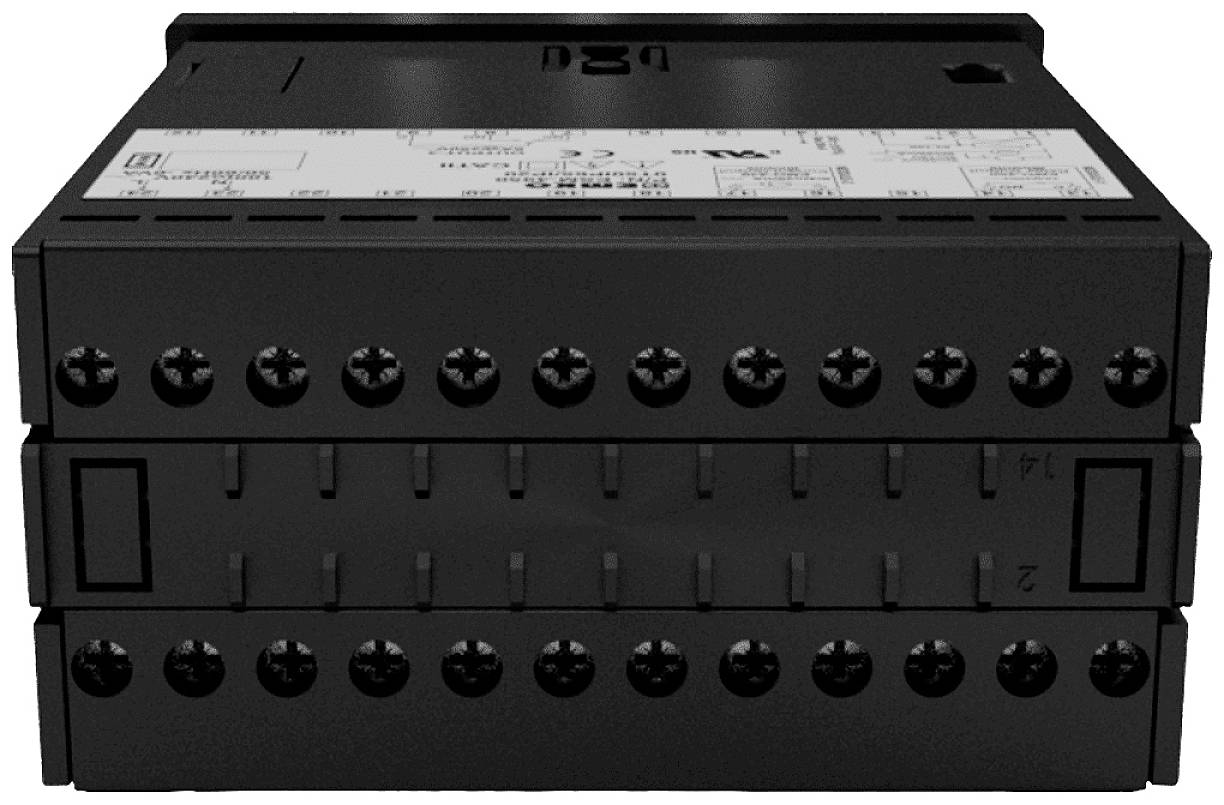

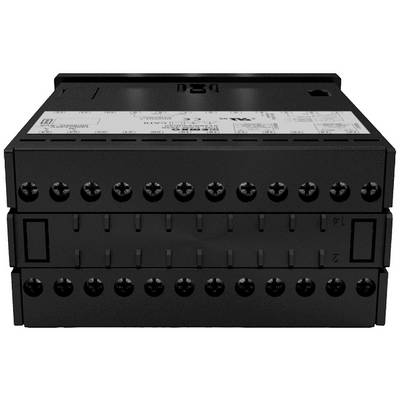

Electrical relay module with multiple screw terminals, suitable for mounting in control cabinets. Top side displays technical specifications.

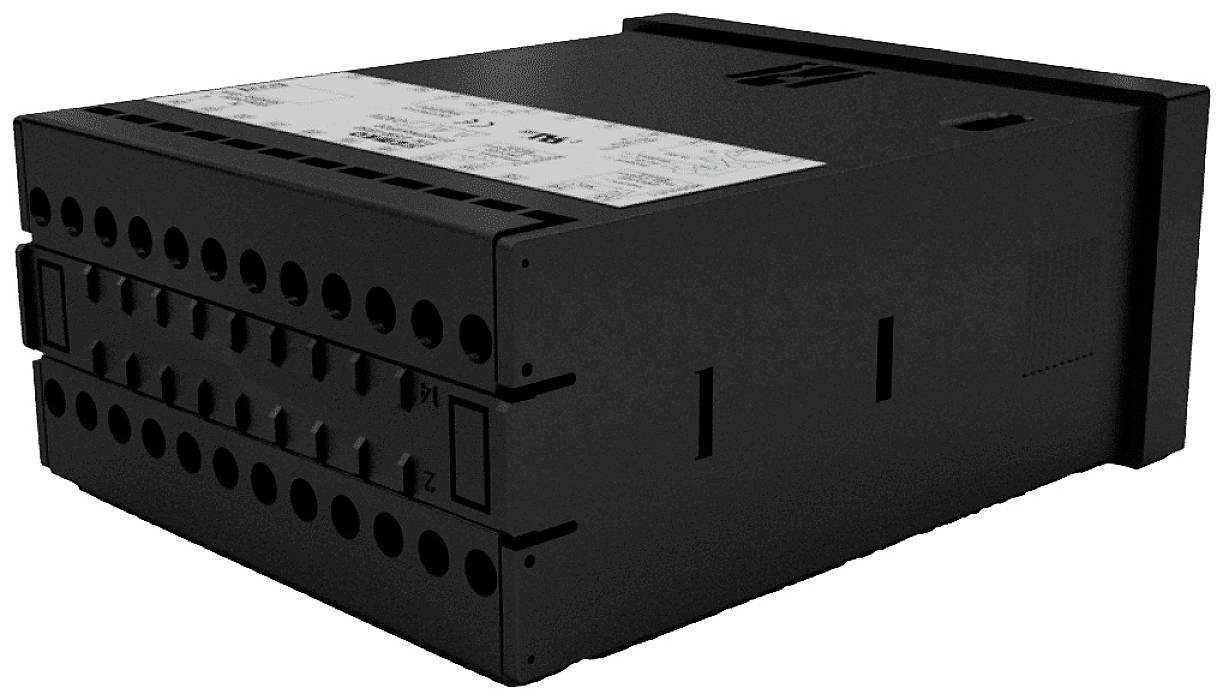

A black, rectangular electronic control box with multiple ports on the front panel.

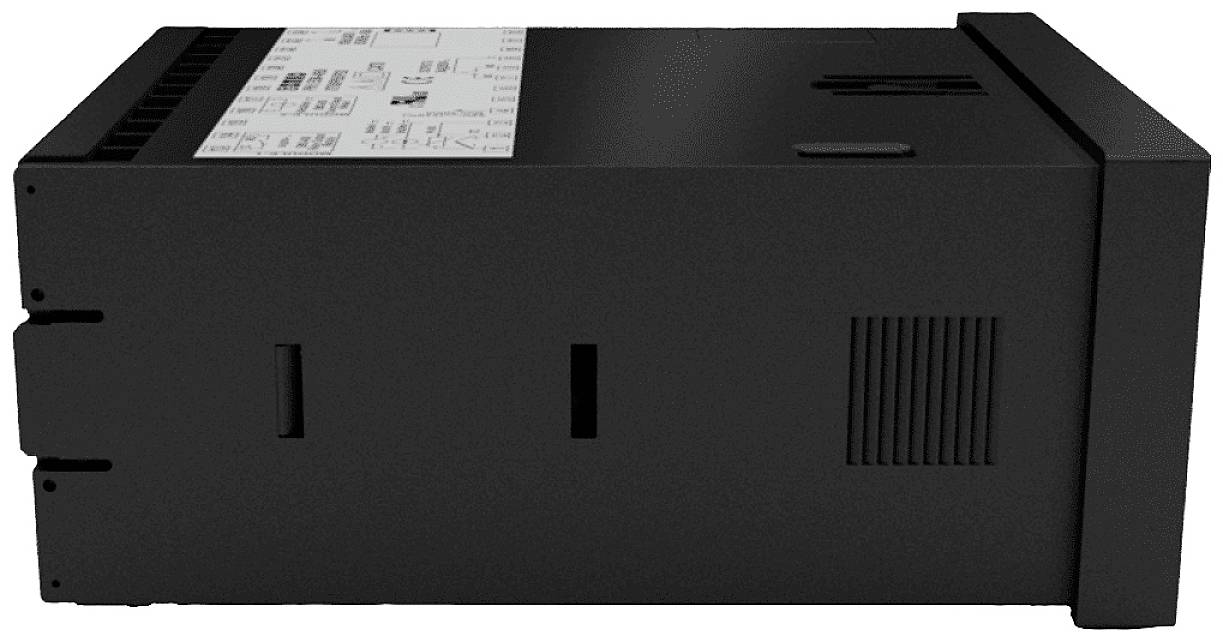

Black electronic device with ventilation slots and label on the top surface. Possibly an industrial control unit.

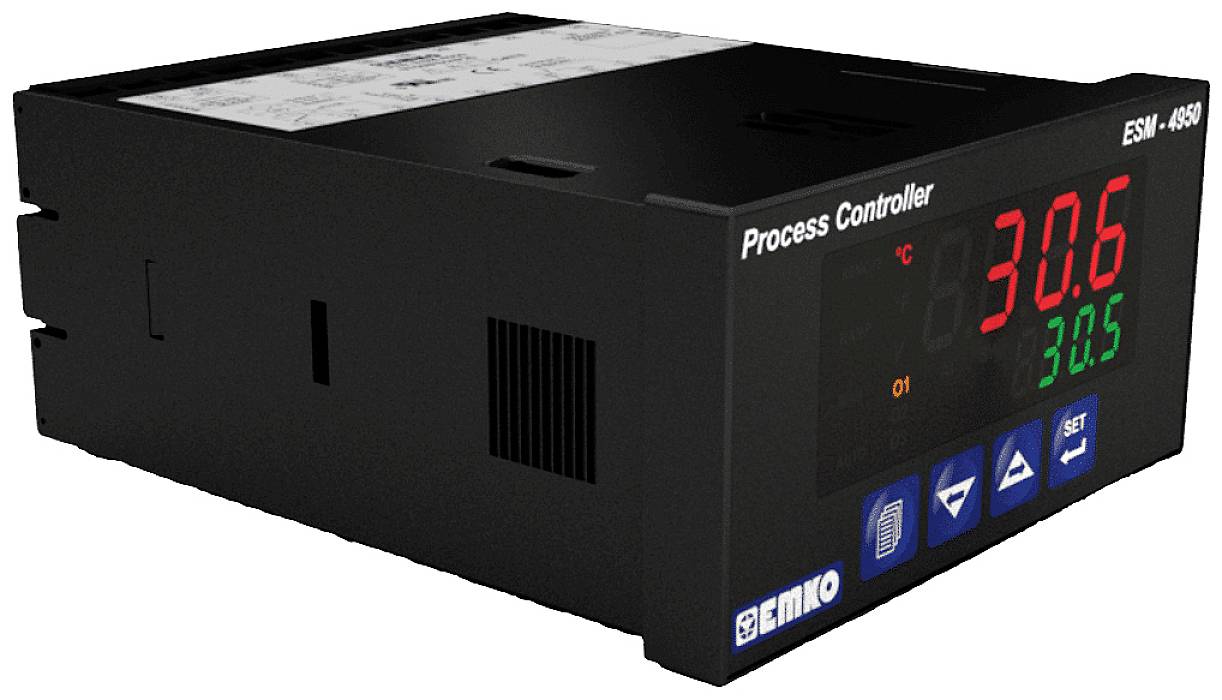

A digital process controller displays a temperature of 30.6 °C. The device has buttons for setting and operational indication.

1/8

Product type

Universal controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

24 V AC

24 V DC

Max. temperature reading

+1700 °C

Outputs (thermostats)

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PID process controller with universal input, 1 relay output, 2 slots for I/O expansion cards and communication interface

4-digit process display4-digit setpoint displayUniversal measuring input for Pt100, J, K, R, S, T, 0-50mV, 0-10V, 0/4-20 mA2-point, P, PI, PD or PID controlPID self-optimization functionTwo-point or multi-point calibration Analogue signals8-step sequential control when using the EMI-400 digital input plug-inSoft start-up.Engine valve controlAlarm valuesHysteresisOffset valuesRelay outputPassword protection for program settingsCommunication interface2 slots for EMI-400 and EMO-400 series I/O expansion modules

Technical specifications

Product type: Universal controller

Type: ESM-4950

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 24 V AC
24 V DC

Reading range: -200 up to +1700 °C

Max. temperature reading: +1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay

No. of relay outputs: 1

Dim: (L x W x H) 86.5 x 48 x 96 mm

Factory colour: Black

Height: 96 mm

Length: 86.5 mm

Width: 48 mm

: IP65 (on front)/IP20 (on back)

Sensor type: Pt100

Manufacturer part #: ESM-4950.2.20.1.1/00.00/0.0.0.0

Mounting type: Recess-mount

Interfaces: RS-232

Sensor type: Pt100

Weight: 260 g

Documents & Downloads

Datasheet

Datasheet 2589111 Emko ESM-4950 Bang-bang, P, PI, PD, PID Universal controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 86.5 x 48 x

User & Safety Instructions

User & Safety Instructions 2589111 Emko ESM-4950 Bang-bang, P, PI, PD, PID Universal controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 86.5 x 48 x

Description

ESM-4950 is a universal controller for process control. The controller can be set to 2-point, P, PI, PD or PID control. In addition, the controller has a PID self-optimization function, can be set to Auto-Tune (cycle limitation) or Self-Tune (step feedback). Other functions are 8-step sequential control when using the EMI-400 digital input, soft start-up and motor valve control add-on module. In the basic version, the controller has a universal input for temperature sensors and analogue signal, communication interface and a relay output. The controller can be expanded with I/O modules via two slots. The EMI-400 input modules are available in digital input, 0/4-20 mA or 0-10 V/DC analogue input, thermocouple, 0-5 A for current transformers and Pt100. The EMO-400 modules relay output, SSR output, transistor output and 0/4-20 mA analogue output are available as output modules.

This text is machine translated.
