Feed-through terminal block STS 2,5-TWIN RD 3037517 Phoenix Contact

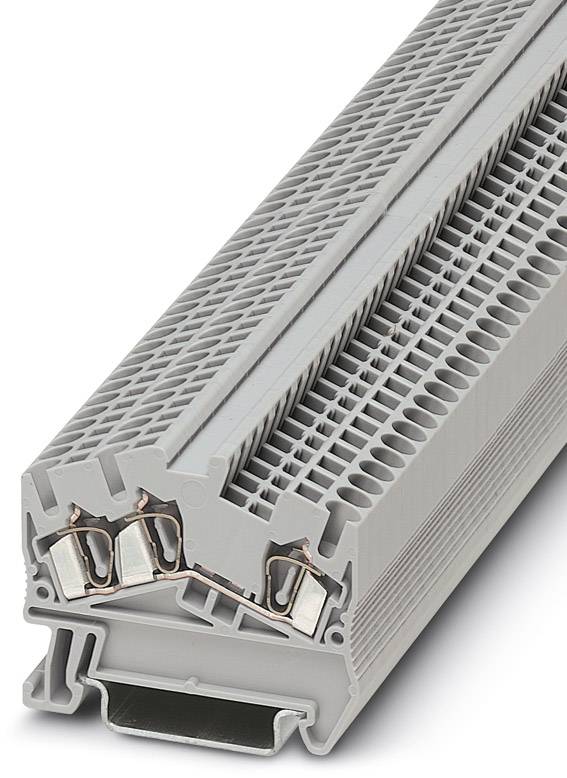

Close-up of a grey, industrial terminal block with multiple levels for electrical connections, with no visible cables.
Image similar
Packaging type
Piece
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1.60 / piece)
€ 79.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block STS 2,5-TWIN RD

  • STS 2,5-TWIN RD

Technical specifications

Packaging type

Piece

Product type

Continuity

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5.2 mm

No. of rows

1

Number of pins

3

Factory colour

Red

Nominal current

24 A

Nominal current - rounded value

24 A

Nominal voltage

800 V

Stripping length (max.)

10 mm

Manufacturer part #

3037517

Content

50 pc(s)

Industrial packaging

Yes

Type

STS 2,5-TWIN RD

Dim

(L x W x H) 50.8 x 5.2 x 43 mm

Width

5.2 mm

Height

43 mm

Length

50.8 mm

Flammability rating

V0

Connector colour

Red

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 718149 Feed-through terminal block STS 2,5-TWIN RD 3037517 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 718149 Feed-through terminal block STS 2,5-TWIN RD 3037517 Phoenix Contact

Description

Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Color: red, Mounting type: NS 35/7,5, NS 35/15

Hints

Special order, no right of withdrawal.
