Feed-through terminal block STU 35/ 4X10 BU 3033210 Phoenix Contact

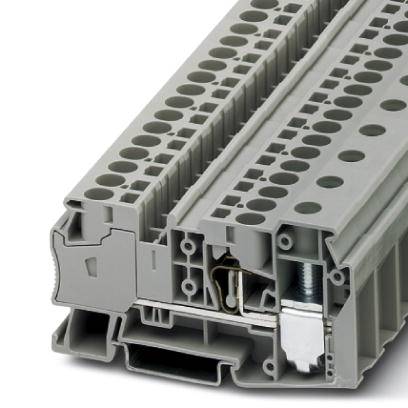

Terminal block with grey plastic housing, side-mounted screw and multiple connection points. Suitable for electronic or switching applications.
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
19 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 25 pc(s))
Total (€ 19.96 / piece)
€ 499.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

10 mm²

AWG (min.)

24

AWG max.

8

Clamp width

16.2 mm

No. of rows

1

Number of pins

5

Factory colour

Blue

Nominal current

41 A

Nominal current - rounded value

41 A

Nominal voltage

1000 V

Stripping length (max.)

12 mm

Manufacturer part #

3033210

Content

25 pc(s)

Industrial packaging

Yes

Type

STU 35/ 4X10 BU

Dim

(L x W x H) 86 x 16.2 x 46.8 mm

Width

16.2 mm

Height

46.8 mm

Length

86 mm

Flammability rating

V0

Connector colour

Blue

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 718050 Feed-through terminal block STU 35/ 4X10 BU 3033210 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 718050 Feed-through terminal block STU 35/ 4X10 BU 3033210 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 50 mm², AWG: 16 - 1/0, Width: 16.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
