Image similar

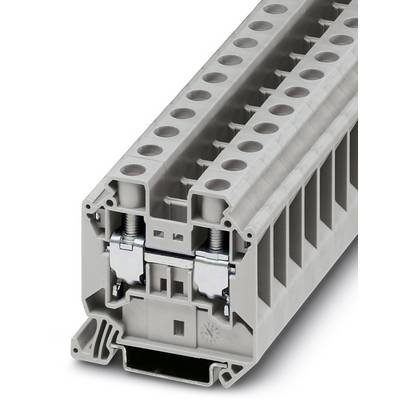

Feed-through terminal block UT 16 3044199 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 2.90 / piece)
€ 144.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
16
- AWG max.
4
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Stripping length (max.)
14 mm
- Manufacturer part #
3044199
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 16
- Dim
(L x W x H) 55.5 x 12.2 x 54.4 mm
- Width
12.2 mm
- Height
54.4 mm
- Length
55.5 mm
- Contamination level
3
- Weight
0.0300 kg
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565878 Feed-through terminal block UT 16 3044199 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565878 Feed-through terminal block UT 16 3044199 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 25 mm², AWG: 16 - 4, Width: 12.2 mm, Height: 54.4 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
