Name: Feed-through terminal block UT 10 RD 3046304 Phoenix Contact
Brand: Phoenix Contact
SKU: 565863
Availability: BackOrder

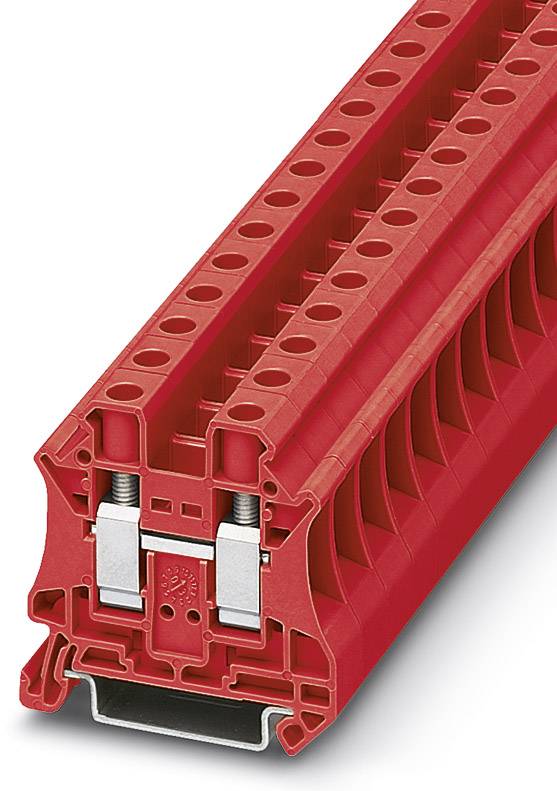

A red terminal block adapter with multiple connection options and mounting elements, used in electrical control panels.

Image similar

Packaging type

Piece

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (max.)

16 mm²

Cross section (inflexible) (max.)

16 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.40 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Feed-through terminal block UT 10 RD

UT 10 RD

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 16 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 20

AWG max.: 6

Clamp width: 10.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Red

Nominal current: 57 A

Nominal current - rounded value: 57 A

Nominal voltage: 1000 V

Stripping length (max.): 10 mm

Manufacturer part #: 3046304

Content: 50 pc(s)

Industrial packaging: Yes

Type: UT 10 RD

Dim: (L x W x H) 47.7 x 10.2 x 47.5 mm

Width: 10.2 mm

Height: 47.5 mm

Length: 47.7 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Red

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 565863 Feed-through terminal block UT 10 RD 3046304 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565863 Feed-through terminal block UT 10 RD 3046304 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Color: red, Mounting type: NS 35/7,5, NS 35/15

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Color: red, Mounting type: NS 35/7,5, NS 35/15
