Buy Fristom Strobe light FT-200 LED 95200 12 V, 24 V, 36 V via in-car outlet Recess-mount Orange

Two rectangular LED lights with transparent housing and orange elements, used for illumination in vehicles.

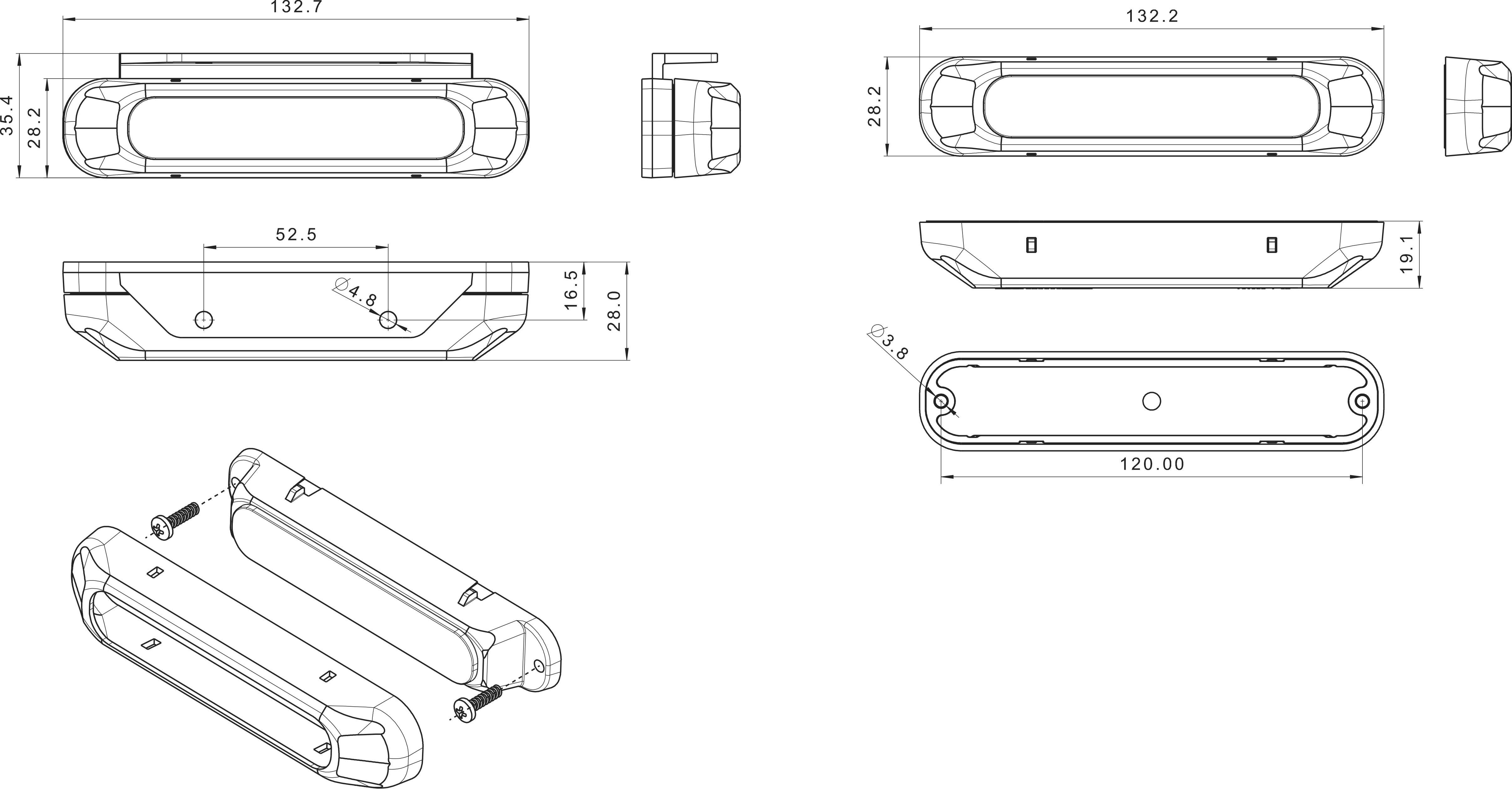

Technical drawing of a rectangular device with dimensions in millimetres. Shows front, side, and top views.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

44 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 39.49 / piece)

€ 39.49

plus VAT.

Report legal concerns

Highlights & Details

LED front flash FT-200

Very small LED light
6 Osram LED
6 light programs
Synchronsierbar

Technical specifications

Dim: (W x H x D) 120 x 28 x 20 mm

Product type: Strobe light

Connector: Open cable ends

Certificate: ECE R65 - XA1 E9

Fastening method: Recess-mount

Illumination colours: Orange

Operating voltage: 12 V
24 V
36 V

Factory colour: Acrylic glass (clear)

Weight: 138 g

Content: 1 pc(s)

Width: 120 mm

Height: 28 mm

Features: 6 flashing speeds
Synchronizable

Power supply (LOV): via in-car outlet

Bulb type: LED (monochrome)

Depth: 20 mm

Documents & Downloads

Datasheet

Datasheet 1780545 Fristom Strobe light FT-200 LED 95200 12 V, 24 V, 36 V via in-car outlet Recess-mount Orange

User & Safety Instructions

User & Safety Instructions 1780545 Fristom Strobe light FT-200 LED 95200 12 V, 24 V, 36 V via in-car outlet Recess-mount Orange

eNum certificate

eNum certificate 1780545 Fristom Strobe light FT-200 LED 95200 12 V, 24 V, 36 V via in-car outlet Recess-mount Orange

Description

The new LED-warning light was with 6 very efficient Osram diodes. Due to the implementation of the double lens system generates the lamp focussed light. The light signal is in all weather conditions in both the night as well as during the day, it is easy to recognize. The main objective of the LED-warning light is due mainly to the improvement of road safety. The lamp is equipped with 6 different flash programs. The very small lamp housing is impact-resistant and with protection class IP68.

The flashing frequencies can (optionally available) during the operation of a button can be changed.

This text is machine translated.
