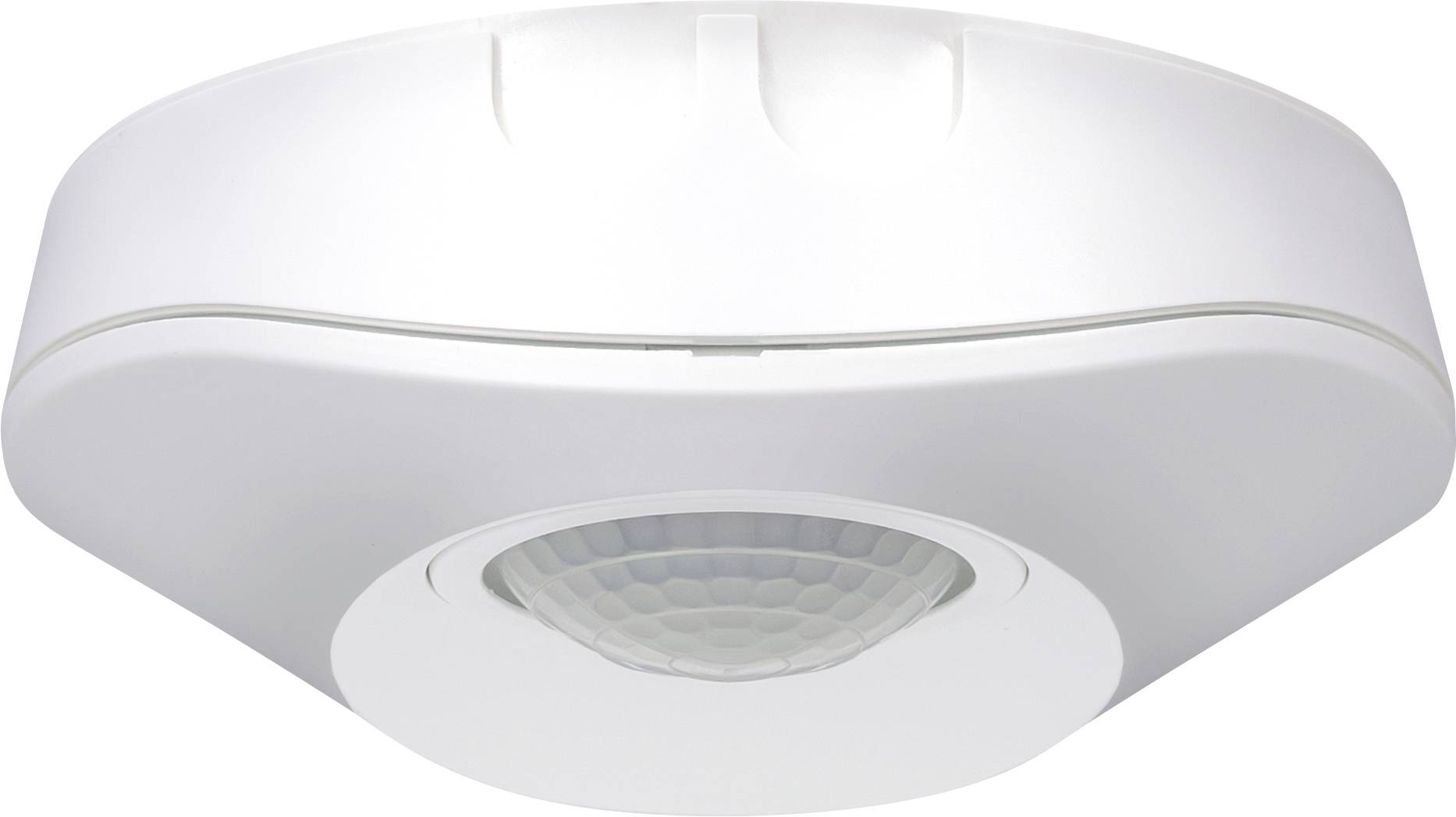

Grothe 94500 Surface-mount PIR motion detector 360 ° Relay White IP40
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 68.90
-22 %
€ 53.77
plus VAT.
Highlights & Details
Ceiling-mounted motion switch 360°
- Range 6 m max.
- Switches up to 2300 W
- IP40
Technical specifications
- Product type
PIR motion detector
- Detection angle
360°
6 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity (light bulbs)
2300 W
- Switching capacity (halogen bulbs)
1000 W
- Switching capacity (light tubes)
400 W
- Standby current consumption
1.6 W
- Twilight settings
5 - 1000 lx
- Time settings
T1: 6 seconds - 12 minutes
T2 10 seconds - 30 min
- Factory colour
White
- Similar RAL
9003
IP40
- Type
Wall-mounted
- Height
39 mm
- (Ø)
113 mm
- Dim
(Ø x H) 113 mm x 39 mm
- Weight
300 g
- Detection angle
360°
- Switch contact
Relays
- Operating voltage
230 V/50 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 611767 Grothe 94500 Surface-mount PIR motion detector 360 ° Relay White IP40
Description
The plug-in terminal technology offers increased installation comfort. The base plate is easily mounted on the ceiling, and wired, the connection with the motion switch casing is provided by plug-in terminals. As well as lighting connections, brightness-independent devices such as heating, ventilation, air conditioning and alarm applications can be connected using a floating contact.
Features
- 2 outputs: 1 x non-isolated, 1 x isolated.
