Name: Grothe 94506 Surface-mount, Ceiling, Recess-mount PIR motion detector 360 ° Relay White IP20
Brand: Grothe
SKU: 1560098
Availability: InStock

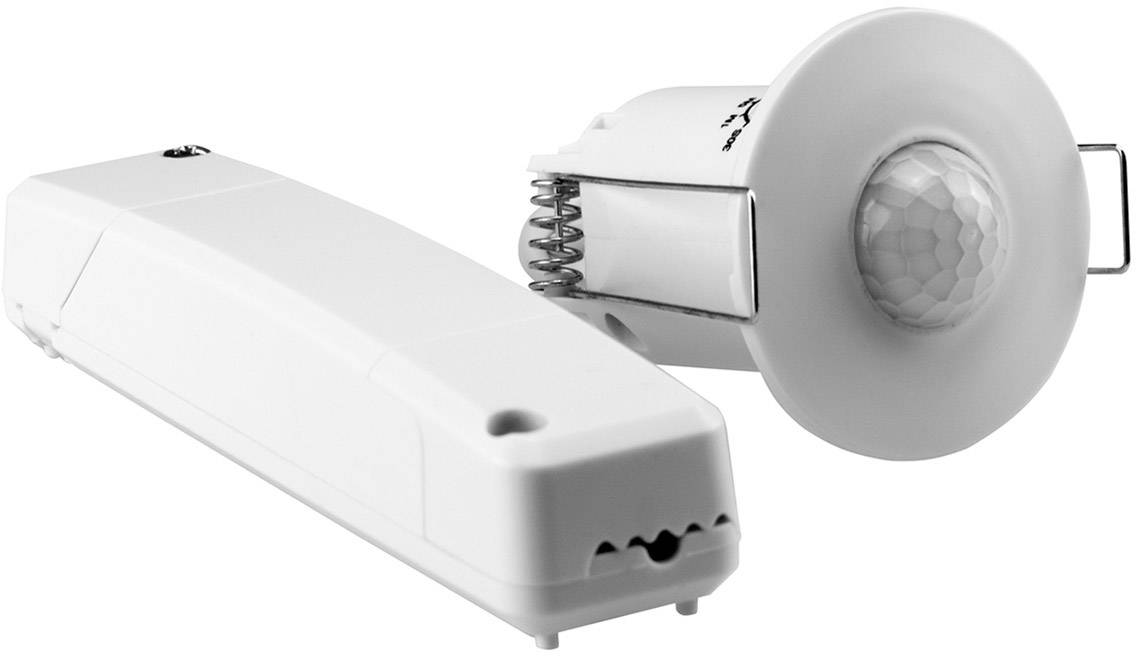

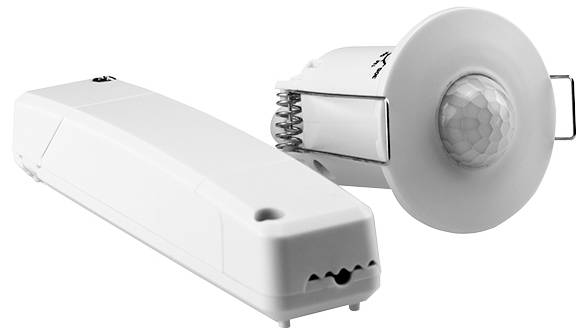

White rectangular PIR motion sensor and separate round detector component on a plain background.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 45.99 / piece)

€ 45.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Motion detector installation/ceiling

Timer and brightness can be set
Ceiling-mounted Bewegunsgmelder
Detection 360 degree 8 m at H = 2.5 m

Technical specifications

Dimensions 130 x 25 x 28 mm power box:

Product type: PIR motion detector

Detection angle: 360°

: 8 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Ceiling
Recess-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity (energy saving bulbs): max. 500 W

Switching capacity (light bulbs): max. 2000 W

Switching capacity (halogen bulbs): 230 VAC max. 1000 W

Switching capacity (LED): max. 500 W

Switching capacity (light tubes): max. 500 VA

Twilight settings: 5–1000 lx

Time settings: 30 s - 30 Min.

Factory colour: White

: IP20

Operating temperature: -20°C to +40°C

Type: Ceiling-mounted motion detector

Height: 55 mm

(Ø): 50 mm

Dim: (Ø x H) 50 mm x 55 mm

Weight: 160 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1560098 Grothe 94506 Surface-mount, Ceiling, Recess-mount PIR motion detector 360 ° Relay White IP20

Description

The McGuard is a ceiling-mounted motion detector. It is an ideal way in rooms such as offices, apartments, corridors and stairwells. The elegant shapely casing with built-in lens and invisible buttons to prevent the illegal adjusting the settings. Superior lenses patterns and well distributed and concentrated detection beams provide a high sensitivity.
The McGuard family is now in 7 different model series, each one on its territory specialized and functional tuned to each other. The devices combine the grothe reliability in the daily use with a high use installation-friendliness and ease of use.

This text is machine translated.
