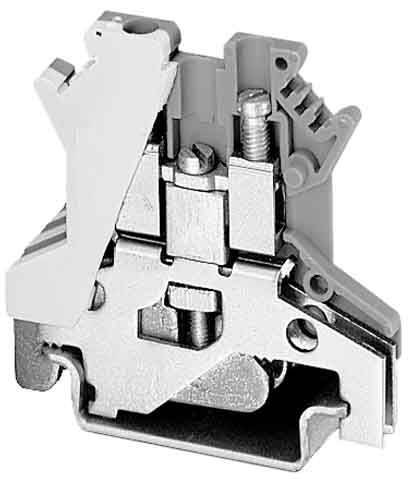

Image similar
Ground modular terminal block USLKG 16-1 0448015 Phoenix Contact
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 15.18 / piece)
€ 759.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Triple port PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
11 mm
- Manufacturer part #
0448015
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USLKG16-1
- Dim
(L x W x H) 42.5 x 10.2 x 54 mm
- Width
10.2 mm
- Height
54 mm
- Length
42.5 mm
- Flammability rating
V2
- Connector colour
Green
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565036 Ground modular terminal block USLKG 16-1 0448015 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565036 Ground modular terminal block USLKG 16-1 0448015 Phoenix Contact
Description
Ground terminal block with screw connection, cross section: 0.5 - 10 mm², AWG: 20 - 6, width: 10.2 mm, color: green-yellow
