Name: Ground modular terminal block USLKG 35-1 0449014 Phoenix Contact
Brand: Phoenix Contact
SKU: 565037
Availability: SoldOut

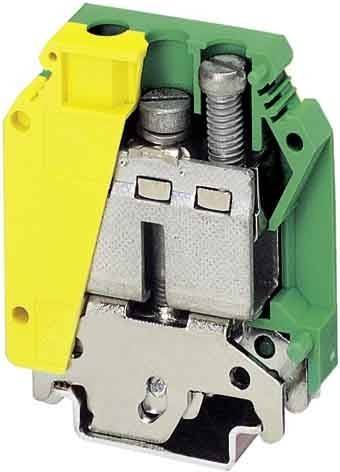

Green and yellow terminal block on mounting rail for electrical wiring. Visible screw connection.

Image similar

Product type

Triple port PG terminal

Connection

Screws

Cross section (flexible) (max.)

35 mm²

Cross section (inflexible) (max.)

50 mm²

Content

25 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 17.16 / piece)

€ 429.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ground modular terminal block USLKG 35-1

USLKG35-1

Technical specifications

Product type: Triple port PG terminal

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.75 mm²

Cross section (flexible) (max.): 35 mm²

Cross section (inflexible) (min.): 0.75 mm²

Cross section (inflexible) (max.): 50 mm²

AWG (min.): 18

AWG max.: 1

Clamp width: 15.2 mm

No. of rows: 1

Pins per row: 1

Number of pins: 2

Factory colour: Green
Yellow

Stripping length (max.): 15 mm

Manufacturer part #: 0449014

Content: 25 pc(s)

Industrial packaging: Yes

Type: USLKG35-1

Dim: (L x W x H) 50 x 15.2 x 62 mm

Width: 15.2 mm

Height: 62 mm

Length: 50 mm

Contamination level: 3

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 565037 Ground modular terminal block USLKG 35-1 0449014 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565037 Ground modular terminal block USLKG 35-1 0449014 Phoenix Contact

Description

Ground modular terminal block, Connection method: Screw connection, Load current : 150 A, Cross section: 0.75 mm² - 50 mm², AWG 18 - 2, Width: 15.2 mm, Color: green-yellow

Description

Ground modular terminal block, Connection method: Screw connection, Load current : 150 A, Cross section: 0.75 mm² - 50 mm², AWG 18 - 2, Width: 15.2 mm, Color: green-yellow
