Image similar

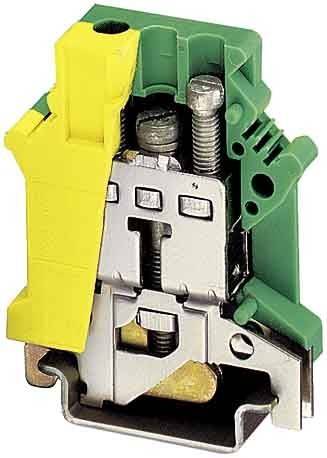

Ground modular terminal block USLKG 16 N-1 0443036 Phoenix Contact
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 9.58 / piece)
€ 479.00
incl. VAT
14-day return policy included
Highlights & Details
Ground modular terminal block USLKG 16 N-1
- USLKG16 N-1
Technical specifications
- Packaging type
Piece
- Product type
Triple port PG terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
4 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
12
- AWG max.
6
- Clamp width
12.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
11 mm
- Manufacturer part #
0443036
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USLKG16 N-1
- Dim
(L x W x H) 42.5 x 12.2 x 54 mm
- Width
12.2 mm
- Height
54 mm
- Length
42.5 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565033 Ground modular terminal block USLKG 16 N-1 0443036 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565033 Ground modular terminal block USLKG 16 N-1 0443036 Phoenix Contact
Description
Ground modular terminal block, Connection method: Screw connection, Cross section: 2.5 mm² - 25 mm², AWG: 12 - 4, Width: 12.2 mm, Color: green-yellow, Mounting type: NS 35/15-2,3
