Name: GW Instek AFG-2125 Mains-powered 0.1 Hz - 25 MHz 1-channel Triangle, Rectangle, Sinus
Brand: GW Instek
SKU: 2203459
Availability: BackOrder

A function generator with display and control buttons. Shows frequency settings and outputs. Device is grey with carrying handle.

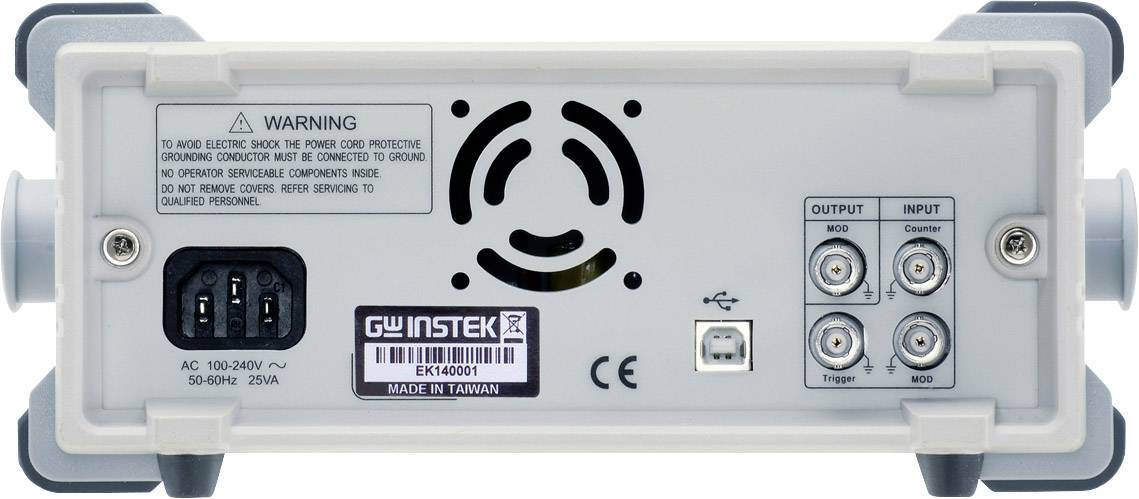

Back of device with power connection, fan, warning notice and four BNC sockets for inputs and outputs. Manufacturer's nameplate present.

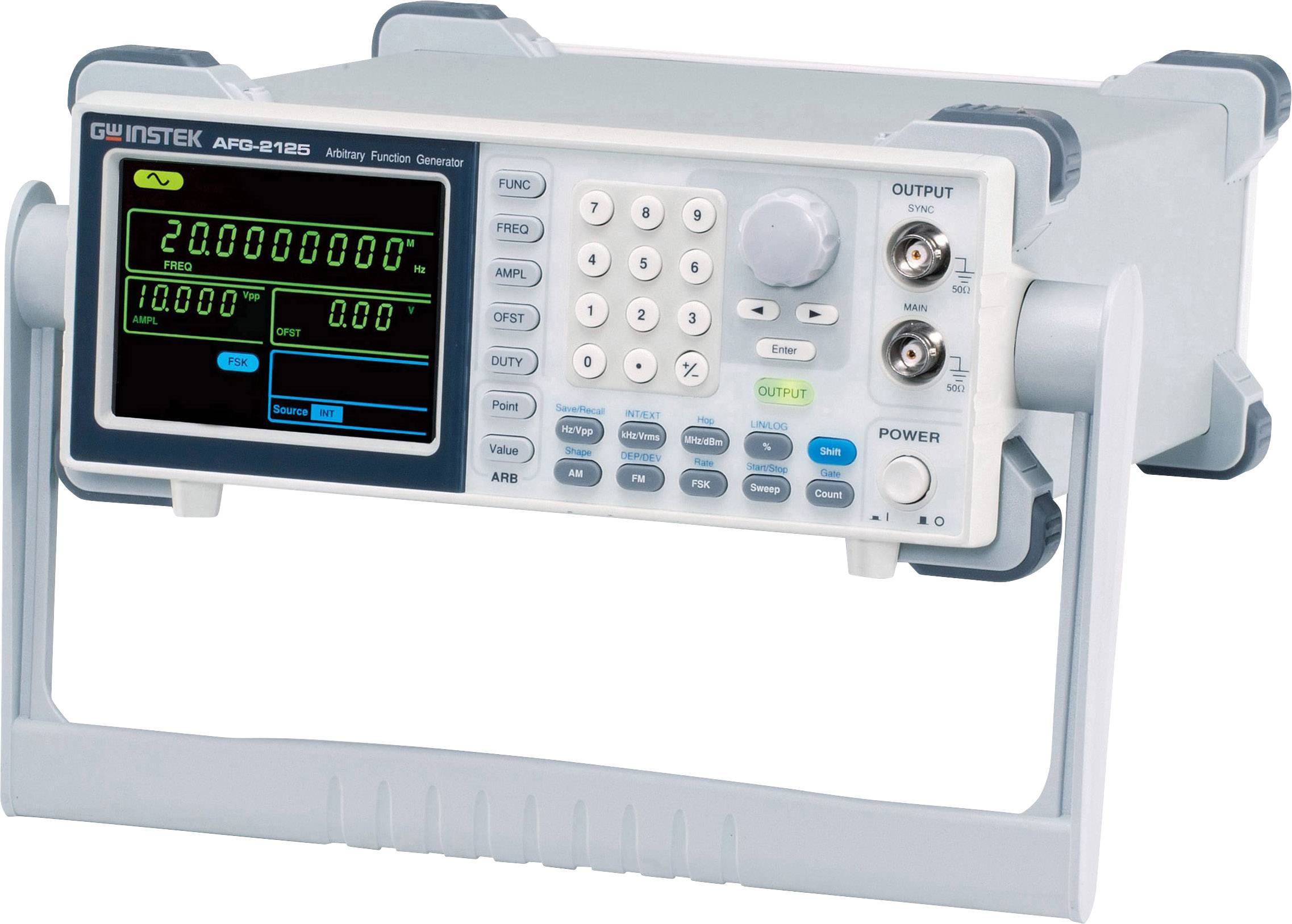

A function generator with digital display shows frequency and voltage. Controls and connections are located on the front panel.

1/4

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 469.00 / piece)

€ 469.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

AFG-2100 & AFG-2000 Arbitrary Function Generator

0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution
Sine, Square, Triangular, Noise and Arbitrary Waveform
20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
1% ~ 99% adjustable duty cycle for Square Waveform
Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously
AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
USB Device Interface for Remote Control and Waveform Editing
PC Arbitrary Waveform Editing Software

Technical specifications

Signal output type: Triangle, square, sine

Product type: Mains-powered

Frequency range: 0.1 Hz - 25 MHz

Signal output types: Triangle
Rectangle
Sinus

Frequency range (sine): 0.1 Hz - 25 MHz

Frequency range square wave: 0.1 Hz - 25 MHz

Square wave slew rate: 25 ns

Display: LCD

Frequency range triangle: 0.1 Hz - 1 MHz

: Manufacturer's standards (no certificate)

Dim: (W x H) 266 mm x 107 mm

Weight: 2.5 kg

No. of channels: 1-channel

Max. frequency: 25 MHz

Min. frequency: 0.1 Hz

Reading category: CAT II

Width: 266 mm

Height: 107 mm

Interfaces: USB

Voltage supply: Mains

Type: AFG-2125

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2203459 GW Instek AFG-2125 Mains-powered 0.1 Hz - 25 MHz 1-channel Triangle, Rectangle, Sinus

Description

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexible environment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields.
The AFG-2100/2000 Series includes 6 models in three frequency bands of 5MHz, 12MHz and 25MHz. Besides the basic features of the whole AFG-2100/2000 Series, AFG-2100 also carries additional features of AM/FM/FSK Modulation, Sweep, and Frequency Counter.
The user friendly interface of AFG-2100/2000 Series allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type, and duty cycle, through keypad entry and/or the knob selection, and display the set parameters on the 3.5” LCD screen. The AFG-2100/2000 Series is equipped with a USB Device interface for remote control and waveform editing through a PC. A waveform editing software is provided to facilitate the waveform creation on the PC. After the waveform editing is done, the user is able to download the waveform data from PC to the AFG-2100/2000 Series for signal output.

Arbitrary Waveform Function
Adjustable Duty Cycle
Parameter Setting
Waveform Amplitude & DC Offset
AM/FM/FSK Modulation, Sweep & Frequency Counter
USB Interface
Arbitrary Waveform Editing PC Software
