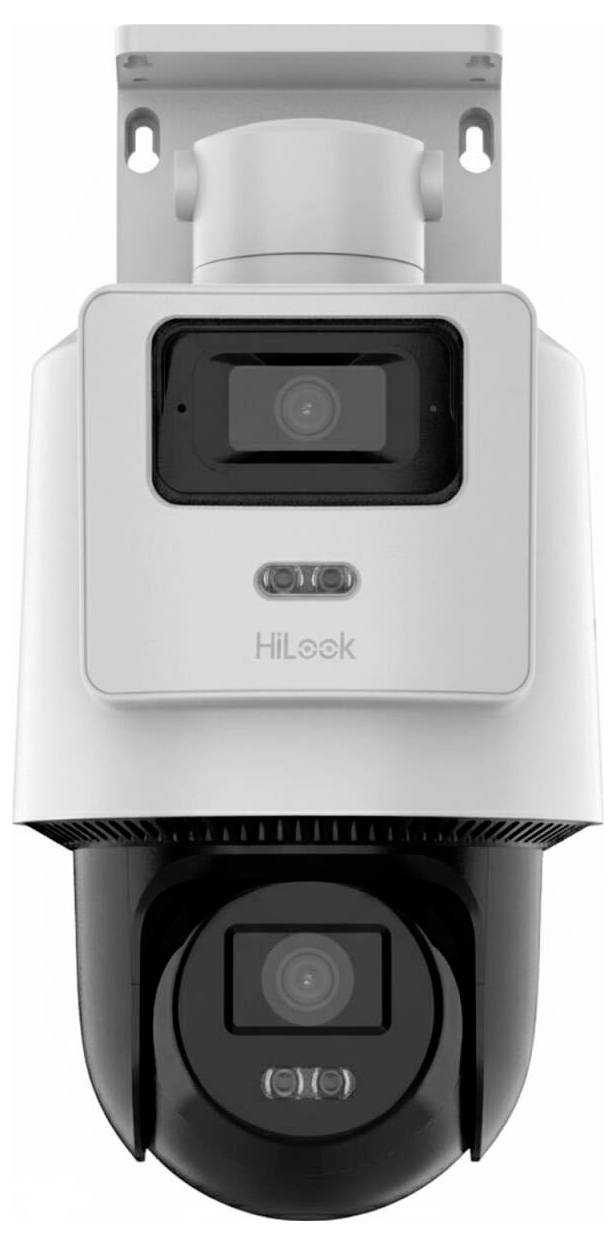

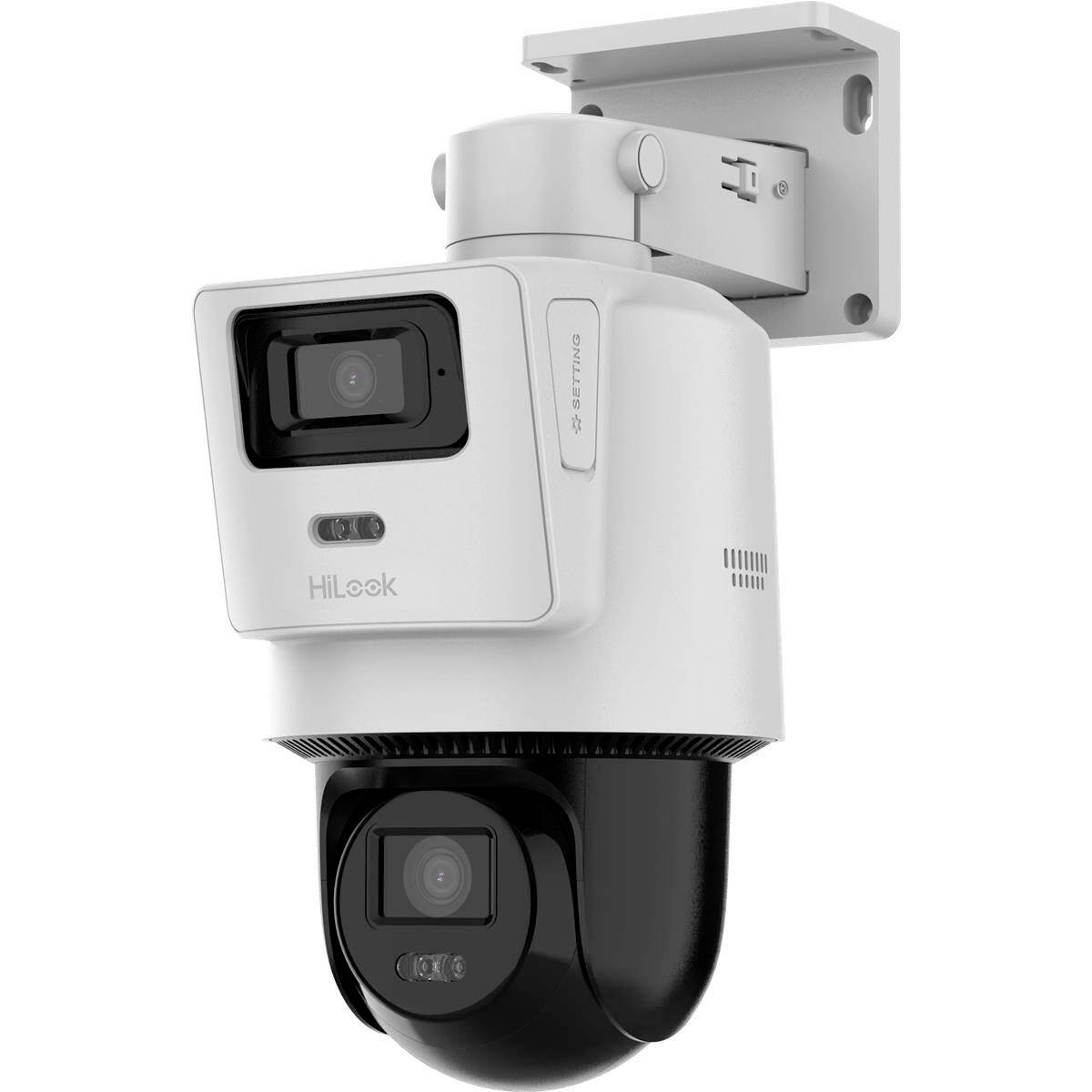

HiLook PTZ-N2D400M-DE/14(2.8/8mm) Corded, LAN IP CCTV camera

The camera is equipped with two 1/2.8" CMOS image sensors with progressive scan. Both channels – the Bullet channel and the PTZ channel – offer a maximum resolution of 2560 × 1440 pixels. The Panorama channel has a 2.8 mm fixed lens, while the PTZ channel uses a 8 mm lens. The field of vision of the panorama channel is horizontal 94°, vertical 49° and diagonal 114°, while the PTZ channel offers a field of view of 44° horizontal, 24° vertical and 51° diagonal.

The minimum illumination is for both the channels at 0.005 lux in color and black/white (each with F2.0 and activated AGC). With activated infrared light, pictures are also possible at 0 lux. The additional lighting consists of hybrid lighting with IR and white light for both channels, which offers a range of up to 30 meters.

Modern codecs are available for video compression: H.265, H.264, Smart264 and Smart265 are supported in the main stream, while the substream also offers MJPEG. The camera has a built-in microphone and speaker for two-way audio. Noise suppression ensures clearer voice transmission.

For local storage, the camera supports microSD, SDHC and SDXC memory cards with a capacity of up to 512 GB. The power supply is done via 12 V DC ± 25% at up to 1.5 A and maximum 18 W. Alternatively, the camera can be operated via PoE according to IEEE 802.3at (class 4), with a maximum power consumption of 21.5 W. The protection class IP67 ensures water and dust resistance, There are also overvoltage and surge protection mechanisms.

The permitted operating temperature range ranges from –30 °C to +50 °C, at a maximum humidity of 95 % (non-condensing). The camera has dimensions of 134 × 213.5 × 291.7 mm and a weight of approx. 1000 g. The available connections include an RJ-45 port (10/100M), a microSD card slot and a reset button.

The alarm and event functions include motion and tamper detection, targeted alarms for people and vehicles, and optical and acoustic warning signals. The camera can be integrated into software environments such as IVMS-4200 and HiLookVision. The DS-1280ZJ-XS connection box and the DS-2280ZJ wall mount are optional accessories.

This text is machine translated.
