Klingspor 347493 DT 612 UT Supra Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Concrete (multi-purpose), Re

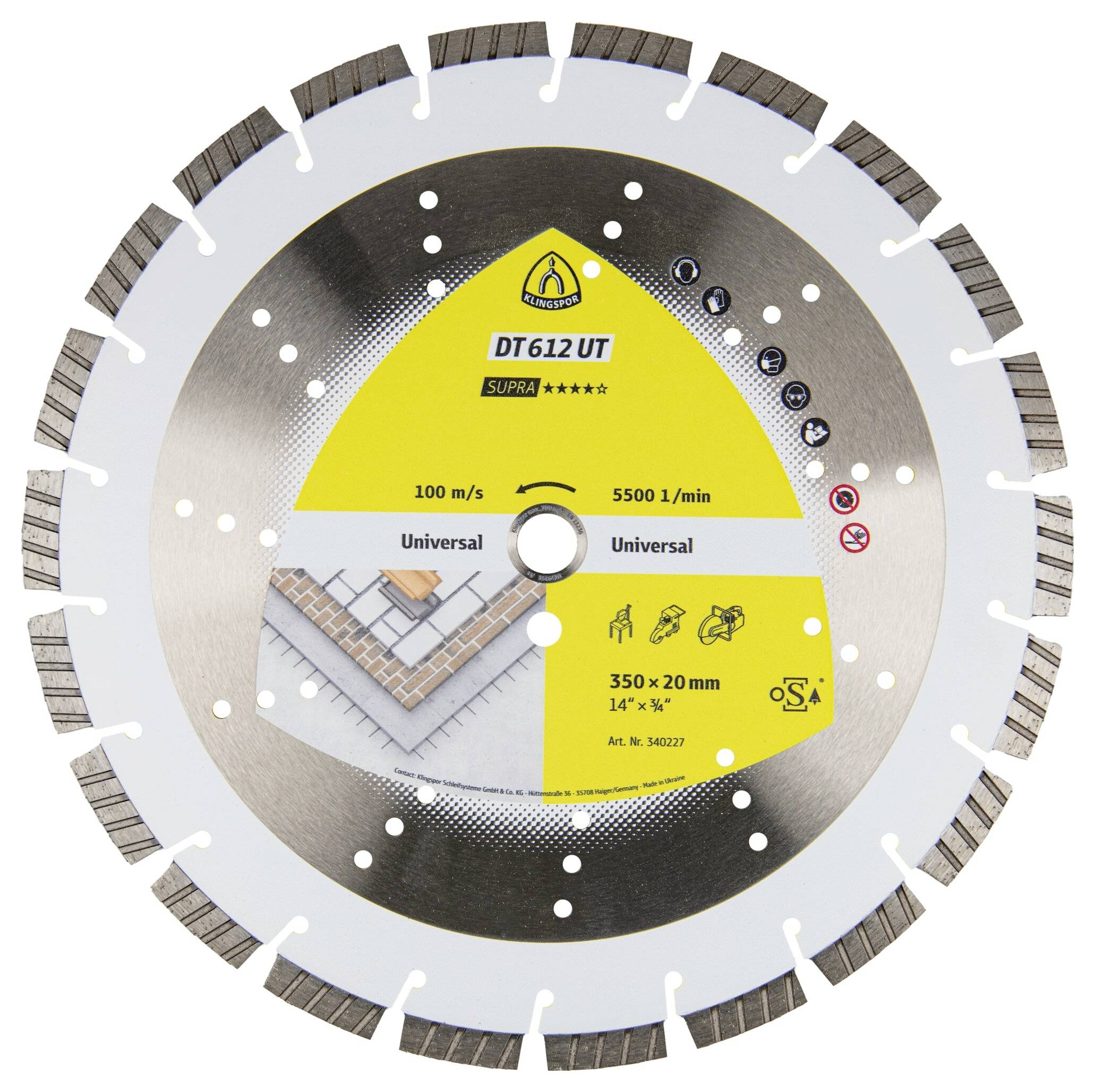

A circular saw blade labeled 'DT612 UT Supra', designed for universal use, indicates specifications: 100 m/s, 5500 1/min, 350 x 20 mm.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 189.99 / piece)
€ 189.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Klingspor 347493 DT 612 UT Supra Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Concrete (multi-purpose), Recycled waste concrete (reinforced), Construction materials 1 pc(s)

  • Special turbo segments for a very high cutting speed with almost all hard materials
  • Good service life, even with reinforced concrete
  • A black and white icon showing a droplet with a plus sign and another droplet with a slash, indicating moisture control or waterproof feature.
  • A stylized black rectangle with two arrows pointing diagonally inside, labeled with the number '12'.
  • 'Dry Clean Only' icon showing a water droplet with a slash and plus sign next to an outline of a garment in a circle.
  • A curved black rectangle with a double-headed arrow diagonally across it, labeled with the number '12'.
  • Illustration of a circular saw blade with a line and spark, indicating cutting or sharpening action.
  • An illustration of a chainsaw with a large circular blade, highlighting the tool's main components in a simplified, line-art style.
  • 'A line drawing of a circular table saw with a protective cover, mounted on a sturdy frame with four legs.'
  • An illustration of a ride-on roller with a circle displaying '10 kW', indicating its power capacity.

Technical specifications

  • Useable: Petrol separator, joint cutter, table saw
  • Aggressivity: Medium
  • Design: Laser welded
  • Segmentation: Turbo
  • Service life: Very high
  • Top speed 100 m/s.
  • Maximum speed 4800 rpm
  • Machine type: Engine disconnecting grinder
  • Edge design: Standard turbo
  • Number of segments: 26 pcs
  • Segment width 3.6 mm
  • Segment height 12 mm
  • Segment length 40 mm
Product type

Diamond cutting disc

Material suitability

Concrete (multi-purpose)

Recycled waste concrete (reinforced)

Construction materials

Bore Ø

25.4 mm

Dim

(Ø) 400 mm

(Ø)

400 mm

Rotational speed (max.)

4800 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530219 Klingspor 347493 DT 612 UT Supra Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Concrete (multi-purpose), Re

User & Safety Instructions

User & Safety Instructions 3530219 Klingspor 347493 DT 612 UT Supra Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Concrete (multi-purpose), Re

Information

Information 3530219 Klingspor 347493 DT 612 UT Supra Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Concrete (multi-purpose), Re

Description

The laser-welded DT 612 UT Supra with 12 mm turbo segments is Ideal for rapid cutting of concrete and construction materials. The professional disc offers good service life with reinforced concrete and a very good price-performance ratio.
