Name: Knipex 97 52 06 Crimper Insulated cable lugs, Connector, Butt connectors 0.5 up to 6 mm²
Brand: Knipex
SKU: 822881
Price: 114.99 EUR
Availability: InStock

A crimping pliers with red handles, suitable for connecting cables and connectors in electrical applications.

A hand is holding a red crimping pliers working on a yellow-green cable.

A red crimping pliers with a black head, suitable for crimping connectors onto wires or cables.

A red crimping pliers with a black clamp, model 'KNIPEX 97 52 06', for cable connections.

A hand is holding a red crimping pliers and is crimping a green and a yellow wire end ferrule. The pliers are labelled 'KNIPEX'.

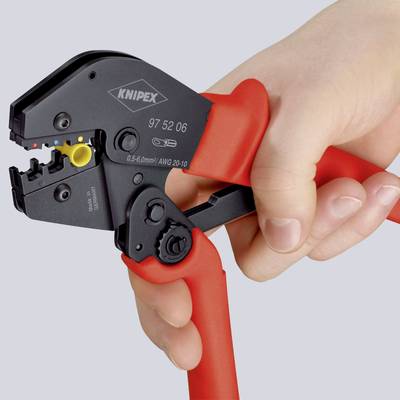

A hand is holding a red crimping pliers with the 'Knipex' inscription and technical specifications printed on the side of the pliers, against a grey background.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Crimp pliers

For solder-free electrical connections
Up to 3 % reduced manual force compared to standard crimping pliers thanks to high leverage
Consistent high crimping quality through precision inserts and lock (can be unlocked)
Crimping pressure is factory-precisely adjusted (calibrated), operating positions
Two-hand operation for easy crimping of large conductor cross sections

Technical specifications

Product type: Crimper

Manufacturer part #: 97 52 06

Range of uses: Insulated cable lugs
Connector
Butt connectors

Crimp area: 0.5 up to 6 mm²

Crimp area AWG: 10 up to 20 awg

Crimp area (min.): 0.5 mm²

Crimp area (max.): 6 mm²

Crimp area AWG (min.): 20 awg

Crimp area AWG (max.): 10 awg

Length: 250 mm

Material: Chromium-vanadium electric furnace steel

Material properties: burnished
tempered

Width: 30 mm

Height: 100 mm

Weight: 560 g

Range of uses: Type 97 52 06 for insulated cable shoes and plug-connectors from 0.5 - 6.0 mm² (AWG 20 - 10).

Suitable for: insulated terminals and connectors, 0.5 - 6.0 mm ² (AWG 20-10)

Type: 975206

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822881 Knipex 97 52 06 Crimper Insulated cable lugs, Connector, Butt connectors 0.5 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 822881 Knipex 97 52 06 Crimper Insulated cable lugs, Connector, Butt connectors 0.5 up to 6 mm²

Description

Crimping pliers of the new generation. For solder-free electrical connections Up to 30 % reduced manual force compared to standard crimping pliers thanks to high leverage Consistent high crimping quality through precision inserts and lock (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory Two-hand operation for easy crimping of large conductor cross sections Good handling thanks to balanced centre of gravity, angled head and ergonomically-shaped grips Chromium-vanadium electro-steel in special quality, oil-hardened

This text is machine translated.
