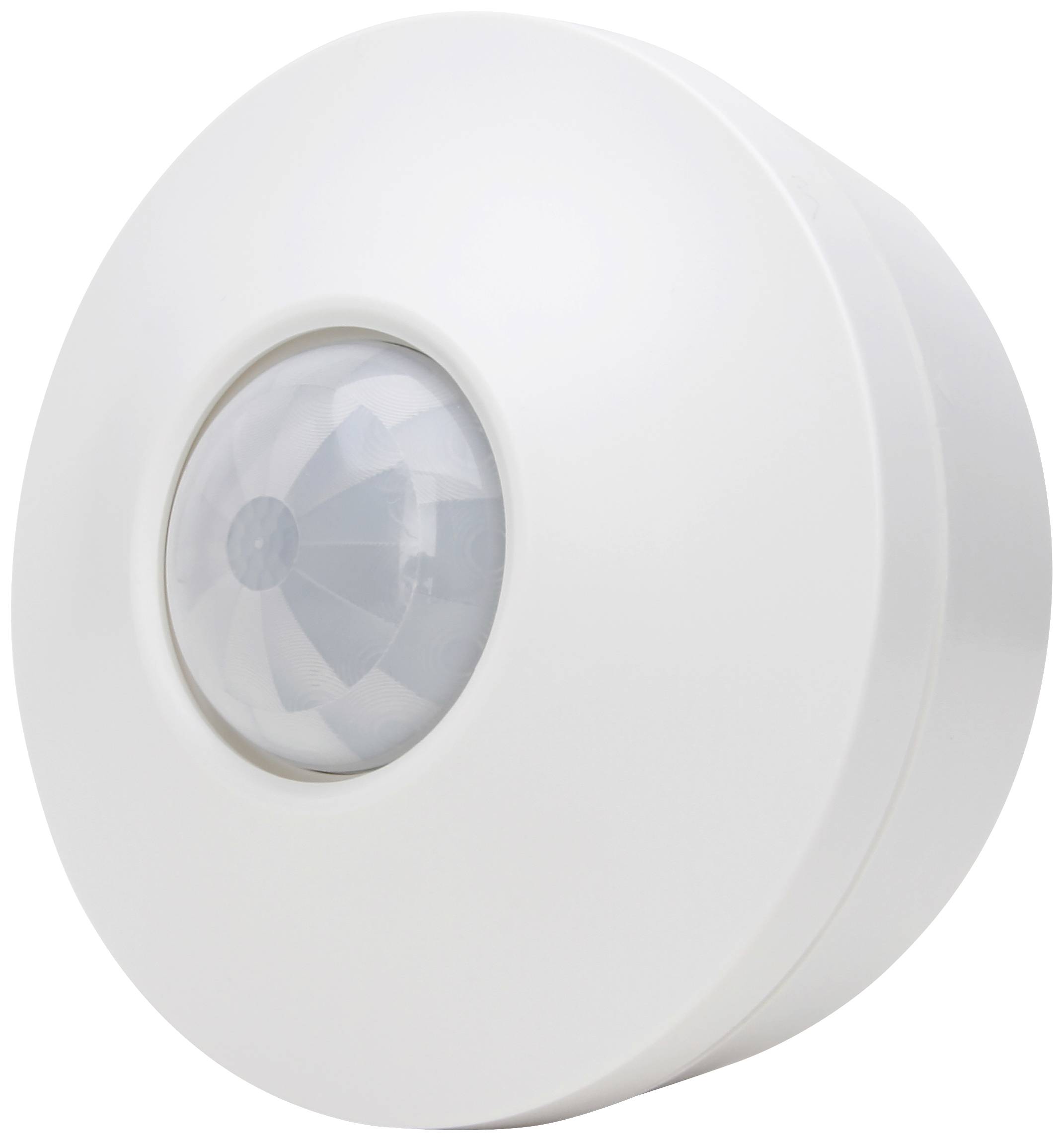

Kopp 827801000 Surface-mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Highlights & Details
Kopp PM360-AP-12-A-1-ws presence detector
- Surface-mounted occupancy sensorINFRAcontrol R 360°Surface-mounted12 m coverage area diameterInfrared and acoustic detection1 channel for switching lights
- This text is machine translated.
Technical specifications
- Factory colour
White
- Similar RAL
9010
- (Ø)
111.5 mm
- Height
82 mm
IP20
- Mounting type
Surface-mount
- Detection angle
360°
6 m
- Operating voltage
230 V
- Used at
Indoors
- Operating temperature
- 20 – +50 °C
- Switching capacity (light bulbs)
2000 W
- Time settings
5 s - 30 h min
- Switching capacity (halogen bulbs)
1000 VA
- Switching capacity (light tubes)
1000 VA
- Switching capacity (energy saving bulbs)
600 VA
- Twilight settings
10 - 2000 lx
- Switching capacity (LED)
400 VA
- Switching capacity
2000 W
Surface mounted (plaster)
White
Presence detector
TRUE
82 mm
Push-in clamp
Untreated
AC
0 mm
50-50 MHz
111.5 mm
FALSE
0 mm
Thermoplastic
117 A
Plastic
9010
IK02
230-230 V
IP20
FALSE
Matt
FALSE
0
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2623745 Kopp 827801000 Surface-mount Occupancy sensor 360 ° White IP20
User & Safety Instructions
User & Safety Instructions 2623745 Kopp 827801000 Surface-mount Occupancy sensor 360 ° White IP20
Description
Features
- Mounting ceiling structureInfrared and acoustic detectionPulse output: 1 sec.Remotely controllable (IR remote control optional)
Scope of delivery
- PM360-AP-12-A-1-BW
- User manual.
