Name: LogiLink PA0248 PIR motion detector 100 ° White IP20
Brand: LogiLink
SKU: 2633087
Availability: InStock

Motion sensor socket with switch for 'OFF', 'AUTO', 'ON'. Built-in sensor on top. White colour.

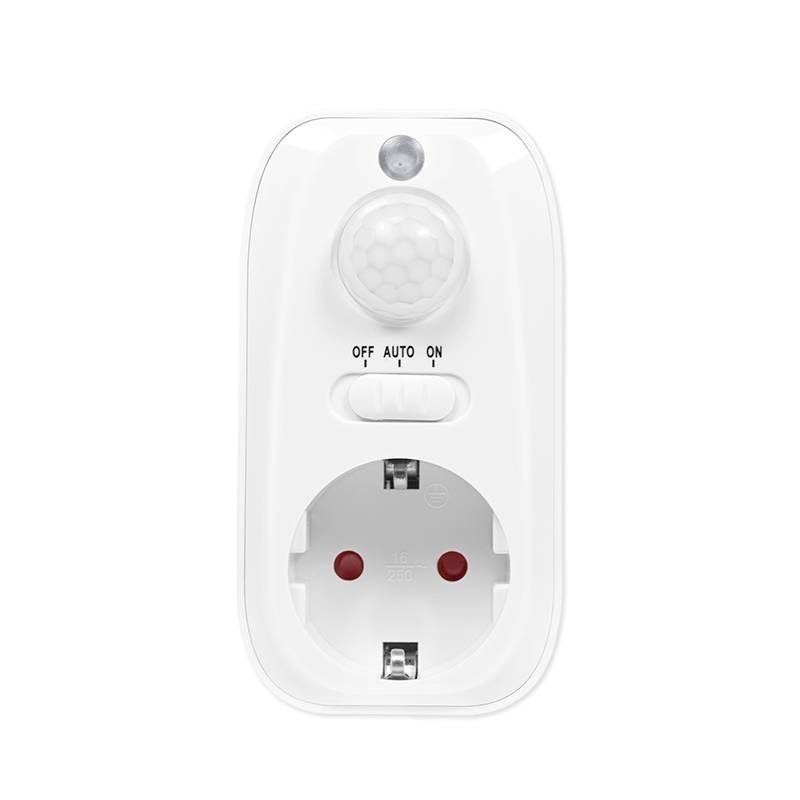

A white, electronic socket with a motion sensor and a switch featuring 'OFF', 'AUTO', 'ON' options. Ideal for energy management.

White socket with two round holes and earth pin, viewed from the front. It has a rectangular area at the top.

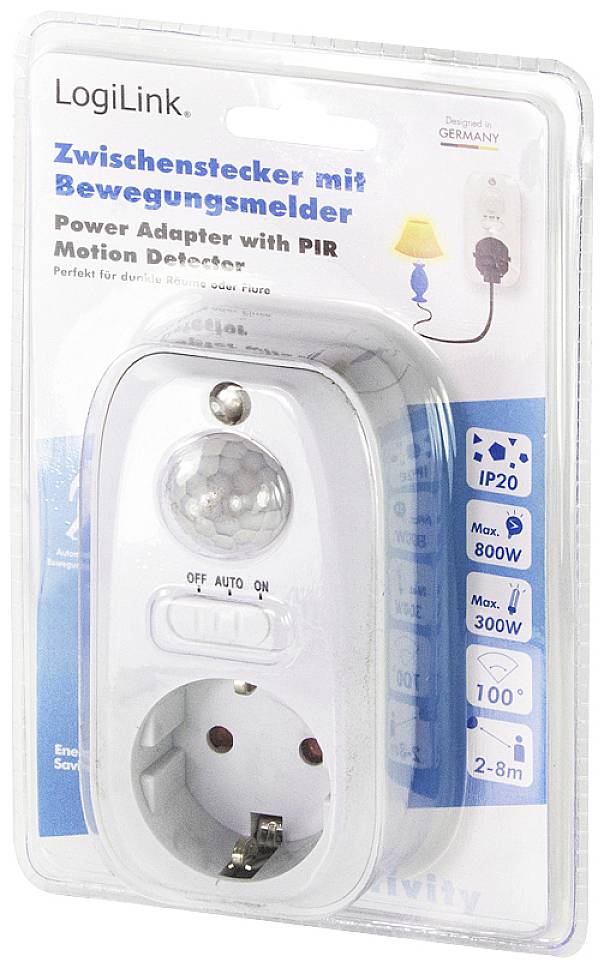

'LogiLink Plug-in Motion Sensor Adapter' in packaging. White socket adapter, suitable for lighting up to 1200W.

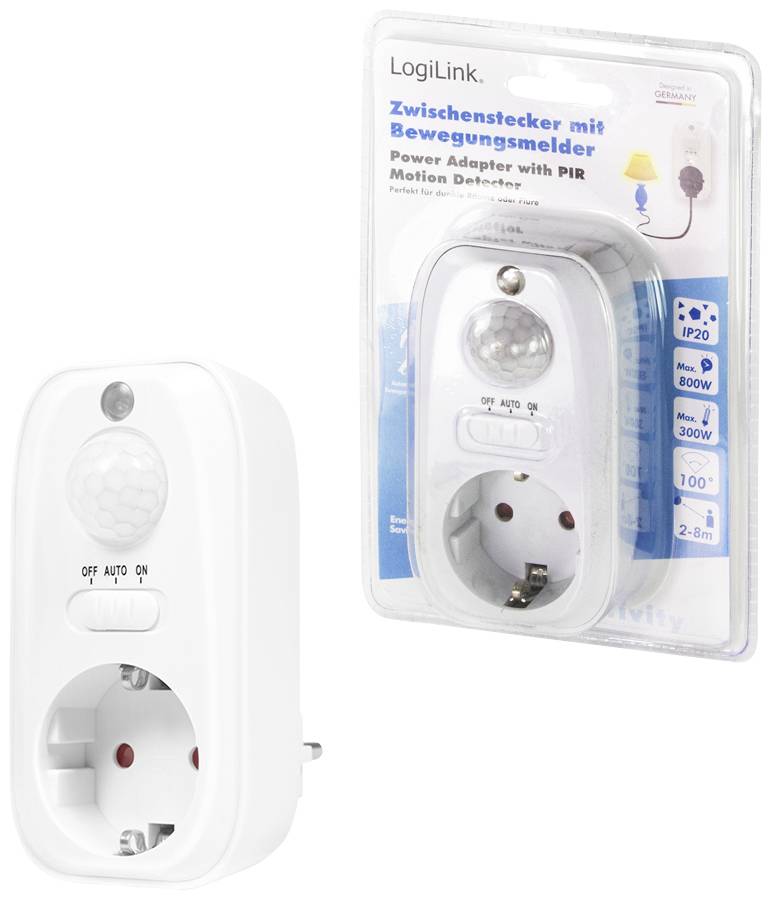

'Plug-in Motion Sensor Adapter'. The packaging and product image show an adapter with a PIR motion sensor for energy saving.

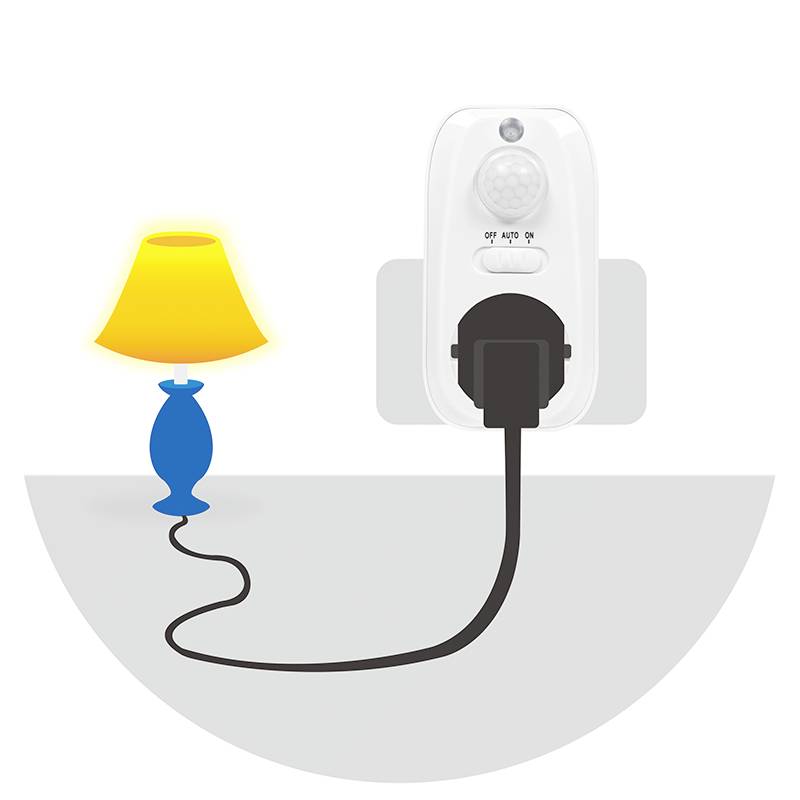

A blue lamp with a yellow shade is plugged into a socket with a motion sensor that runs along a table.

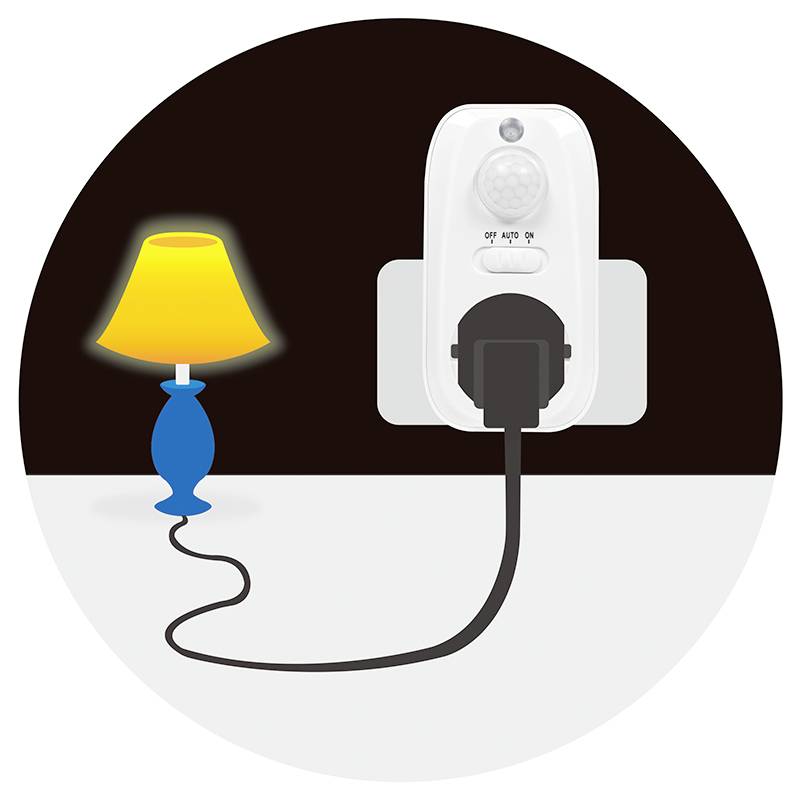

A lamp is connected via a cable to a motion sensor plugged into a socket. It is glowing yellow.

A table with a switched-on lamp, a plant in a pot, and a bright round object. A blurry person passes in the foreground.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

13 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket adapter with motion detector, 1x CEE 7/3

1 x earthing contact socket-outletWith motion detector and day/night sensorSocket with increased contact protection

Technical specifications

Power: 230 V/16 A, 50 Hz, max. 800 W (light bulb) or max. 300 W (LED)

Product type: PIR motion detector

Detection angle: 100°

: 8 m

Used at: Indoors
Mains socket

Operating voltage: 230 V

Switching capacity (light bulbs): 800 W

Switching capacity (LED): 300 W

Factory colour: White

: IP20

Length: 57 mm

Width: 70 mm

Height: 108 mm

Dim: (L x W x H) 57 x 70 x 108 mm

Weight: 104 g

Version: Adapter

: Cable

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2633087 LogiLink PA0248 PIR motion detector 100 ° White IP20

User & Safety Instructions

User & Safety Instructions 2633087 LogiLink PA0248 PIR motion detector 100 ° White IP20

Conformity certificate

Conformity certificate 2633087 LogiLink PA0248 PIR motion detector 100 ° White IP20

Description

Do you want the light to switch on automatically when it is dark and when the motion detector recognizes movement, such as in the hallway, staircase or a garage? Then use the socket adapter with light and PIR sensors from LogiLink. To do this, simply plug the PA0248 into the socket and the plug of the device to be switched on - like a floor lamp - in the adapter. If the environment is dark enough (from a light intensity of less than 5 Lux) and the PIR sensor captures a movement in its 100° detection range (at a distance of up to 8 m), the socket switches on.

This text is machine translated.

Features

IP20 protects against contact with fingers or similar objectsThree operating modes: On, off, motion detectorIdeal in dark environments such as B. Hallways, garages or staircasesPG plug

Description

Features

IP20 protects against contact with fingers or similar objectsThree operating modes: On, off, motion detectorIdeal in dark environments such as B. Hallways, garages or staircasesPG plug
