Name: Manhattan 423830 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable Built-in level
Brand: Manhattan
SKU: 995195
Availability: InStock

Black metal wall mount for flat-screen televisions, adjustable with tilt options, suitable for large screens.

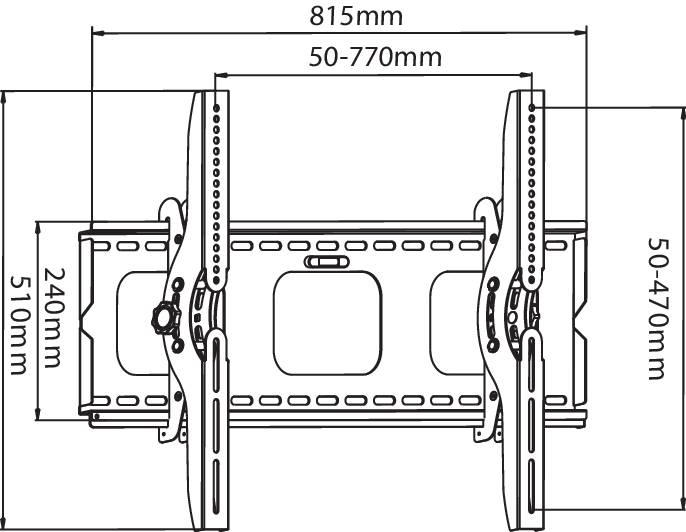

Technical Drawing of a TV Wall Mount with Dimensions: Width 815mm, Height 510mm, Adjustable Width 50-770mm, Height 50-470mm.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 44.99 / piece)

€ 44.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Alternative article by SPEAKA PROFESSIONAL

SpeaKa Professional TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable

Fast track dispatch on Thu 29 Oct

€ 18.99

incl. VAT plus

Highlights & Details

Manhattan Universal Flat-Panel TV Tilting Wall Mount, Supports one 37” to 70” television

Optimize views with ±10° tilt adjustment
Easy installation ideal for home, office and commercial applications – includes integrated bubble level
Meets VESA standards – supports TVs from 37” to 70" up to 75 kg (165 lbs.)

Technical specifications

Product type: TV wall mount

Suitable for: 94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
Show more

Suitable for: 94,0 cm (37") - 177,8 cm (70")

Holder type: Tiltable

Features: Built-in level

Max. load capacity: 75 kg

: No

: 200 x 200 mm
400 x 200 mm
300 x 300 mm
400 x 400 mm
600 x 400 mm
800 x 400 mm

Rotation: 0°

Tilt range (bottom): -10°

Tilt range (top): +10°

Swivel range (left): 0°

Swivel range (right): 0°

Distance to wall (min.): 6.3 cm

Distance to wall (max.): 6.3 cm

Width: 815 mm

Height: 810 mm

Depth: 80 mm

Factory colour: Black

Material (details): Steel

Weight: 5.8 kg

Dim: (W x H x D) 815 x 810 x 80 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 995195 Manhattan 423830 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable Built-in level

Information

Information 995195 Manhattan 423830 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable Built-in level

Description

Put flat-panel TVs in the right perspective.
Overcome odd floor plans, annoying glare and awkward furniture placements that can diminish flat-panel TV experiences. Manhattan Universal Flat-Panel TV Tilting Wall Mounts with smooth, one-touch tilt adjustments help keep images, contrasts and colors clear, sharp and defined. VESA-compliant and constructed of quality materials, Manhattan Universal Flat-Panel TV Tilting Wall Mounts fit a variety of display sizes with a secure and confident above-the-floor installation. An integrated locking system provides added security against theft. Ideal for residential, office, hospitality, classroom and conference room, digital signage and other commercial applications, Manhattan Universal Flat-Panel TV Tilting Wall Mounts bring high-performance LCD or plasma TV enjoyment front and center.

Features

Fits 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400 VESA-compliant televisions
Weight capacity: up to 75 kg (165 lbs.)
Extends 63 mm (2.5 in.)

Scope of delivery

Universal Flat-Panel TV Tilting Wall Mount
Installation hardware with instructions

Description

Features

Fits 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400 VESA-compliant televisions
Weight capacity: up to 75 kg (165 lbs.)
Extends 63 mm (2.5 in.)
