Name: Monacor PA-1250D PA amplifier 250 W
Brand: Monacor
SKU: 1295606
Availability: InStock

Amplifier device with 'Monacor' inscription and model number 'PA-2250D' on the front panel. It has rotary knobs and light-emitting diodes.

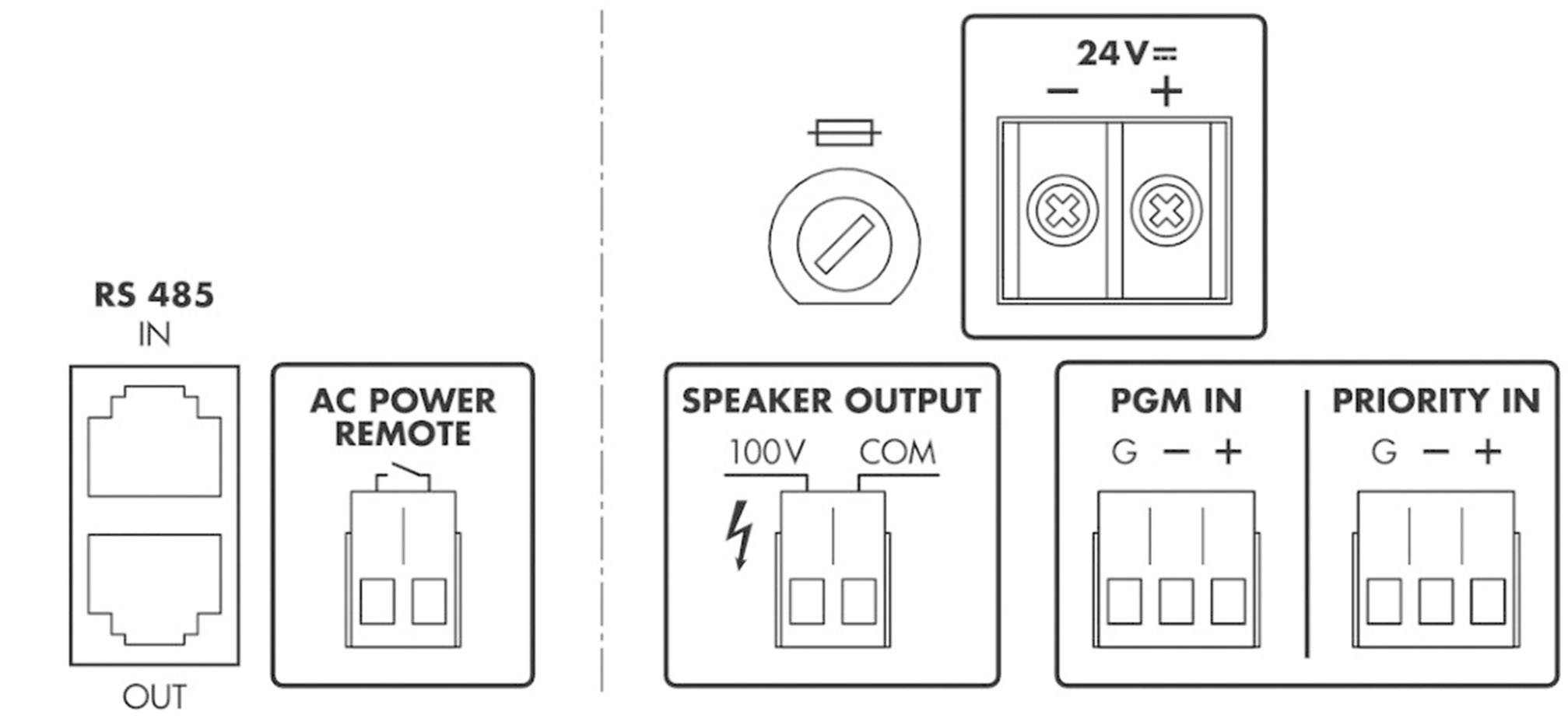

'Diagram of a Connection Panel: RS 485, Remote Power Supply, Speaker Output (100V, COM), PGM IN, Priority Input, 24V Power Connection.'

1/2

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 925.00 / piece)

€ 925.00

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Monacor PA-1250 D ELA-AMPLIFIER

Output power: 250 W RMS / 350 W max.
Maintenance-free cooling.

Technical specifications

Product type: PA amplifier

RMS power: 250 W

Dim: (L x W x H) 41 x 48.2 x 8.8 cm

Weight: 7.5 kg

Width: 48.2 cm

Height: 8.8 cm

Length: 41 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1295606 Monacor PA-1250D PA amplifier 250 W

Description

Powerful and energy-saving
The ELA mono digital power amplifier PA-1250 D belongs to a new generation device that combines a high performance with efficient use of energy and thus makes an important contribution to climate protection. In addition, by the way the electricity costs for the user. This is achieved by, among other things, the significantly optimized efficiency digital 100-V power amplifiers of over 90% compared to analogue devices (around 70%). In addition, the heat loss is much lower. This minimizes the cooling effort and the life of the PA-1250 D is once again increased.

This text is machine translated.

Features

1 x 250 W RMS
Class-D concept with a high degree of efficiency of over 90% to reduce energy costs
Additional, integrated energy-saving features such as the automatic change of the device to the standby mode when no input signal is present (as soon as an input signal is detected, the amplifier immediately and it turns on again.)
Significantly lower battery capacity for the emergency operation as with analogue 100V amplifiers required
Significant reduction of the cooling expenses due to the low heat loss
Maintenance-free cooling and silent operation by the fan-less cooling concept, therefore particularly suitable for noise-sensitive areas such as offices, conference rooms or churches
Special protective circuits prevent damage due to a short-circuit or overheating
Comprehensive, menu-guided setting options
Switchable 200 - Hz-Hochpassfilter, 6 dB/oct.
Additional priority input
LCD display for the operating parameters
Mains or 24 V emergency power operation.

Description

Features

1 x 250 W RMS
Class-D concept with a high degree of efficiency of over 90% to reduce energy costs
Additional, integrated energy-saving features such as the automatic change of the device to the standby mode when no input signal is present (as soon as an input signal is detected, the amplifier immediately and it turns on again.)
Significantly lower battery capacity for the emergency operation as with analogue 100V amplifiers required
Significant reduction of the cooling expenses due to the low heat loss
Maintenance-free cooling and silent operation by the fan-less cooling concept, therefore particularly suitable for noise-sensitive areas such as offices, conference rooms or churches
Special protective circuits prevent damage due to a short-circuit or overheating
Comprehensive, menu-guided setting options
Switchable 200 - Hz-Hochpassfilter, 6 dB/oct.
Additional priority input
LCD display for the operating parameters
Mains or 24 V emergency power operation.
