Name: Omnitronic PAP-1000 PA amplifier 1000 W 1-channel
Brand: Omnitronic
SKU: 313097
Availability: InStock

'IMG Stageline PAP-1000' amplifier, black, with two rotary knobs and ventilation slots on the front, for audio amplification.

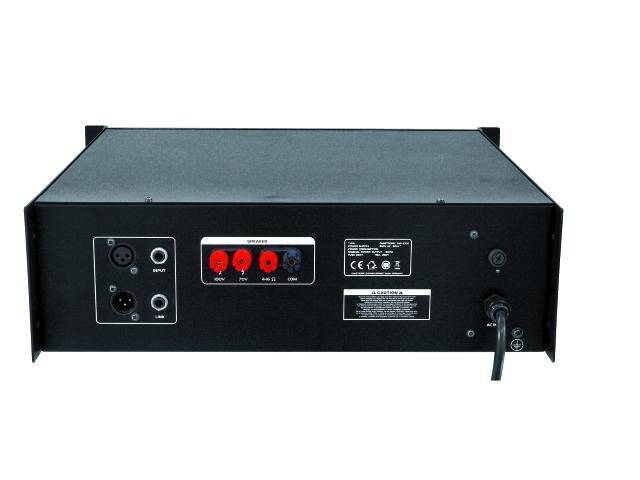

Rear view of a black audio amplifier with various inputs and connections, including XLR and speaker terminals.

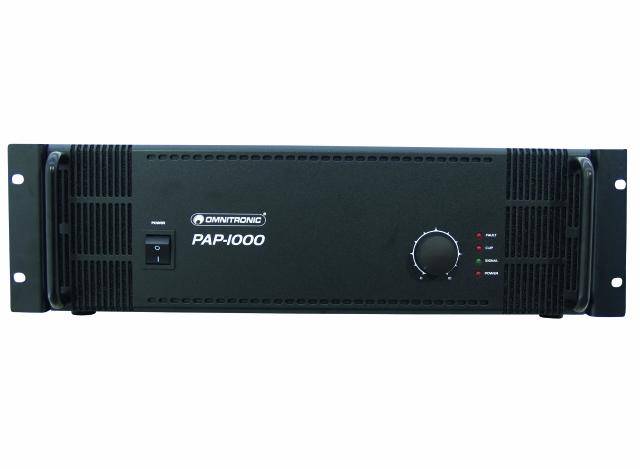

'Omnitronic PAP-1000' amplifier with a black enclosure, featuring switches, volume control, and status indicators at the front.

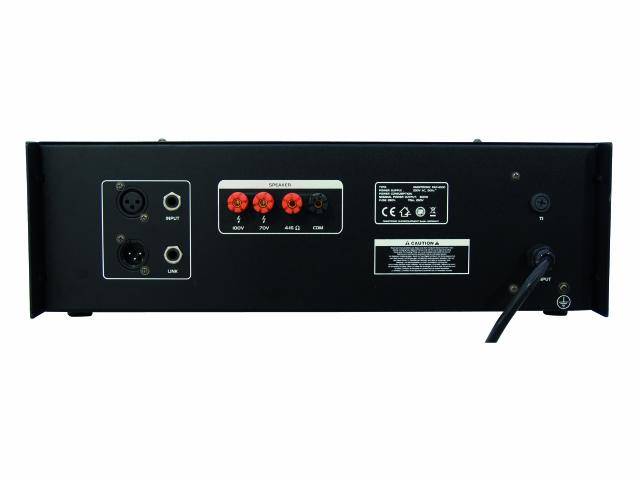

Back of an audio amplifier with various inputs and outputs, including XLR connections and red speaker terminals.

1/5

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 865.00 / piece)

€ 865.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

OMNITRONIC PAP-1000 ELA-MIX AMPLIFIER

PA Amplifiers

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connected wattage 2000 W
Power output 1000 W RMS
OUTPUT CURRENT 15 A/ 70 V; 10 A/ 100 V.
Speaker outputs 70 V, 100 V or 4-16 ohm
Input sockets: XLR-, jack-mounted socket
Output sockets: XLR, jack socket, screw terminals
Line input 300 mV, 10 kOhm
Frequency response: 80 Hz - 16 kHz
Distortion: 0.5 %/ 1 kHz
Noise voltage distance (line): 90 dB
Protective circuits: Overheating, overload, short circuit, DC voltage,
Soft start-up
Display: Power, fault, clip, signal
Rack installation with 3 HE

Product type: PA amplifier

RMS power: 1000 W

Dim: (L x W x H) 13.8 x 48.3 x 38.5 cm

Weight: 24 kg

No. of channels: 1-channel

Output type (PA amplifier): 70 V
100 V

Width: 48.3 cm

Height: 38.5 cm

Length: 13.8 cm

Interfaces: XLR in
Line in

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313097 Omnitronic PAP-1000 PA amplifier 1000 W 1-channel

Description

PA Amplifiers · 1 line input (either XLR or 6.3 mm jack) · 1 loop-through output (either XLR or 6.3 mm jack) · Operation with 70V/100 V or 4-16 ohm · Master controller · LED display for power, signal, clip and fault · Protective circuits: Overload, short circuit, switch-on delay, overheating, DC voltage · Load monitoring and performance monitoring · Rack installation

This text is machine translated.
