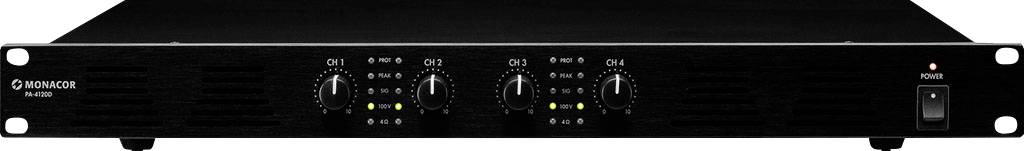

Monacor PA-4120D PA amplifier 480 W 4-channel
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,015.00 / piece)
€ 1,015.00
incl. VAT
Only 10 Piece(s) available
Highlights & Details
4-channel ELA class D power amplifier
- 4 x 120 W
- Class-D concept with hohem efficiency to reduce energy costs
- Continuously temperature-controlled fan
- Connection for external on/off switch
- Connection for external mute switch
- LED-display for Protect, Peak, Signal and 100-V/4-Ω-operation
- This text is machine translated.
Technical specifications
- Power at 4 Ω: 4 x 120 W.
- Power at 100 V 4 x 120 W.
- OUTPUT IMPEDANCE 100 V/83 Ω, 4 Ω
- Inputs 775 mV/20 kΩ, bal.
- Frequency range 80 - 16,000 Hz
- Mains voltage 230 V.
- Height units 1 HE
- Connections: Screw connections (inputs), screw connections (loudspeakers)
- Product type
PA amplifier
- RMS power
480 W
- Dim
(L x W x H) 32 x 48.3 x 5.2 cm
- Weight
5.12 kg
- No. of channels
4-channel
- Output type (PA amplifier)
100 V
- Width
48.3 cm
- Height
5.2 cm
- Length
32 cm
- Interfaces
Screw terminals
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2355614 Monacor PA-4120D PA amplifier 480 W 4-channel
User & Safety Instructions
User & Safety Instructions 2355614 Monacor PA-4120D PA amplifier 480 W 4-channel
Description
Scope of delivery
- 4-channel ELA class D power amplifier
