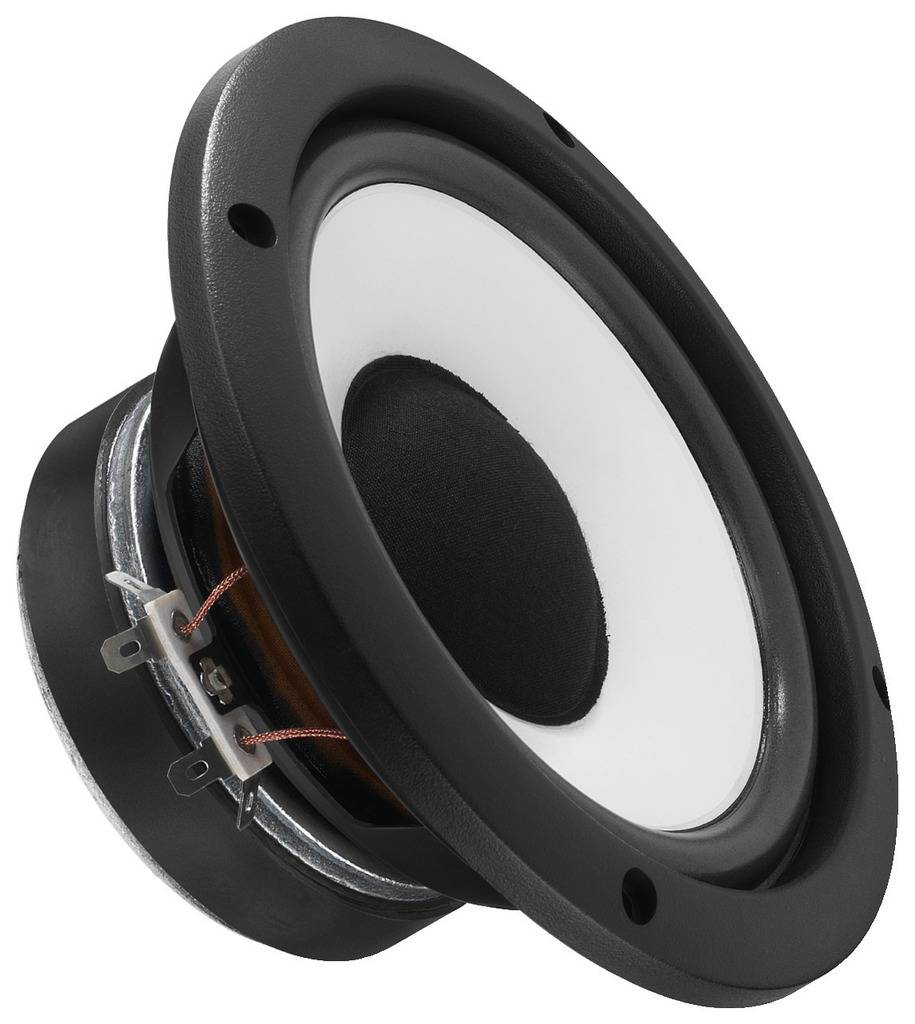

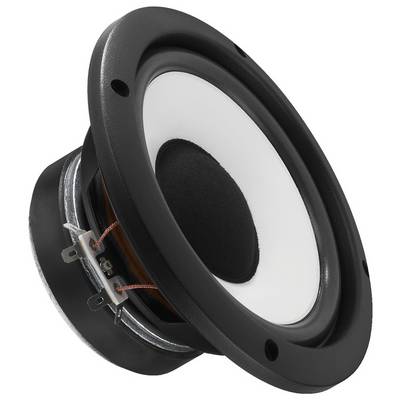

Monacor SP-150 6.75 inch 16.38 cm Subwoofer 30 W 8 Ω
EAN:
Part number:
Item no:
Total (€ 59.99 / piece)
€ 68.99
-13 %
€ 59.99
incl. VAT
14-day return policy included
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 35 Hz
- Max. 3-4000 Hz frequency range: f
- Maximum load capacity 60 WMAX
- Nominal load (P): 30WRMS
- Avg. Sound pressure (1W/m): 90 dB
- Suspension compliance (cms): 1.56 mm/N
- Moved mass (MMS): 10.4 g
- Mechanical quality (Qms): 2.83
- Electrical quality (Qes): 0.61
- Total quality (Qts): 0.50
- Equivalent volume (Vas): 35 l
- Dc resistance (Re): 6.5 ohm
- Power factor (BxL): 7.5 Tm
- Schwingspulenind. (Le): 0.45 mH
- Voice coil diameter: 25.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2.5 mm
- Eff. Cone area (sd): 127 cm2
- Magnet weight: 380 g
- Weight: 1.2 kg
- Product type
Subwoofer
- Speaker size (inch)
6.75 inch
- Speaker size (cm)
16.38 cm
- RMS capacity
30 W
- Max. load
60 W
- Min. frequency
35 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Recess diameter
145 mm
- Recess depth
102 mm
- Weight
1.2 kg
- Frequency range
35 Hz - 4000 Hz
Description
Features
- Universal speaker
- White polypropylene diaphragm
- Basket trim ring made of plastic
- This text is machine translated.
