My Wall HL 4-2 L TV ceiling mount 58,4 cm (23") - 106,7 cm (42") Tiltable, Swivelling, Height-adjustable
EAN:
Part number:
Item no:
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 10 Piece(s) available
Highlights & Details
myWALL HL 4-2 LCD-/ Plasma-ceiling mount
- For 25 - 76 cm television
- Length adjustable from 600 - 850 mm
- Carrying capacity up to 30 kg
Technical specifications
- Product type
TV ceiling mount
- Suitable for
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
Show more
- Suitable for
58,4 cm (23") - 106,7 cm (42")
- Holder type
Tiltable
Swivelling
Height-adjustable
- Max. load capacity
30 kg
No
50 x 50 mm
75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm
- Rotation
0°
- Tilt range (bottom)
-20°
- Tilt range (top)
+20°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Min. distance to floor/ceiling
600 mm
- Max. distance to floor/ceiling
850 mm
- Width
16 cm
- Height
85.5 cm
- Factory colour
Silver-grey
- Material (details)
Steel
- Weight
2000 g

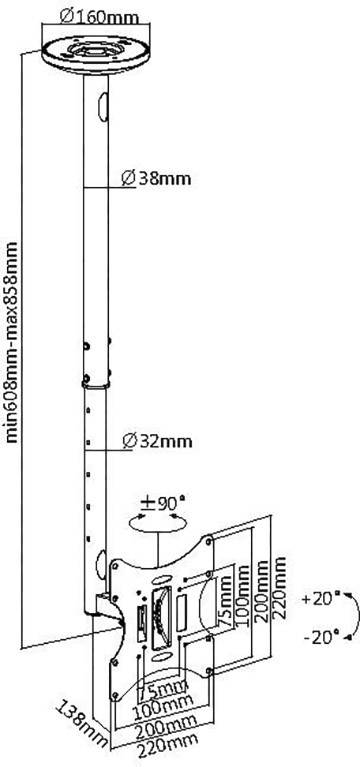

- Dim
(W x H) 16 cm x 85.5 cm
- Type
Ceiling mount
- Swivel range
20° tilting, 270° rotatable
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 942209 My Wall HL 4-2 L TV ceiling mount 58,4 cm (23") - 106,7 cm (42") Tiltable, Swivelling, Height-adjustable
Warranty Terms
Warranty Terms 942209 My Wall HL 4-2 L TV ceiling mount 58,4 cm (23") - 106,7 cm (42") Tiltable, Swivelling, Height-adjustable
Description
Small spaces effectively, quite simply, with the myWall TV ceiling bracket. If parking space a scarce good, then this ceiling mount is the optimal solution for monitors with a maximum of 42" diameter and 30 kg in weight. The monitor is thanks to the holder inclinable and rotation and thus from different angles, well-view and to read.
This text is machine translated.
This text is machine translated.
Features
- Cable routing through the pipe of the bracket
- For every hole pattern including VESA standard
- Can be tilted up to 20° in the upper and lower direction
- 270° rotation
Scope of delivery
- Mount
- Screw set
- Installation manual.
