Name: Neomounts FPMA-C020BLACK TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable
Brand: Neomounts
SKU: 1881483
Availability: InStock

A monitor mount enables the installation of a monitor on the ceiling. The mount is adjustable and suitable for flat screens.

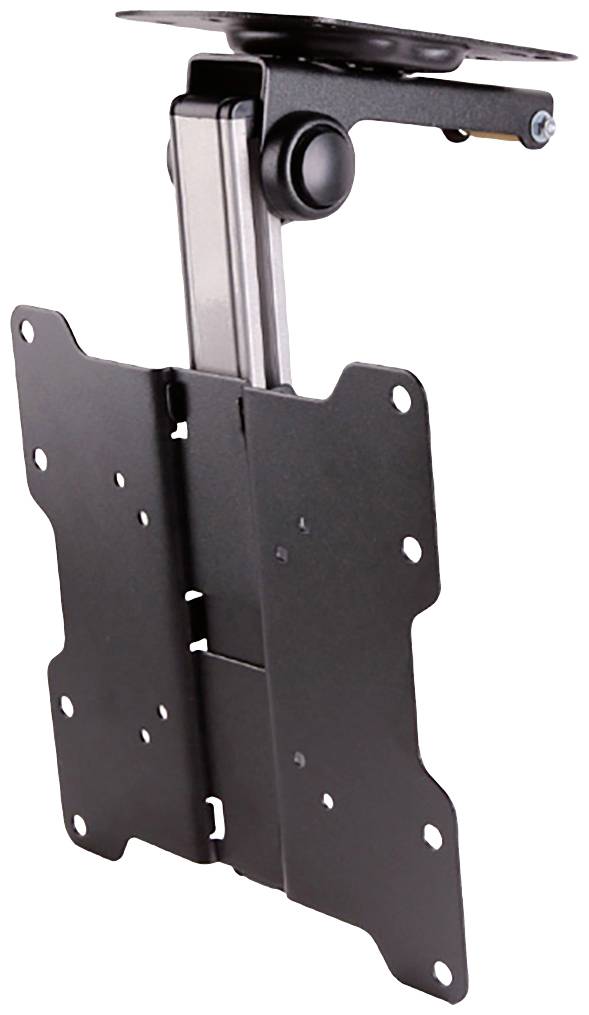

A black, adjustable metal bracket for screens, wall or ceiling mounting, with multiple mounting holes.

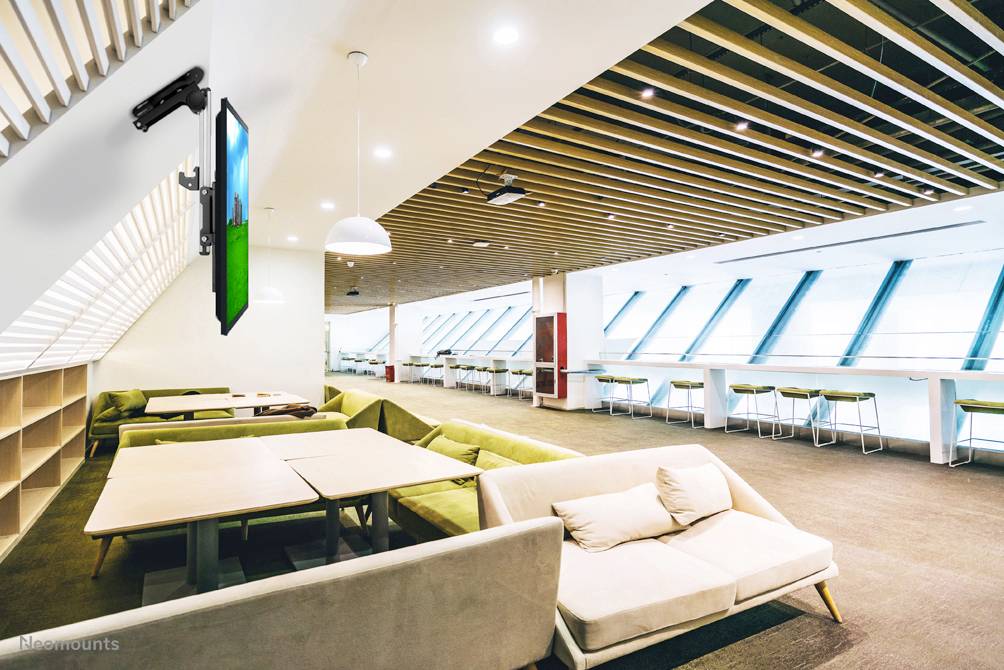

A modern, well-lit lounge area with green sofas, tables and a wall-mounted screen. Wooden beam ceiling.

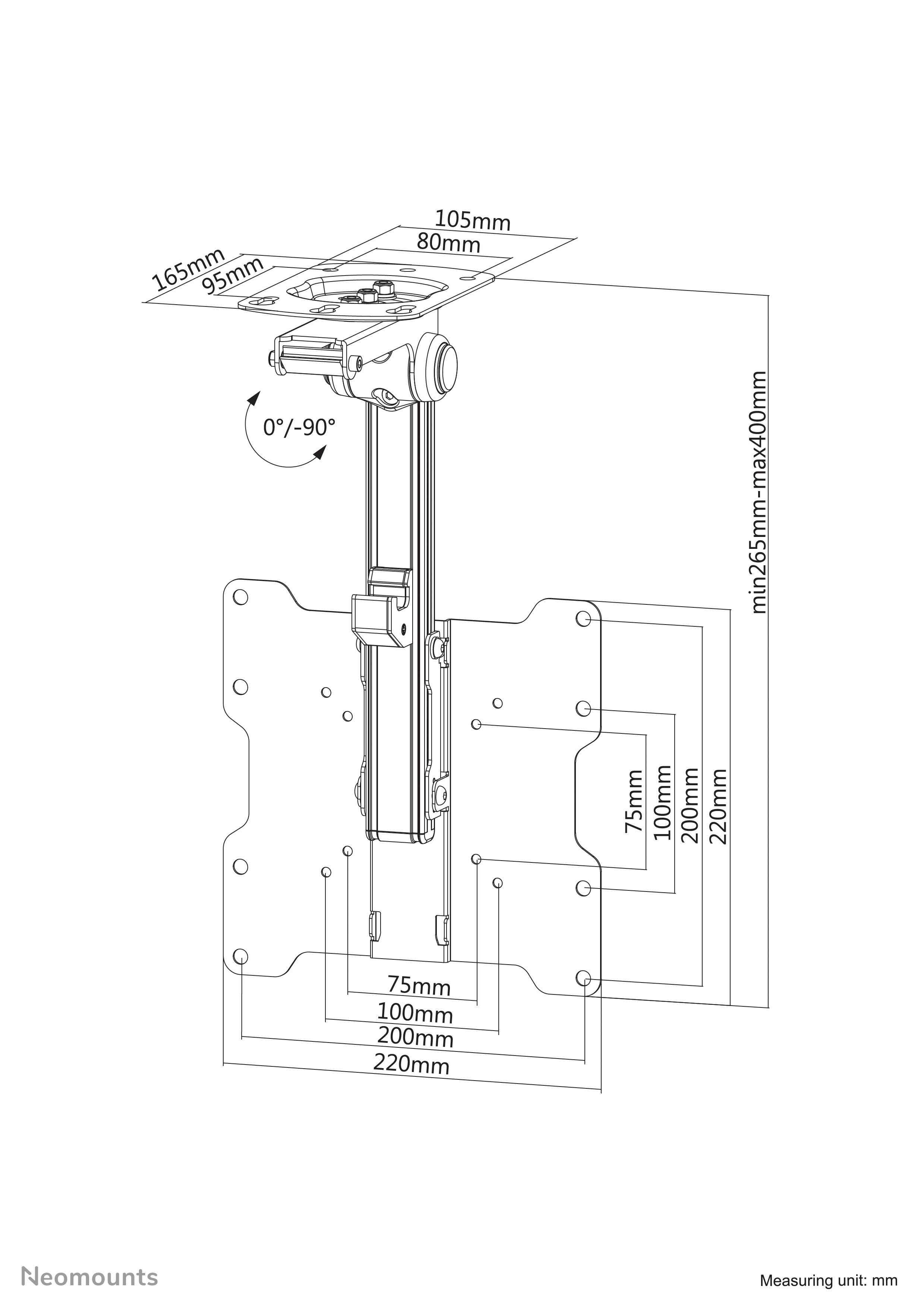

'Illustration of an adjustable mounting bracket with dimensions in mm. Shown: Tilt angle 0°-90°, min. 265 mm to max. 400 mm height.'

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Neowmounts by NewStar Flat Panel Ceiling Mount

Holder type: Tiltable
Supports all VESA standards up to 200 x 200 mm
Suitable for displays sized (range): 25,4 cm (10") - 101,6 cm (40")
Load capacity (max.) 20 kg

Technical specifications

Product type: TV ceiling mount

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,4 cm (10,4")
26,7 cm (10,5")
27,4 cm (10.8")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
30.0 cm (10,8")
31,0 cm (12,2")
31,2 cm (12,3")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
35,8 cm (14,1")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
101,6 cm (40")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
Show more

Suitable for: 25,4 cm (10") - 101,6 cm (40")

Holder type: Tiltable

Max. load capacity: 20 kg

: No

: 75 x 75 mm
100 x 100 mm
100 x 200 mm
100 x 75 mm
150 x 100 mm
150 x 75 mm
200 x 100 mm
200 x 200 mm

Rotation: 0°

Tilt range (bottom): 90°

Tilt range (top): 0°

Swivel range (left): 0°

Swivel range (right): 0°

Min. distance to floor/ceiling: 26.5 cm

Max. distance to floor/ceiling: 40 cm

Width: 250 mm

Height: 100 mm

Depth: 450 mm

Factory colour: Black

Weight: 16.8 kg

Dim: (W x H x D) 250 x 100 x 450 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1881483 Neomounts FPMA-C020BLACK TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable

User & Safety Instructions

User & Safety Instructions 1881483 Neomounts FPMA-C020BLACK TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable

Warranty Terms

Warranty Terms 1881483 Neomounts FPMA-C020BLACK TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable

Description

The Neowmounts by NewStar model FPMA-C020BLACK is a rotatable and swiveling ceiling bracket for flat screen and flat screen TVs up to 40" (102 cm). This bracket is a good choice for space-saving suspension, or when wall mounting or floor placement is not an option. Neowmounts by Newstar's tilt (90°) and swivel (90°) technology allows you to adjust the attachment to any viewing angle to take full advantage of the flat screen. The support is easily adjustable in height from 26.5 to 40 centimeters. A unique cable guide hides and guides cables from ceiling to TV. Hide your cables in the column, so it's beautiful and neat. Neowmounts by NewStar FPMA-C020BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The load capacity of this product is 20 kg. The ceiling bracket is suitable for screens with VESA hole patterns 75x75 to 200x200mm. Various other hole patterns can be covered using Neowmounts by Newstars VESA adapter plates.Create a clean design ambience for your flat screen TV in the living room, bedroom or home theater. All fastening material is included in the product delivery.
