Name: Neomounts FPMA-C200D TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable, Swivelling, Swivelling, Height-adjustable
Brand: Neomounts
SKU: 1300692
Availability: BackOrder

'Two screens attached to a central ceiling mounting system are facing in opposite directions.'

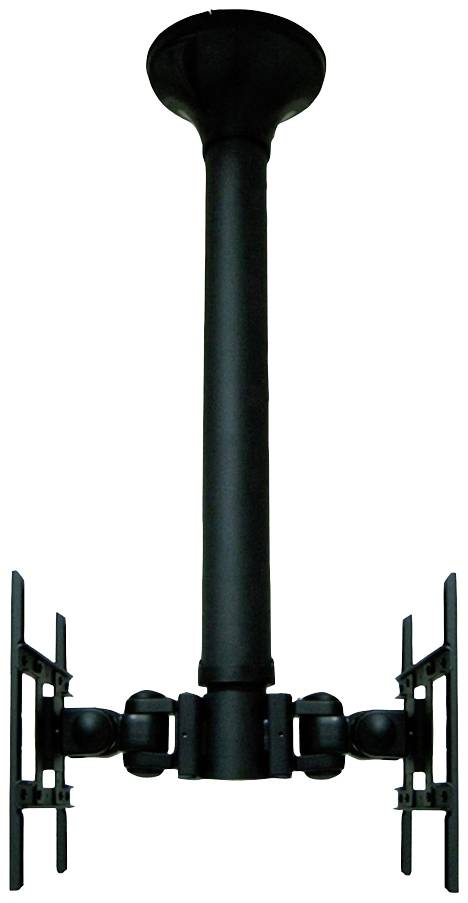

A black ceiling-mounted monitor bracket with adjustable arms hanging downwards. Ideal for office environments.

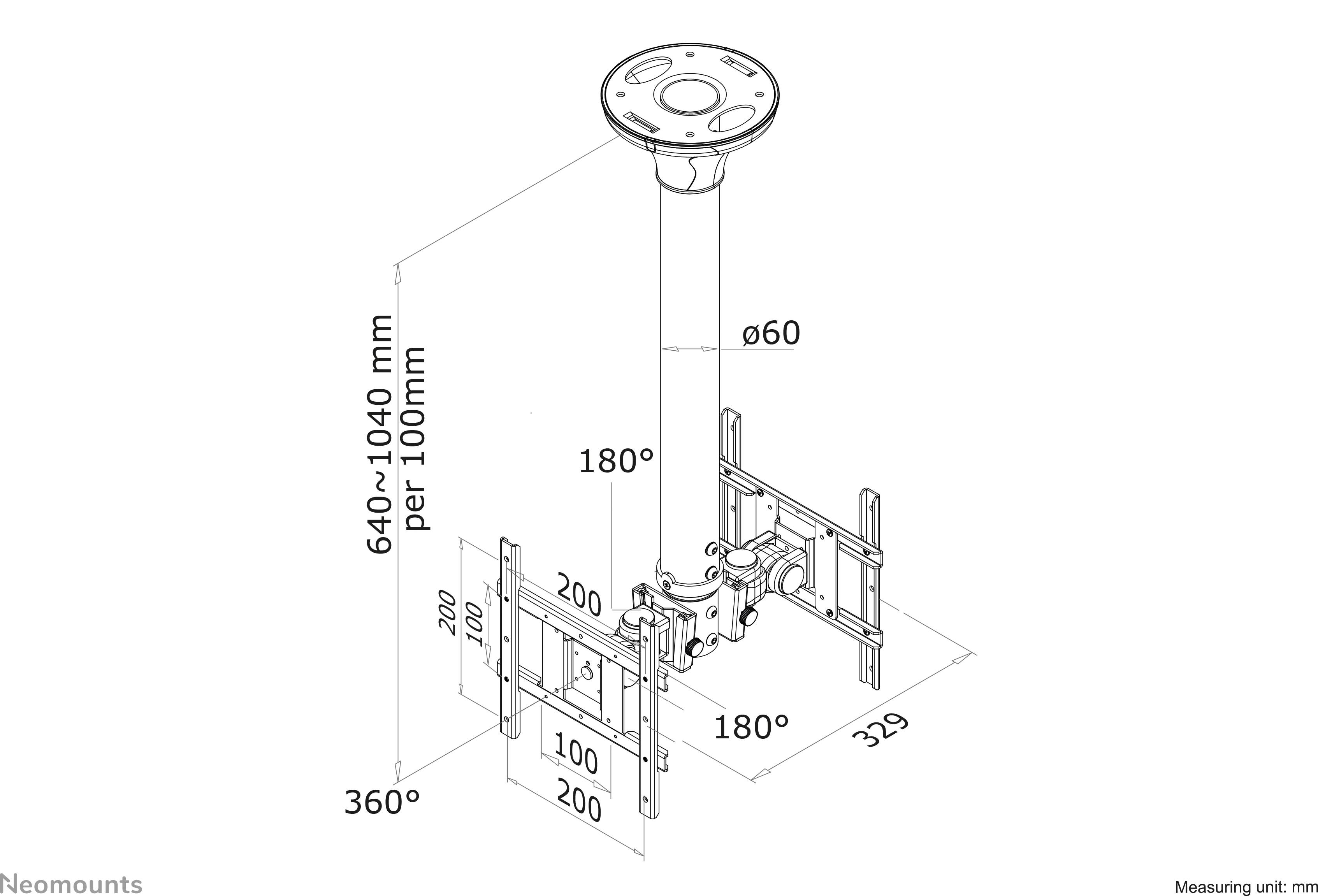

Technical drawing of a ceiling mount with rotatable joints and dimensions in millimetres. Depicts rotations and height adjustment.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 189.99 / piece)

€ 189.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FPMA-C200D

Holder type: Tiltable, Swivelling, Swivelling, Height-adjustable
Supports VESA standards up to
Suitable for displays sized (range): 25,4 cm (10") - 101,6 cm (40")
Load capacity (max.) 40 kg

Technical specifications

Height adjustment: Y
Rotation: 360°
Tilt angle: 0 - 180°
Swivel angle: 180°
Height adjustment range: 640 - 1050 mm
Maximum screen size compatibility: "101.6 cm (40"")"
Maximum weight (capacity): 40 kg
Minimum screen size compatibility: "25.4 cm (10"")"
Number of displays supported: 2
VESA mounting interfaces compatibility: 75 x 75, 200 x 200 mm
Colour of product: Black

Product type: TV ceiling mount

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
Show more

Suitable for: 25,4 cm (10") - 101,6 cm (40")

Holder type: Tiltable
Swivelling
Swivelling
Height-adjustable

Max. load capacity: 40 kg

: No

: 75 x 75 mm
100 x 100 mm
100 x 200 mm
200 x 100 mm
200 x 200 mm

Rotation: 360°

Tilt range (bottom): -90°

Tilt range (top): +90°

Swivel range (left): 90°

Swivel range (right): 90°

Min. distance to floor/ceiling: 64 cm

Max. distance to floor/ceiling: 104 cm

Width: 20 cm

Height: 74 cm

Depth: 19 cm

Factory colour: Black

Weight: 8.5 kg

Dim: (W x H x D) 20 x 74 x 19 cm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1300692 Neomounts FPMA-C200D TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable, Swivelling, Swivelling, Height-adjustable

User & Safety Instructions

User & Safety Instructions 1300692 Neomounts FPMA-C200D TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable, Swivelling, Swivelling, Height-adjustable

Information

Information 1300692 Neomounts FPMA-C200D TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable, Swivelling, Swivelling, Height-adjustable

Warranty Terms

Warranty Terms 1300692 Neomounts FPMA-C200D TV ceiling mount 25,4 cm (10") - 101,6 cm (40") Tiltable, Swivelling, Swivelling, Height-adjustable

Description

The NewStar ceiling mount, model FPMA-C200D is a dual-sided tilt- and swivel ceiling mount for flat screens up to 40”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. NewStars’ unique tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 105 centimeters. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. NewStar FPMA-C200D has two pivot points and is suitable for screens up to 40" (100 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using NewStar VESA adapter plates. All installation material is included with the product.
