Name: OBO Bettermann 5015075 1809 NR Electrical bonding 1 pc(s)
Brand: OBO Bettermann
SKU: 1962624
Availability: InStock

'Isolated Measuring Bus Bar Connector' with white cover, exposed brass rail underneath, suitable for electrical installations.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design = structure fix
Version = with cover
Insulator = Yes
Height = 44.5 mm
Width = 52 mm
Length = 188 mm
Number of connections round conductor total = 1
Number of connections round conductor 8 mm = 0
Number of connections round conductor 10 mm = 0
Number of connections round conductor 8-10mm = 1
Number of connections ribbon cables up to 30 mm = 1
Number of connections ribbon cables up to 40 mm = 0
Number of ports line up to 6 mm² rigid = 0
Number of ports line up to 16mm² rigid = 0
Number of connections cable up to 25 mm² rigid = 7
Number of connections cable up to 95 mm² rigid = 0
Material of the contact rail = brass
Surface of the contact rail = Nickel-plated
Material of the clip = Steel
Surface of the clip = galvanically/Electrolytically galvanised

Product type: Electrical bonding

Manufacturer part #: 5015075

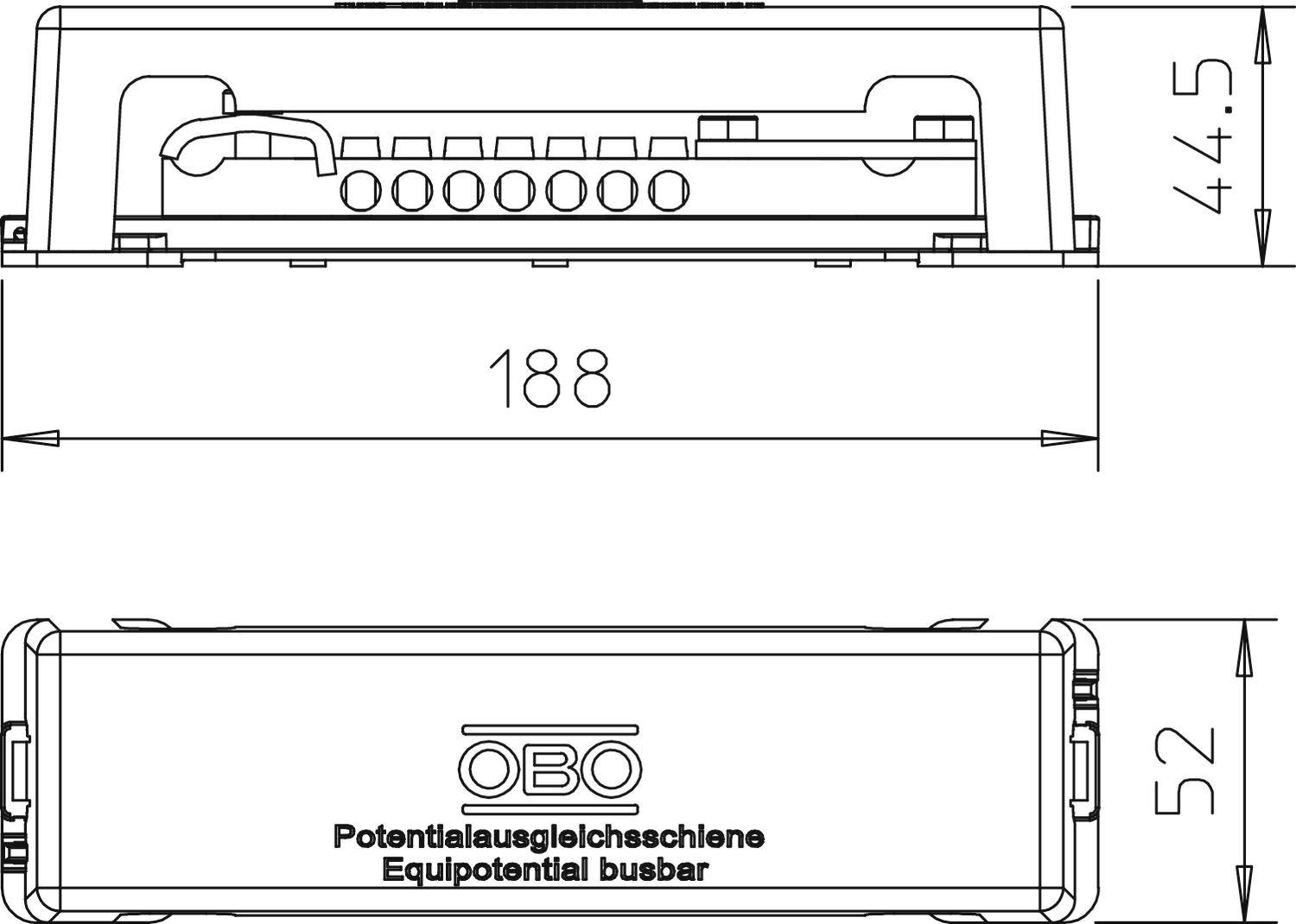

Dim: (L x W x H) 188 x 52 x 44.5 mm

Length: 188 mm

Width: 52 mm

Height: 44.5 mm

Content: 1 pc(s)

: 52

: With covering cap

: 44.5 mm

: Surface mounting fix

: 188 m

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1962624 OBO Bettermann 5015075 1809 NR Electrical bonding 1 pc(s)

Description

Equipotential bonding rail for the potential compensation according to DIN VDE 0100-410/540 as well as lightning protection potential compensation according to DIN VDE 0185-305. Base plate and cover made of polystirene, gray, contact strip made from nickel-plated brass, screws and uberleger made of steel, galvanised, lightning current carrying capacity 100 kA (10/350). Connection options: 7x single and multi-lines up to 25 mm² or fine-stranded cables up to 16 mm², 1 x round conductor Rd 8-10, 1 x flat ribbon to FL 30 or round conductor Rd 8-10.
