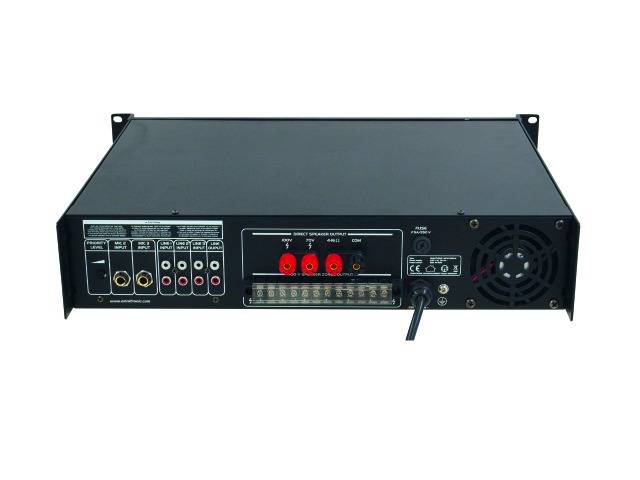

An amplifier shown from the rear with various audio connections, including red and white RCA sockets, and ventilation fans.

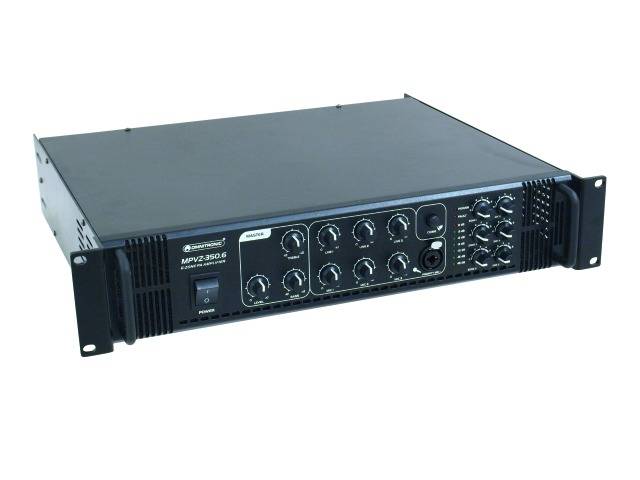

A black audio mixer with multiple faders and connections on the front panel, suitable for professional sound setups.

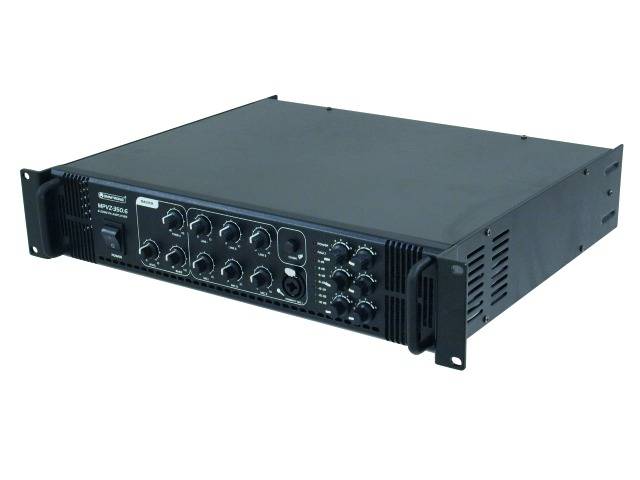

'Black and grey audio mixer with multiple buttons and controls, used for managing audio signals in professional audio setups.'

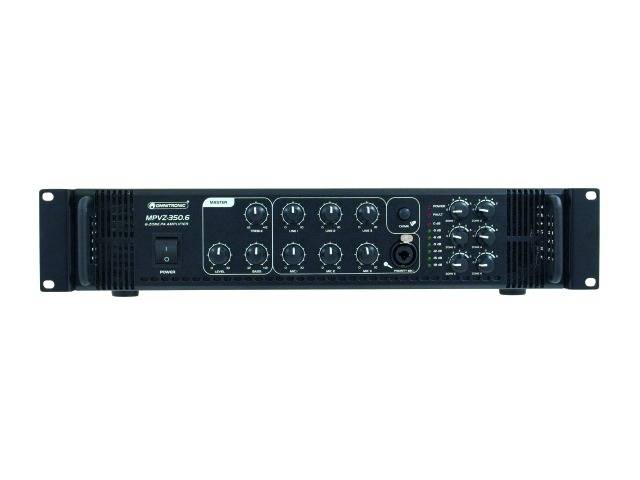

Black audio amplifier with multiple rotary controls and switches on the front panel, suitable for professional sound applications.

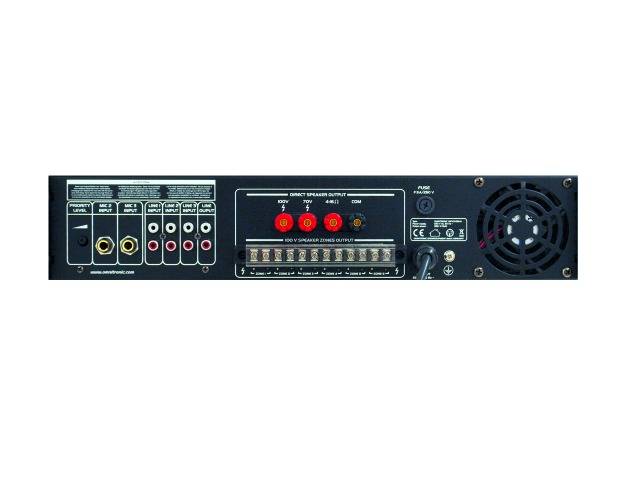

Back of an audio amplifier with various connections, including speaker terminals, RCA inputs, and a fan.

1/6

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 536.97 / piece)

€ 536.97

plus VAT.

Report legal concerns

Highlights & Details

Omnitronic MPVZ-350.6 MIXERS

6-zone ELA-mono mixer amplifier

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connected wattage 700 W
Power output 350 W RMS
Output type 70 V, 100 V or 4-16 Ohm
OUTPUT CURRENT 5 A (70 V), 3.5 A (100 V)
Microphone inputs: 5 mV, 600 Ohm
Line inputs 300 mV, 10 kOhm
Loudspeaker outputs: Screw terminal, terminal strip
Frequency response: 80 Hz - 16 kHz
Distortion: 0.5% (1 kHz)
Noise voltage spacing 85 dB (Line), 75 dB (Mic)

Dim: (L x W x H) 9.2 x 48.3 x 38.5 cm

Weight: 16 kg

Height: 38.5 cm

Length: 9.2 cm

Width: 48.3 cm

Interfaces: Line in
Mic input combo jack (XLR, 6.35 mm jack)
Mic 6.35 mm in

No. of zones: 6-zone

Output type (PA amplifier): 70 V
100 V

RMS power: 350 W

Product type: PA amplifier

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313528 Omnitronic MPVZ-350.6 PA amplifier 350 W 6-zone

Description

6-zone ELA-mono mixer amplifier · Comfortable control for ELA speakers via 6-zone technology · 6 ELA zone outputs (100 V) each with 5-stage volume control · Master ELA speaker output (70 and 100 V) · Connection option for low-resistance loudspeakers (4-16 ohms) · 2 rear microphone inputs (6.3 mm jack, unbalanced) · 1 microphone input on the front panel (combination XLR/6.3 mm jack, unbalanced) with adjustable priority function · All microphone inputs with separate volume controls · 3 line inputs (stereo cinch) with separate volume controls · 1 line output (stereo cinch) · Chime, switchable · Treble and bass sound control for output signal · 7-fold LED-level display · Fan cooled · Protective circuits with LED display: Overvoltage, short circuit, switch-on delay · Rack installation
