Name: Omnitronic PAP-650 PA amplifier 650 W
Brand: Omnitronic
SKU: 313096
Availability: InStock

A black lacquered audio amplifier, Model PAP-650, in a 19-inch rack-mount configuration, with control knob and ventilation slots.

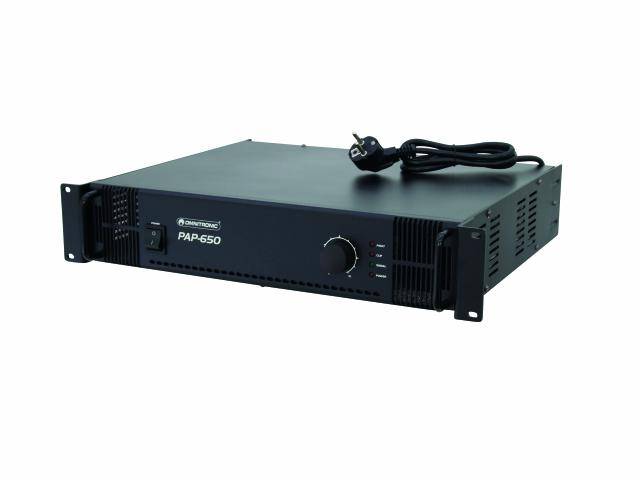

Black PAP-650 audio amplifier unit with volume control and ventilation slots, suitable for rack mounting.

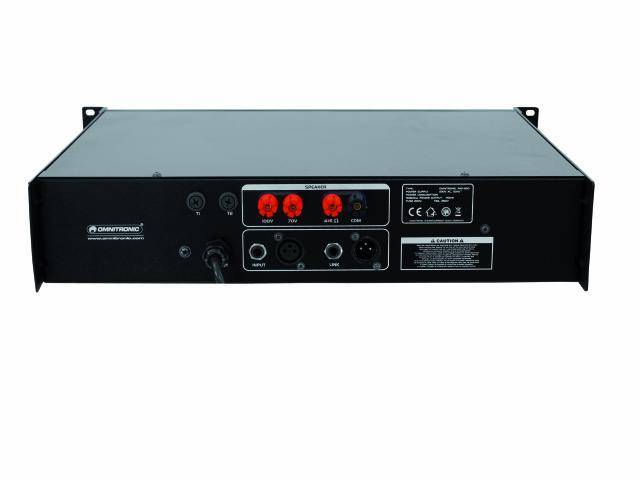

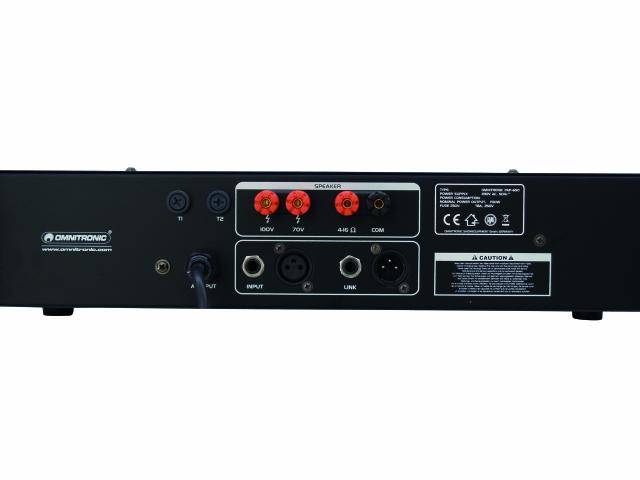

Back of an electronic audio device with various connection options, including speaker, RCA, and power cable ports.

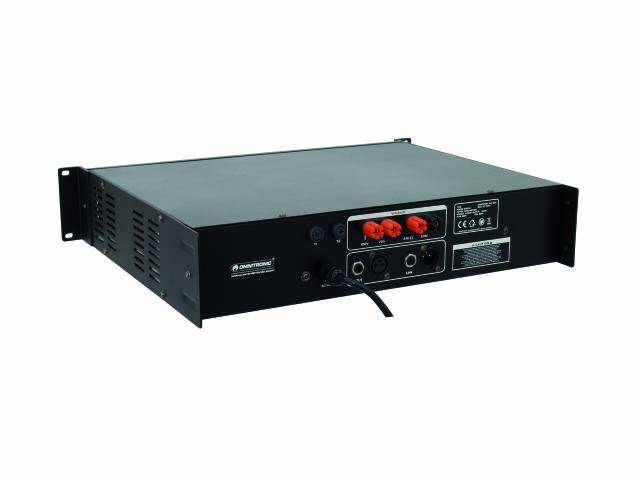

Black amplifier in rack format, with connection options on the rear panel for speakers and power supply.

Black amplifier in rack format, model 'Omnitronic PAP-650', with large volume control and power on/off switch on the front panel.

A black amplifier with 'PAP-650' written on the front panel. On the left is a switch, and on the right is a large control knob.

1/7

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 655.00 / piece)

€ 655.00

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

OMNITRONIC PAP-650 ELA-MIX AMPLIFIER

PA Amplifiers

Technical specifications

Power supply: 230 V AC, 50 Hz
Power output 650 W RMS
OUTPUT CURRENT 5 A/ 70 V; 3.5 A/ 100 V.
Speaker outputs 70 V, 100 V or 4-16 ohm
Input sockets: XLR-, jack-mounted socket
Output sockets: XLR, jack socket, screw terminals
Line input 300 mV, 10 kOhm
Frequency response: 80 Hz - 16 kHz
Distortion: 0.5 %/ 1 kHz
Noise voltage distance (line): 90 dB
Protective circuits: Overheating, overload, short circuit, DC voltage,
Soft start-up
Display: Power, fault, clip, signal
Rack installation with 2 HE

Product type: PA amplifier

RMS power: 650 W

Dim: (L x W x H) 9.2 x 48.3 x 38.5 cm

Weight: 18 kg

Output type (PA amplifier): 70 V
100 V

Width: 48.3 cm

Height: 38.5 cm

Length: 9.2 cm

Interfaces: Line in
XLR out
3.5 mm jack

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313096 Omnitronic PAP-650 PA amplifier 650 W

Description

PA Amplifiers · 1 line input (either XLR or 6.3 mm jack) · 1 loop-through output (either XLR or 6.3 mm jack) · Operation with 70V/100 V or 4-16 ohm · Master controller · LED display for power, signal, clip and fault · Protective circuits: Overload, short circuit, switch-on delay, overheating, DC voltage · Load monitoring and performance monitoring · Rack installation

This text is machine translated.
