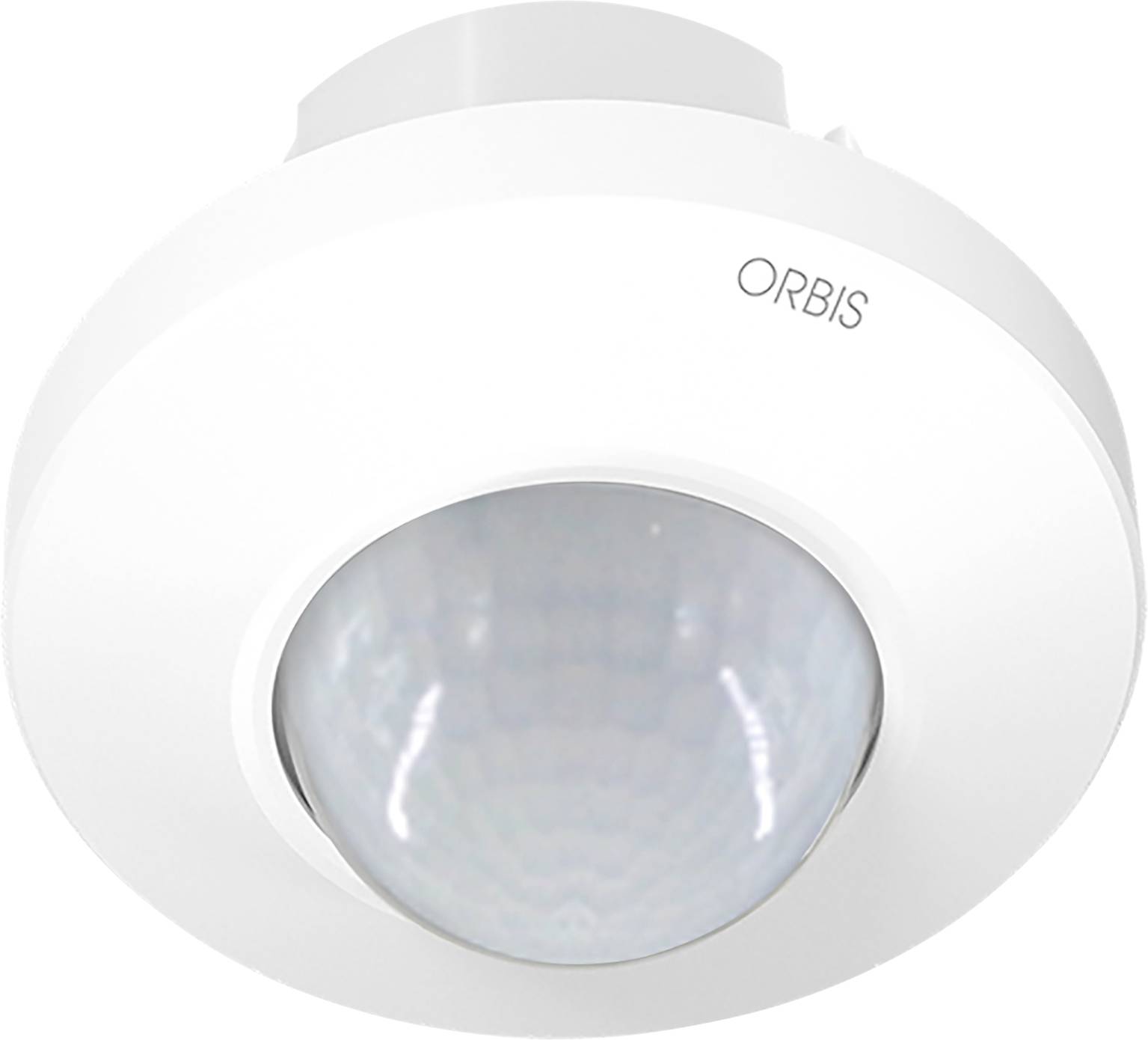

ORBIS Zeitschalttechnik OB137812 Flush mount, Surface-mount PIR motion detector 360 ° White IP20, IP54
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
COMBIMAT 360°-presence or motion detector for the ceiling mounting
- Large detection range with up to 24 meters in diameter
- Flexible mounting options: Flush-mounted, ceiling installation (e.g. cavity ceiling/socket) or surface-mounted (with wall-mounted socket)
- Input for external buttons for manual, time-controlled switching
- "Capture mode" (learn mode) for simple storage of the current twilight value
- High protection class IP54 possible in case of surface mounting (IP20 when ceiling-mounted)
Technical specifications
- 1x NO contact (µ contact, isolated)
- Recommended installation height 2.5 m to 3.0 m.
- Protection class II in accordance with EN 60335 when properly installed
- Power consumption 5.5 VA (0.2 W at 50 Hz) / 6.7 VA (0.3 W at 60 Hz)
- Housing material: Self-extinguishing thermoplastic
- Product type
PIR motion detector
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
Surface-mount
- Operating voltage
230 V AC
- Voltage (max.)
253 V AC
- Switching capacity (energy saving bulbs)
360 W
- Switching capacity (light bulbs)
2200 W
- Switching capacity (halogen bulbs)
2200 W
- Switching capacity (LED)
300 VA
- Switching capacity (light tubes)
1200 VA
- Standby current consumption
0.2 mA
- Twilight settings
10 Lux to 2000 Lux
- Time settings
30 seconds to 30 minutes
- Factory colour
White
- Similar RAL
9010
IP20
IP54
- Operating temperature
-20 °C to +45 °C
- Type
COMBIMAT 360° (OB137812)
- Type
Ceiling-motion-/presence detector for automatic light control
- Length
121 mm
- Width
121 mm
- Height
55 mm
- (Ø)
121 mm
- Dim
(Ø x H) 121 mm x 55 mm
- Weight
200 g
- Voltage (min.)
207 V AC
Documents & Downloads
Datasheet
Datasheet 3828181 ORBIS Zeitschalttechnik OB137812 Flush mount, Surface-mount PIR motion detector 360 ° White IP20, IP54
User & Safety Instructions
User & Safety Instructions 3828181 ORBIS Zeitschalttechnik OB137812 Flush mount, Surface-mount PIR motion detector 360 ° White IP20, IP54
Description
Up to 24 meter detection diameter and input for time-controlled switching with additional external sensors, Ideal for long corridors or stairs Learning mode to ensure that the light level below which the lighting is activated is not exceeded.
This text is machine translated.
This text is machine translated.
Features
- Infinitely adjustable or adjustable via learning function selectable twilight threshold
- Continuous adjustable switch-off delay including pulse and test mode
- Input connection for external pushbuttons
- Integrated brightness sensor
- Plug or screw terminals for quick wiring
Scope of delivery
- Motion detector Orbis COMBI MAT 360° (OB137812)
- Mounting accessories (spring clips for ceiling installation / surface mounting adapter housing)
- operating and installation instructions
