Name: ORBIS Zeitschalttechnik OB137820 Surface-mount, Flush mount PIR motion detector 360 ° White IP20
Brand: ORBIS Zeitschalttechnik
SKU: 3828178
Availability: InStock

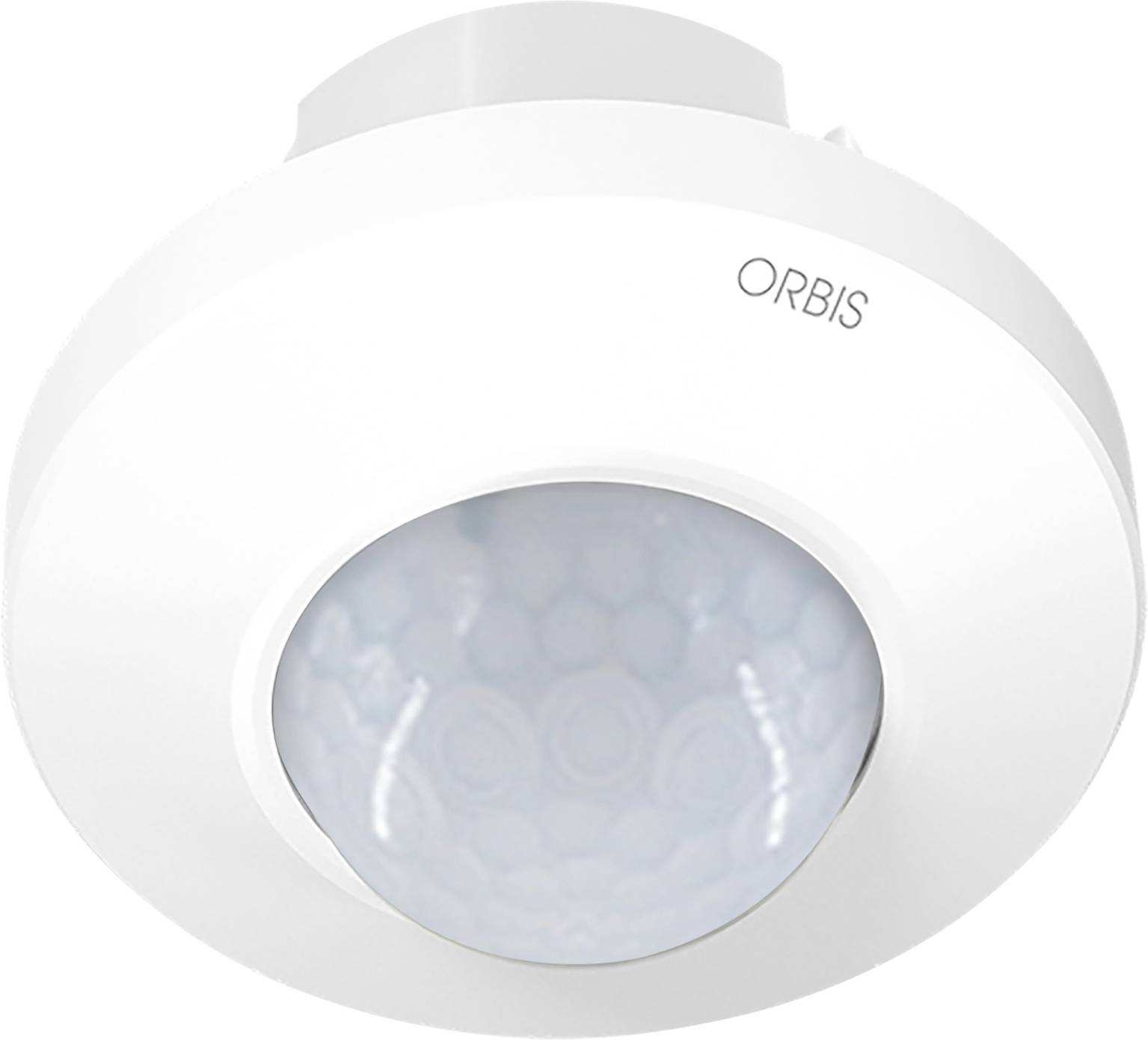

White Orbis ceiling-mounted motion sensor with a domed lens, shown on a plain background.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 73.99 / piece)

€ 73.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

COMBIMAT 12M motion detector

Specially developed for large heights of up to 12 meters
Large detection diameter of up to 20 meters (at a mounting height of 12 m)
Integrated impulse function for the control of acoustic or signal generators
Flexible installation options (cavity ceilings, switch boxes or surface-mounting via optional socket)
"Learning mode" (Learning mode) for fast transfer of the current brightness value

Technical specifications

1x NO contact (µ contact), potential-bound
Recommended installation height: Up to 12 m.
Own power consumption 5.5 VA (0.2 W) at 50 Hz / 6.7 VA (0.3 W) at 60 Hz
Protection class II according to EN 60335 (when properly installed)
Connection type: Screw terminals

Product type: PIR motion detector

Detection angle: 360°

: 12 m

Used at: Indoors

Mounting type: Surface-mount
Flush mount

Operating voltage: 230 V AC

Voltage (max.): 253 V AC

Switching capacity (energy saving bulbs): 360 W

Switching capacity (light bulbs): 2200 W

Switching capacity (halogen bulbs): 2200 W

Switching capacity (LED): 300 VA

Switching capacity (light tubes): 1200 VA

Standby current consumption: 0.3 W

Twilight settings: 10 Lux to 2000 Lux

Time settings: 30 seconds to 30 minutes

Factory colour: White

Similar RAL: 9010

: IP20

Operating temperature: -20 °C to +45 °C

Type: COMBIMAT 12M

Type: Passive infrared presence/motion detector (PIR)

Height: 45 mm

(Ø): 80 mm

Dim: (Ø x H) 80 mm x 45 mm

Weight: 120 g
