Name: ORBIS Zeitschalttechnik OB137850 Flush mount PIR motion detector 360 ° White IP20
Brand: ORBIS Zeitschalttechnik
SKU: 3828180
Availability: InStock

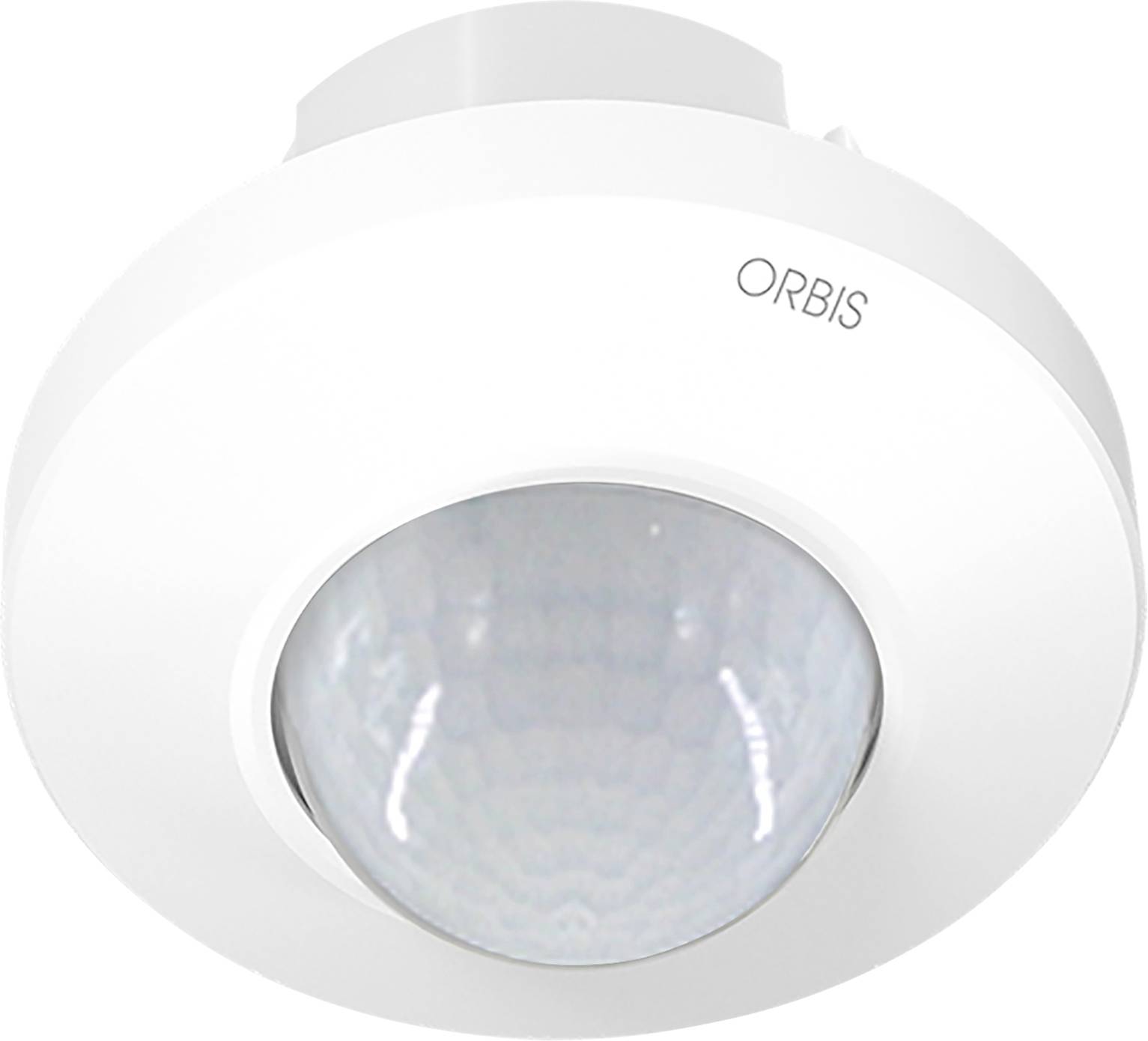

White ORBIS ceiling-mounted motion sensor with a domed infrared lens on a plain background.

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

COMBIMAT KNX presence and motion detectors for ceiling or flush mounting

Direct integration into the KNX bus system without an additional gateway
Wide coverage range with up to 24 m diameter and 2.5 m mounting height
Precise 360° all-round recording thanks to highly sensitive PIR sensor technology
Adjustable sensitivity/sensitivity from 20% to 100%
Versatile installation types (flush-mounted in 65x65 mm box, ceiling or surface-mounted with accessories)

Technical specifications

Recommended installation height: 2.0 m to 4.0 m (optimum 2.5 m)
ETS application program name: OB_KNX_V1.0
Internal power consumption: Approx. 0.24 W (via bus)
TP (twisted-pair) KNX Medium

Product type: PIR motion detector

Detection angle: 360°

: 24 m

Used at: Indoors

Mounting type: Flush mount

Operating voltage: 21 V DC

Voltage (max.): 30 V DC

Standby current consumption: 10 mA

Twilight settings: 10 lux – 2000 lux

Time settings: 30 seconds – 60 minutes

Factory colour: White

Similar RAL: 9010

: IP20

Operating temperature: -20 °C to +45 °C

Type: COMBINED KNX

Type: System-Motion detector / KNX-Presence sensor

Length: 80 mm

Width: 80 mm

Height: 45 mm

(Ø): 80 mm

Dim: (Ø x H) 80 mm x 45 mm

Weight: 120 g

Voltage (min.): 21 V DC

Variants(All information include VAT, plus shipping costs)

Detection angle

Product type

Operating voltage

Voltage (max.)

Used at

Max. range

Mounting type

ORBIS Zeitschalttechnik OB137850 Flush mount PIR motion detector 360 ° White IP20

Item no:3828180

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

This article

360 °

PIR motion detector

21 V DC

30 V DC

Indoors

24 m

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

ORBIS Zeitschalttechnik OB131512 Surface-mount PIR motion detector 200 ° White IP55

Item no:3828177

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

200 °

PIR motion detector

230 V AC

250 V AC

Outdoors

12 m

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

ORBIS Zeitschalttechnik OB1350122N Ceiling Motion detector 360 ° White IP20

Item no:3828175

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

360 °

Motion detector

230 V AC

250 V AC

Indoors

6 m

Ceiling

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

ORBIS Zeitschalttechnik OB136112 Ceiling, Flush mount Motion detector 360 ° Relay White IP20

Item no:3828174

Fast track dispatch on Wed 4 Nov

6 Piece(s)Conrad Electronic

360 °

Motion detector

230 V AC

250 V AC

Indoors

10 m

Ceiling

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

ORBIS Zeitschalttechnik OB137112 Ceiling PIR motion detector 360 ° Relay White IP20

Item no:3828198

Fast track dispatch on Wed 4 Nov

4 Piece(s)Conrad Electronic

360 °

PIR motion detector

230 V AC

253 V AC

Indoors

9 m

Ceiling

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

ORBIS Zeitschalttechnik OB137812 Flush mount, Surface-mount PIR motion detector 360 ° White IP20, IP54

Item no:3828181

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

360 °

PIR motion detector

230 V AC

253 V AC

Indoors

12 m

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

ORBIS Zeitschalttechnik OB137820 Surface-mount, Flush mount PIR motion detector 360 ° White IP20

Item no:3828178

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

360 °

PIR motion detector

230 V AC

253 V AC

Indoors

12 m

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 73.99^*

ORBIS Zeitschalttechnik OB137840 Ceiling, Surface-mount, Structure PIR motion detector 360 ° White IP40

Item no:3828179

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

360 °

PIR motion detector

230 V AC

253 V AC

Indoors

40 m

Ceiling

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

ORBIS Zeitschalttechnik OB137912 Wall Motion detector 200 ° White IP55

Item no:3828176

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

200 °

Motion detector

230 V AC

253 V AC

Indoors

12 m

Wall

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Suevia SU132412 Surface-mount, Wall PIR motion detector 180 ° Relay White IP44

Item no:3828183

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

180 °

PIR motion detector

230 V AC

250 V AC

Outdoors

12 m

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3828180 ORBIS Zeitschalttechnik OB137850 Flush mount PIR motion detector 360 ° White IP20

Description

Integrated into a KNX home or building automation system, the device enables communication with the other elements of the installation such as lighting, air conditioning, safety, access control, etc. with the aim of creating efficient energy management events and enhancing security and comfort in the home or building.
