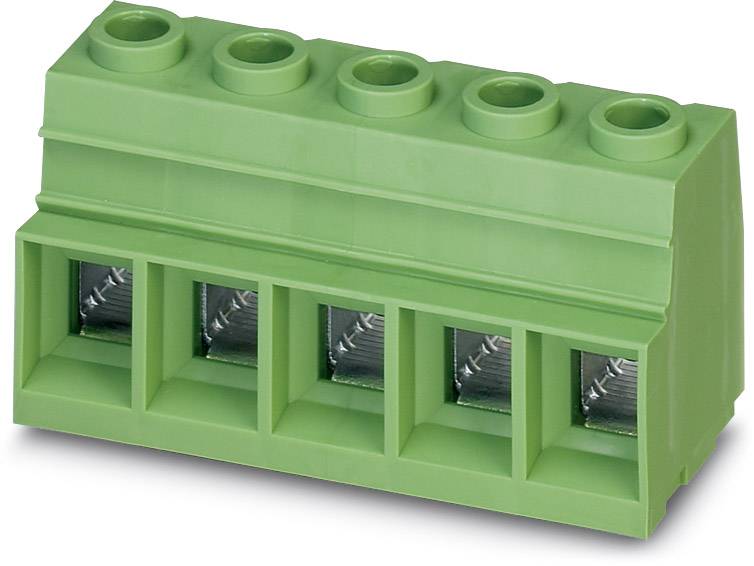

Image similar
Phoenix Contact 1933639 Screw terminal 10.00 mm² Number of pins 6 50 pc(s)
Product type
Screw terminal
CS
10.16 mm
Pins per row
6
Number of pins
6
Connection
Screw terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 12.50 / piece)
€ 689.00
-9 %
€ 625.00
incl. VAT
14-day return policy included
Highlights & Details
PCB terminal block MKDSP 10HV/ 6-10,16 BSNZ WH/BK
- MKDSP 10 HV/6-10 ,16 BSNZ WH/BK
- Industrial packaging, pack of 50
Technical specifications
- Type
MKDSP 10HV/ 6-10,16 BSNZ WH/BK
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
10.16 mm
- Pins per row
6
- Number of pins
6
- Series
MKDSP
- Stripping length (max.)
10.00 mm
- Connection
Screw terminal
Print
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Cross section (flexible) (max.)
10.00 mm²
- Cross section (inflexible) (max.)
10.00 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
6
- Contact material
Tin plated
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1933639
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
1000 V
- Width
60.96 mm
- Height
35.80 mm
- Length
22.00 mm
Documents & Downloads
Datasheet
Datasheet 567781 Phoenix Contact 1933639 Screw terminal 10.00 mm² Number of pins 6 50 pc(s)
User & Safety Instructions
User & Safety Instructions 567781 Phoenix Contact 1933639 Screw terminal 10.00 mm² Number of pins 6 50 pc(s)
Description
PCB terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10.16 mm, Number of positions: 6, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °
Hints
Special order, no right of withdrawal.
