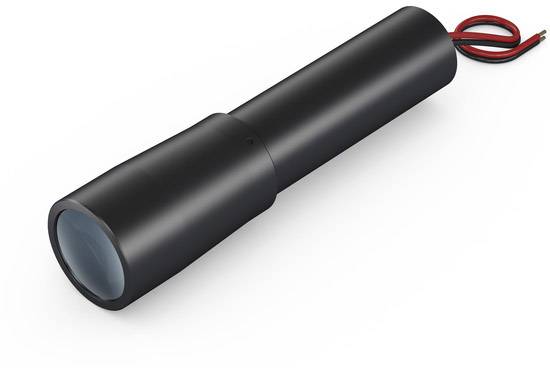

Picotronic Laser module Expander Green 5 mW E 532-5 -5-20 (24 x 120)
Product type
Laser module
Emission characteristics
Expander
Wavelength
532 nm
Power
5 mW
Laser category
2M
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 435.00 / piece)
€ 435.00
incl. VAT
14-day return policy included
Highlights & Details
Laser module Expander
- Green
- Laser category: 2M
- Emission characteristics: Expander
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
E 532-5 -5-20 (24 x 120)
- Emission characteristics
Expander
- Focus properties
Selectable focus
- Factory colour
Green
- Wavelength
532 nm
5 mW
- Laser category
2M
- Clearance
150 m
- Operating voltage
5 V DC
- Operating current
100 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+30 °C
- Min. temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 1696018 Picotronic Laser module Expander Green 5 mW E 532-5 -5-20 (24 x 120)
User & Safety Instructions
User & Safety Instructions 1696018 Picotronic Laser module Expander Green 5 mW E 532-5 -5-20 (24 x 120)
Information
Information 1696018 Picotronic Laser module Expander Green 5 mW E 532-5 -5-20 (24 x 120)
Conformity certificate
Conformity certificate 1696018 Picotronic Laser module Expander Green 5 mW E 532-5 -5-20 (24 x 120)
Description
Hints
Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
