Collection
Relicon by HellermannTyton 435-00008 i-7 / SF Cable sleeve Cable Ø range: 55 - 77 mm Content: 1 pc(s)
Product type
Cable sleeve
Cable Ø (max.)
77 mm
max. cross section
77 mm
Content
1 pc(s)
Manufacturer part #
435-00008
EAN:
Part number:
Item no:
Number
Total (€ 779.00 / piece)
€ 779.00
incl. VAT
14-day return policy included
Highlights & Details

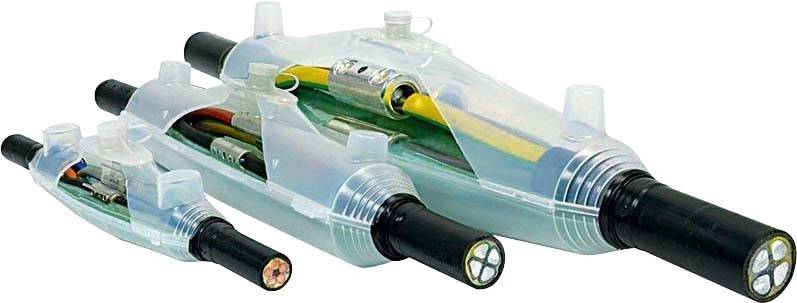

Cast-resin straight-through joint
Technical specifications
- Cross section: 4 x 185
- 4 x 400 mm²
- Product type
Cable sleeve
- Cable Ø (max.)
77 mm
- max. cross section
77 mm
- Content
1 pc(s)
- Manufacturer part #
435-00008
- Dim
(L x W) 870 mm x 140 mm
- Factory colour
Green
Transparent
- Cable Ø up to
55 mm
- Cable Ø range
55 - 77 mm
- Width
140 mm
- Length
870 mm
- RoHS-compliant
Yes
- Type
i-7 / SF
- Standards
DIN EN 50393
Documents & Downloads
Security datasheet
Security datasheet 1539605 Relicon by HellermannTyton 435-00008 i-7 / SF Cable sleeve Cable Ø range: 55 - 77 mm Content: 1 pc(s)
Signal word
Danger
GHS / H Statements
- H 315: Causes skin irritation
- H 317: May cause an allergic skin reaction
- H 319: Causes serious eye irritation
- H 332: Harmful if inhaled
- H 334: May cause allergies or asthma symptoms or breathing difficulties if inhaled
- H 335: May cause respiratory irritation
- H 351: Suspected of causing cancer(state type of exposure only if proven that no other exposure type may cause these defects)
- H 373: May cause damage to organs (name all organs affected if known) through prolonged or repeated exposure (name exposure type if there is compelling evidence that no other exposure type has the same effect)
GHS / P Statements
- P 101: If medical advice is needed, have product container or label at hand
- P 102: Keep away from children
- P 260: Do not inhale dust/fume/gas/mist/vapours/spray
- P 271: Use outdoors or in a well-ventilated area only
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 285: In case of inadequate ventilation use respiratory protection
- P 304+341: IF INHALED: In case of breathing difficulties, take person into fresh air and keep at rest in a position comfortable for breathing
- P 342+311: If experiencing respiratory symptoms: contac Poison Control Center or seek medical advice
- P 362+364: Remove and wash contaminated clothing before re-use
- P 405: Keep locked up
- P 501: Dispose of contents/container at …
Description
The Relicon ® connection fittings are universally for electrical installation
Of plastic cables and wires made of PVC, PE, EPR and VPE (e.g., N(A)YY, NYCWY) in low voltage power mobility.
This text is machine translated.
Of plastic cables and wires made of PVC, PE, EPR and VPE (e.g., N(A)YY, NYCWY) in low voltage power mobility.
This text is machine translated.
Scope of delivery
- Cast-resin Relicon ® PUR33 5 x 1950 ml
- Transparent form shell
- SF-filler neck and adapter
- Safety Gloves
- Sponge for cable anrauen
- Relicon ® Professional 150 PVC insulation tape
Hints
The set contains no connector
