Secatec MKG30OUAK Reed switch 1 change-over 350 V DC, 350 V AC 1 A 60 VA
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
350 V DC
350 V AC
Switching current (max.)
1 A
Connection
Open end cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 41.99 / piece)
€ 49.99
-16 %
€ 41.99
incl. VAT
14-day return policy included
Highlights & Details
Secatec MKG30OUAK Reed switch 1 change-over 350 V DC, 350 V AC 1 A 60 VA
Technical specifications
- Thread length 5 cm
- Service life: 105 - 106 operations
- Protection class IP67
- Product type
Reed switch
- Type
MKG30OUAK
- Contact type
1 change-over
- Switching voltage (max.)
350 V DC
350 V AC
- Switching current (max.)
1 A
- Max. switching capacity
60 VA
- Connection
Open end cable
- Cable length
1.00 m
- Enclosure material
Plastic
- Max. temperature
+125 °C
- Min. temperature
-20 °C

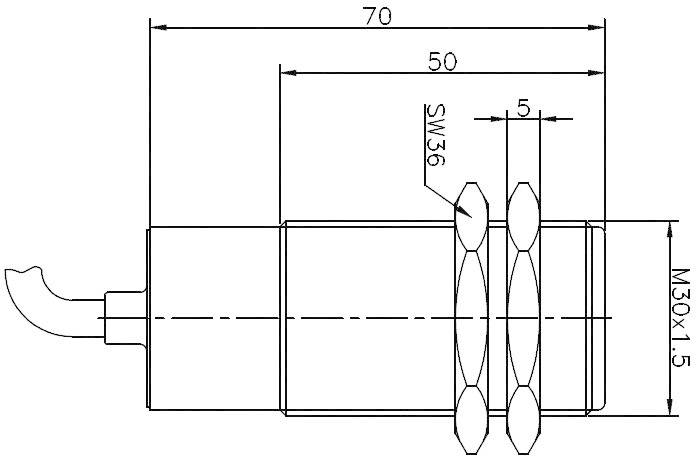

- Length
70 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 70 mm
Documents & Downloads
Datasheet
Datasheet 505360 Secatec MKG30OUAK Reed switch 1 change-over 350 V DC, 350 V AC 1 A 60 VA
User & Safety Instructions
User & Safety Instructions 505360 Secatec MKG30OUAK Reed switch 1 change-over 350 V DC, 350 V AC 1 A 60 VA
Description
Reed sensor mounted in the round plastic housing. The design is primarily intended for industrial applications. Can be used as NC, NO or changeover contact.
This text is machine translated.
This text is machine translated.
Hints
The reed switch is not suitable for direct switching of lights, power supplies, drives, etc., as the maximum permissible current is often exceeded during the switching on/off process. Please use an additional coupling relay with protective circuit.
