Name: Steinel 006532 Ceiling PIR motion detector 360 ° White IP54
Brand: Steinel
SKU: 1668765
Availability: InStock

White Steinel ceiling motion sensor light with a domed frosted lens and honeycomb pattern.

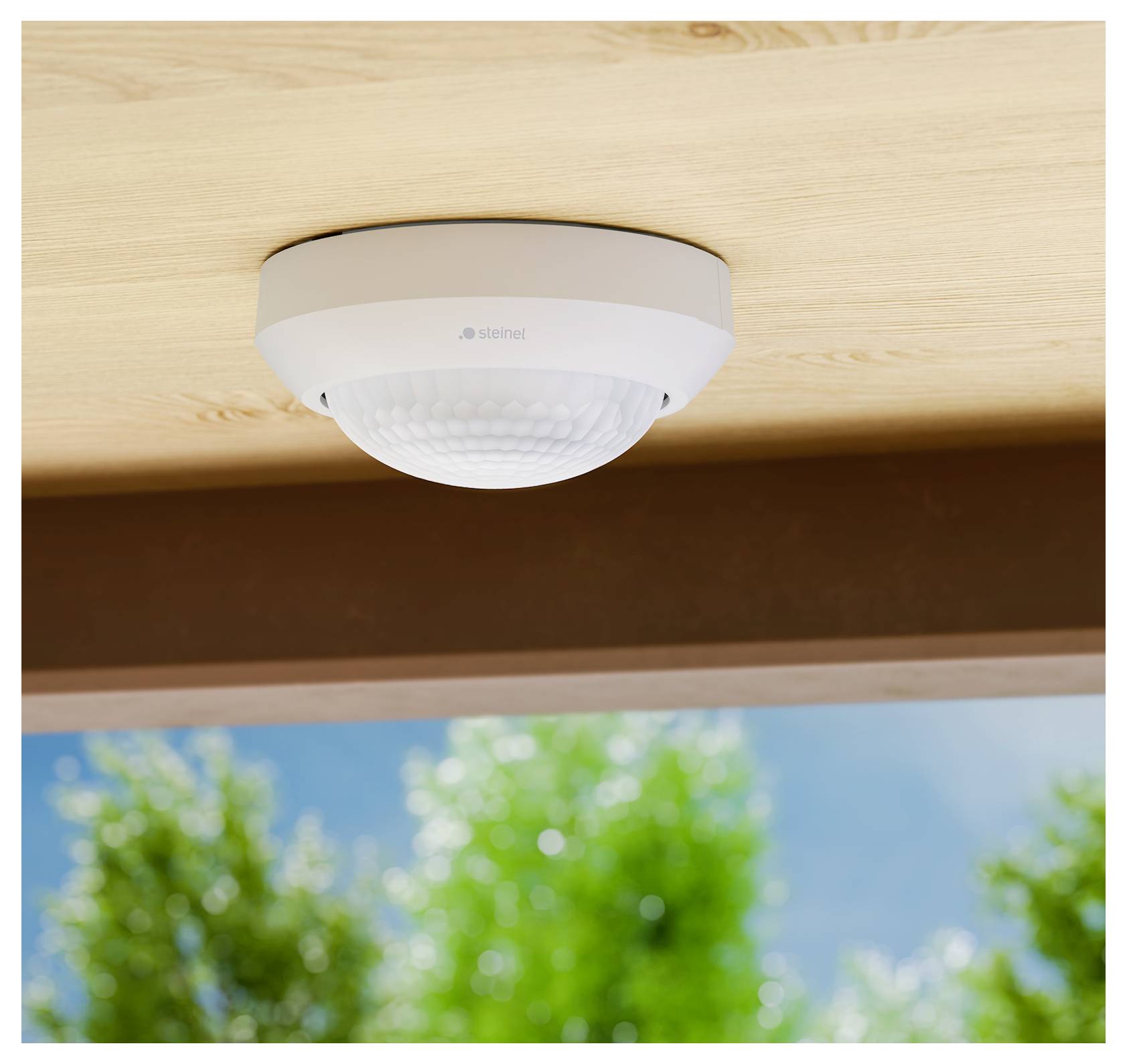

A white ceiling-mounted motion sensor on a wooden overhang, overlooking an outdoor area with blurred trees and sky below.

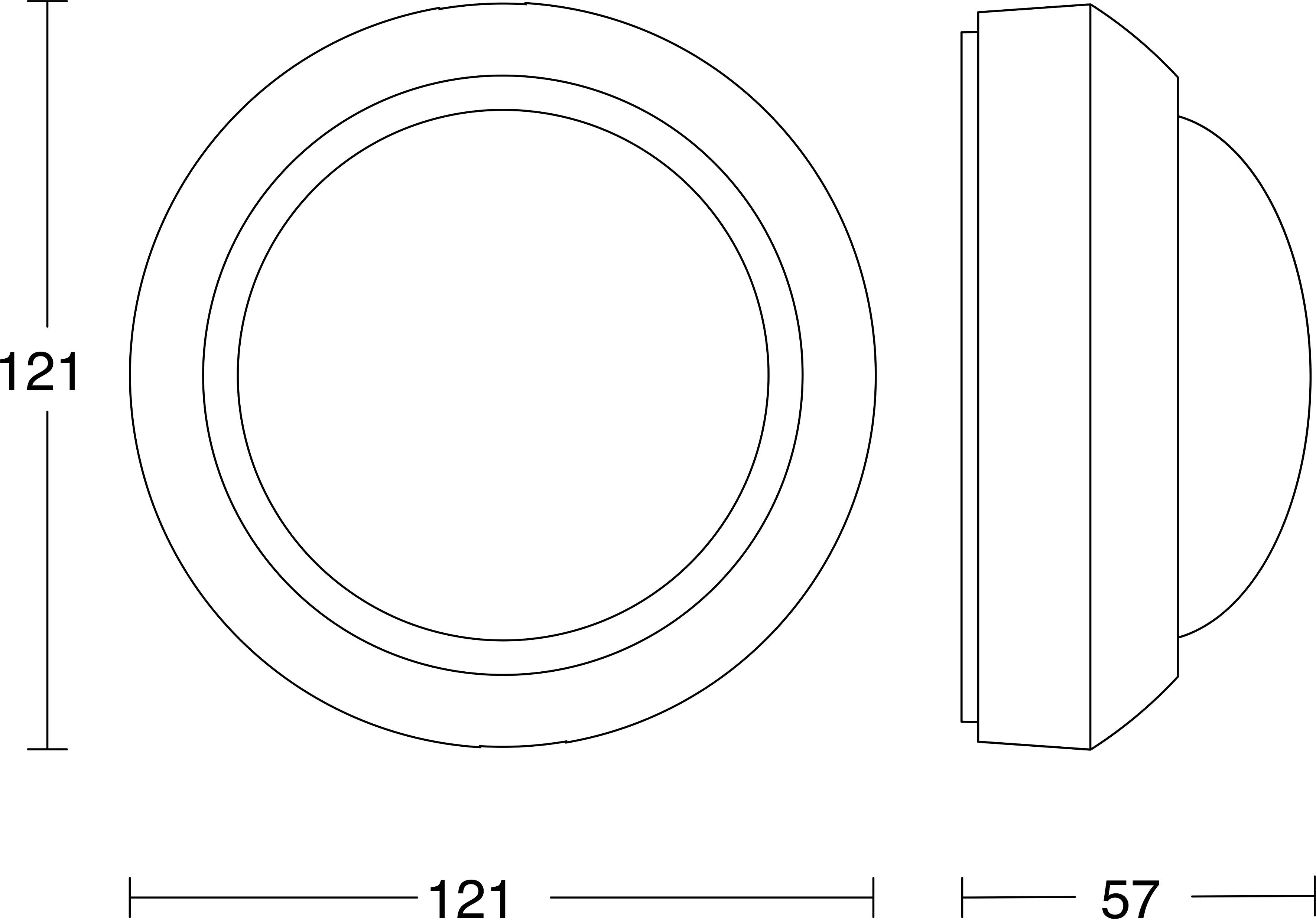

Technical drawing of a round recessed light fixture, shown front and side views with dimensions 121 mm diameter and 57 mm depth.

Four-field infographic on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany, personal customer service.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

22 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by SYGONIX

Sygonix SY-6733036 Ceiling, Surface-mount Ceiling-mount motion detector 360 ° Relay White

Fast track dispatch on Thu 29 Oct

€ 11.99

incl. VAT plus

Highlights & Details

Motion detector IS 360-3 WS

Housing made of UV-resistant plastic
Inconspicuous thanks to colored lens
Continuous light: Switchable, 4 h
Response brightness: 2-1000 lx

Technical specifications

II protection rating
Housing: UV-resistant plastic.

Product type: PIR motion detector

Detection angle: 360°

: 12 m

Used at: Outdoors
Indoors

Mounting type: Ceiling

Operating voltage: 230 V

Switching capacity: 2000 W

Voltage (max.): 240 V

Switching capacity (LED): 400 W W

Switching capacity (light tubes): 2000 W

Twilight settings: 2 - 1000 lx

Time settings: 5 sec - 15 mins.

Factory colour: White

: IP54

Operating temperature: -20 °C...+50 °C

Type: Passive infrared

Type: IS 360-3 WS

Length: 150 cm

Width: 100 mm

Height: 57 mm

(Ø): 121 mm

Dim: (Ø x H) 121 mm x 57 mm

Weight: 0.177 kg

Voltage (min.): 220 V

: Surface mounted (plaster)

: White

: Movement sensor

: TRUE

: 57 mm

: 57 mm

: Other

: Other

: AC

: 50-60 MHz

: 121 mm

: Thermoplastic

: 200 A

: Plastic

: 9010

: IP54

: FALSE

: TRUE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1668765 Steinel 006532 Ceiling PIR motion detector 360 ° White IP54

User & Safety Instructions

User & Safety Instructions 1668765 Steinel 006532 Ceiling PIR motion detector 360 ° White IP54

Warranty Terms

Warranty Terms 1668765 Steinel 006532 Ceiling PIR motion detector 360 ° White IP54

Description

The infrared ceiling sensor, which meets all requirements, is really easy to install. Simply ingenious: Sophisticated technology, which is mounted and adjusted with a few simple steps through a clever installation concept. Thanks to its three Pyro sensors, the infrared surface sensor captures a considerable 360° and achieves a range of up to 12 m. With the help of cover plates the detection range can be adjusted as required. The IS 360-3 is available in black and white. Ideal for ceiling mounting under roof overhang, carports, large house fronts and driveways.

This text is machine translated.
