Name: Steinel 032845 Ceiling PIR motion detector 360 ° White IP54
Brand: Steinel
SKU: 1668762
Availability: InStock

White flush-mount ceiling light with a frosted dome diffuser and circular trim.

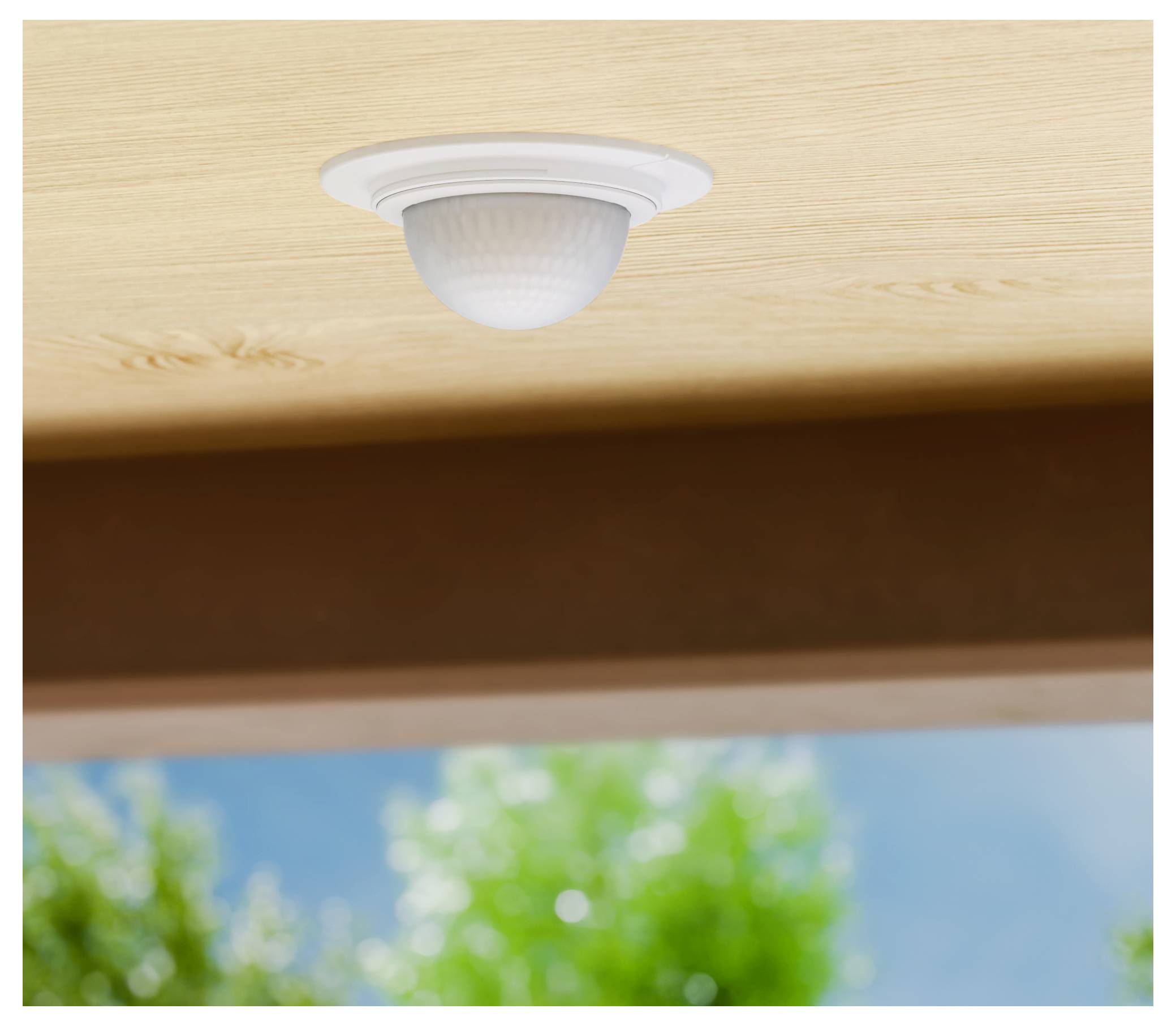

White ceiling-mounted motion sensor on a wood-paneled ceiling, with blurred sky and trees visible below through a window or opening.

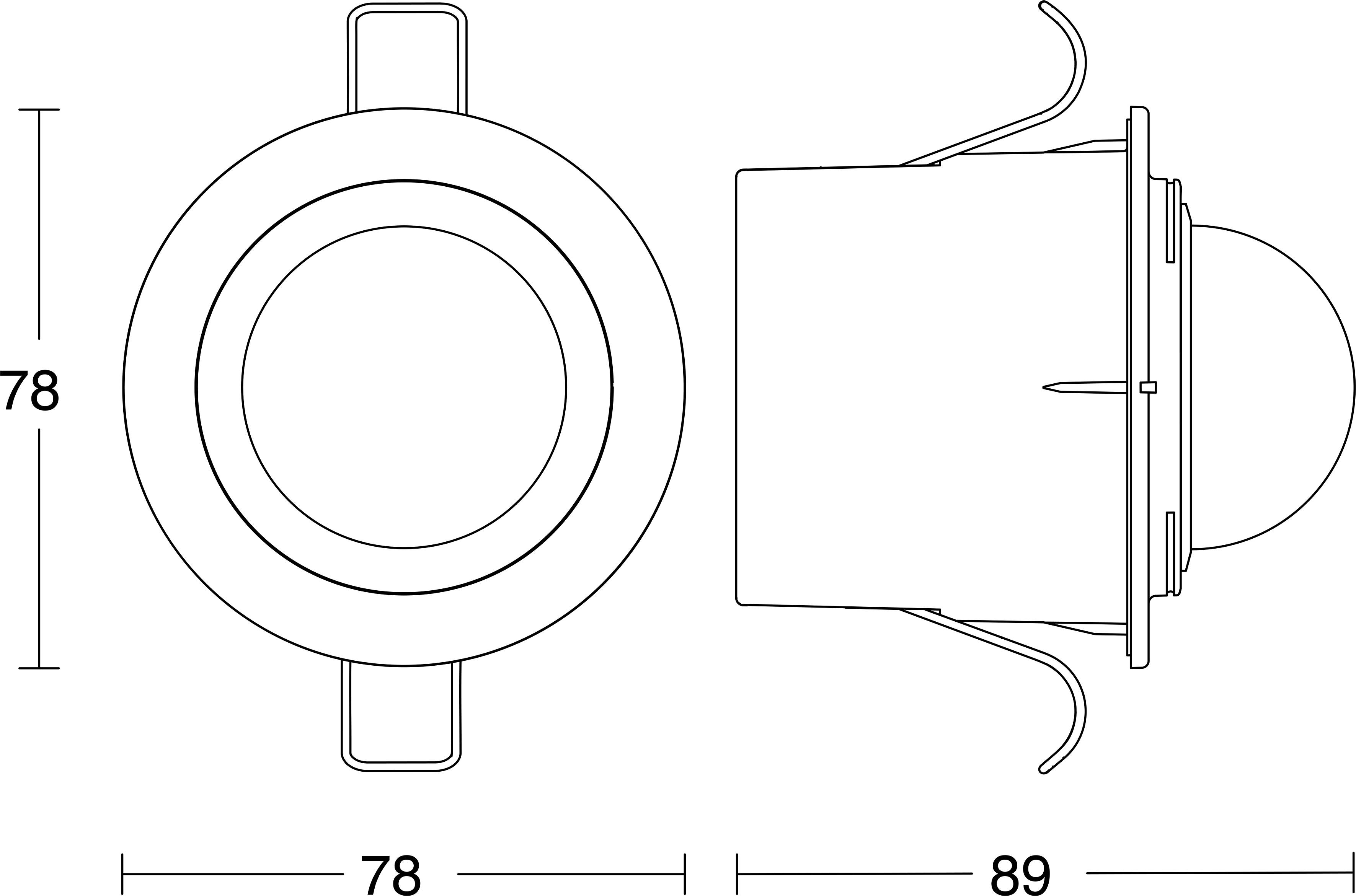

Technical drawing of a round recessed light fixture, shown front and side views with dimensions 78 and 89.

Four areas of STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany, personal customer service.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Motion detector IS 360-1 DE WS

Housing made of UV-resistant plastic
II protection rating
The light-intensity threshold: 2 -2000 Lux

Technical specifications

II protection rating
Housing: UV-resistant plastic.

Product type: PIR motion detector

Detection angle: 360°

: 4 m

Used at: Outdoors
Indoors

Mounting type: Ceiling

Operating voltage: 230 V

Switching capacity: 1000 W

Voltage (max.): 240 V

Switching capacity (LED): 350 W W

Switching capacity (light tubes): 1000 W

Twilight settings: 2 - 2000 lx

Time settings: 8 s - 35 Min.

Factory colour: White

: IP54

Operating temperature: -20 °C...+40 °C

Type: Passive infrared

Type: IS 360-1 DE WS

Length: 150 cm

Width: 100 mm

Height: 78 mm

(Ø): 89 mm

Dim: (Ø x H) 89 mm x 78 mm

Weight: 0.116 kg

Voltage (min.): 230 V

: Surface mounted (plaster)

: White

: Movement sensor

: TRUE

: 89 mm

: 89 mm

: Other

: Other

: AC

: 50-60 MHz

: 78 mm

: Thermoplastic

: 110 A

: Plastic

: 9010

: IP54

: FALSE

: TRUE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1668762 Steinel 032845 Ceiling PIR motion detector 360 ° White IP54

User & Safety Instructions

User & Safety Instructions 1668762 Steinel 032845 Ceiling PIR motion detector 360 ° White IP54

Warranty Terms

Warranty Terms 1668762 Steinel 032845 Ceiling PIR motion detector 360 ° White IP54

Description

Intelligent technology for installation. Infrared motion detector IS 360-1 DE, for outside and inside, ideal for installation in canopies and suspended ceilings, 360° detection angle, range up to 4 m, adjustable time and twilight threshold, coverage area can be restricted by cover plates.
Ideal for installation in canopies and suspended ceilings
