Name: Steinel 034580 Wall PIR motion detector 180 ° Relay Anthracite IP54
Brand: Steinel
SKU: 1763037
Availability: InStock

Black outdoor wall light mounted on a gray exterior wall beside a window.

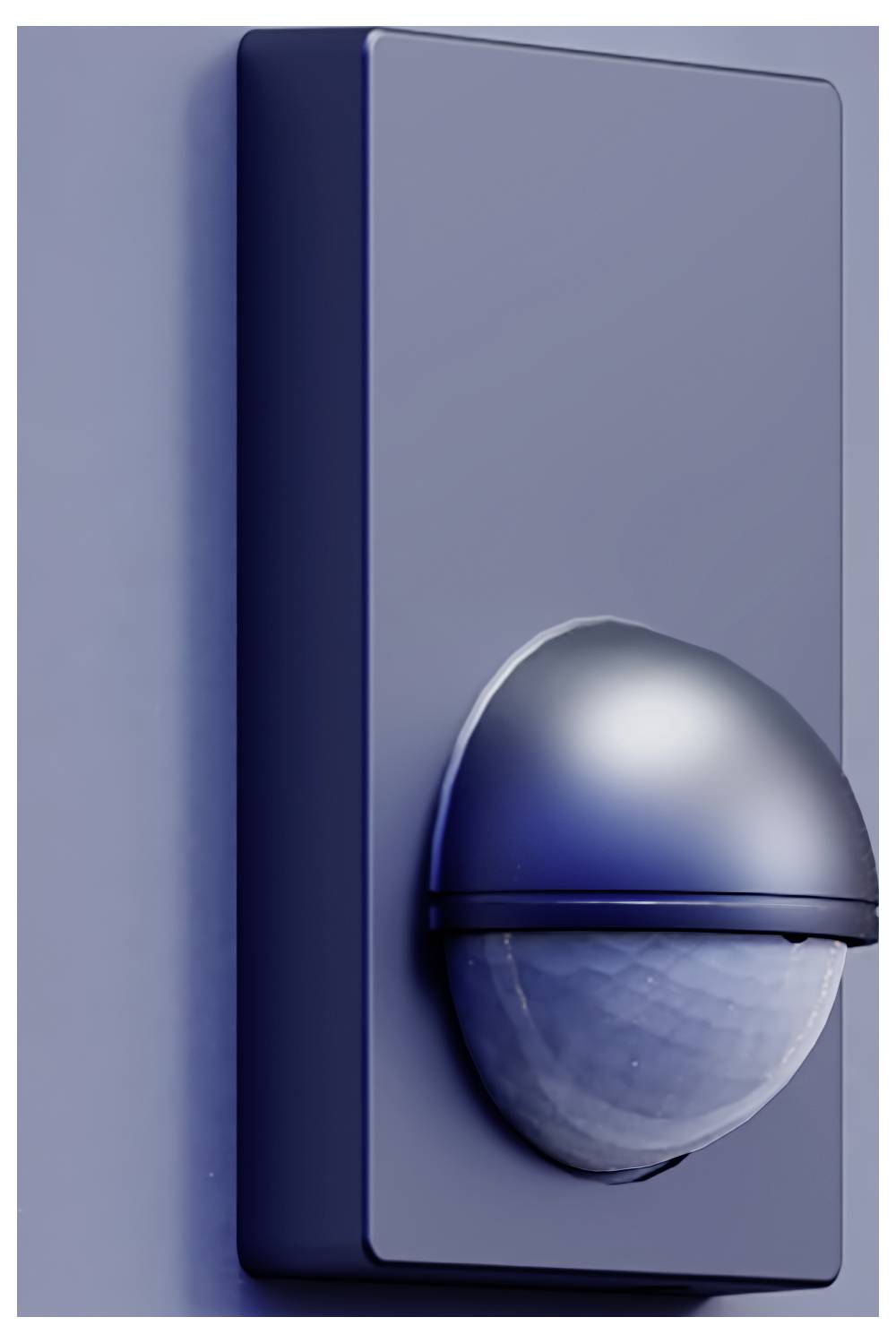

Blue wall-mounted motion sensor or outdoor security light on a rectangular panel, shown close-up against a plain blue background.

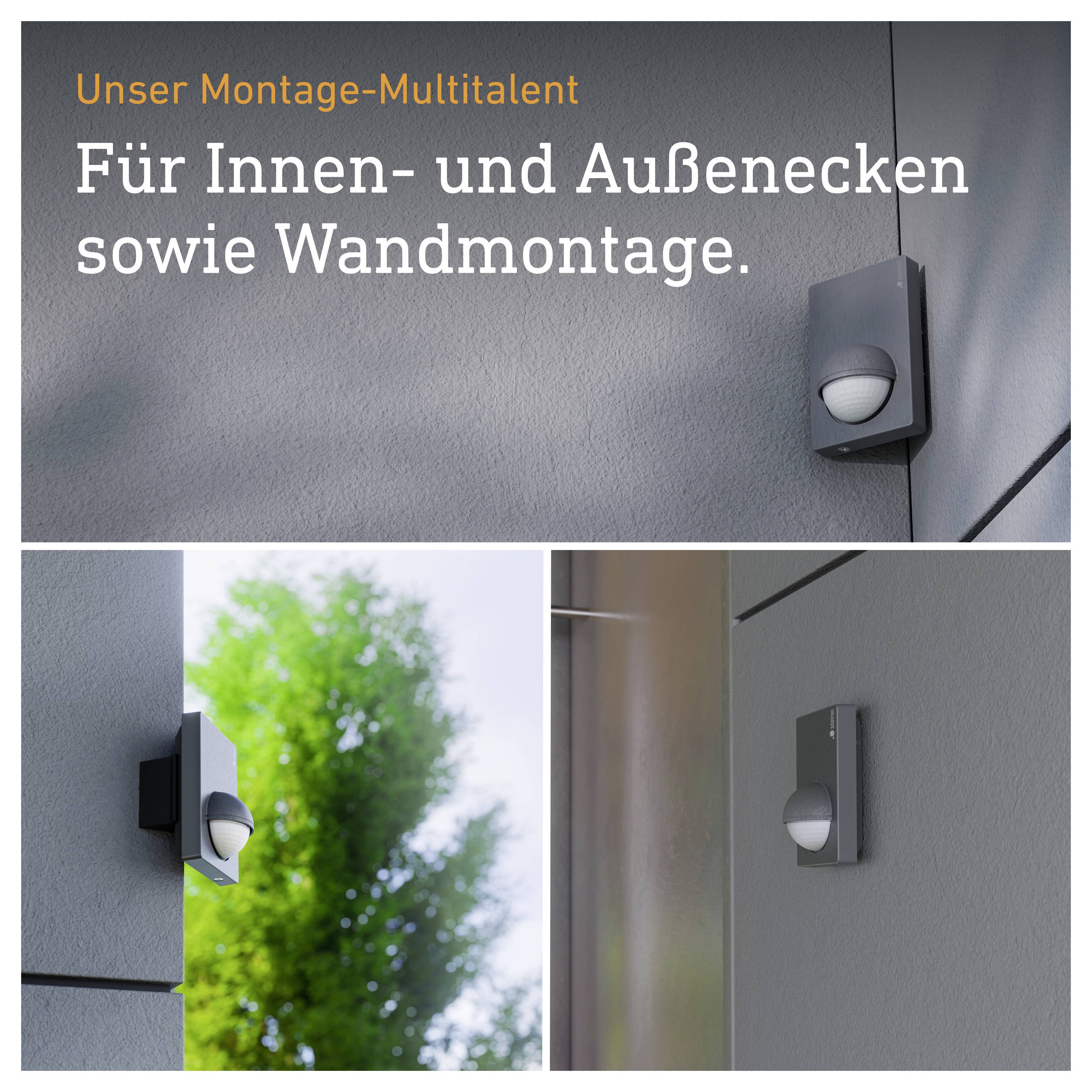

Advertising image of an exterior light: 'Our versatile mounting expert' for indoor and outdoor corners as well as wall mounting.

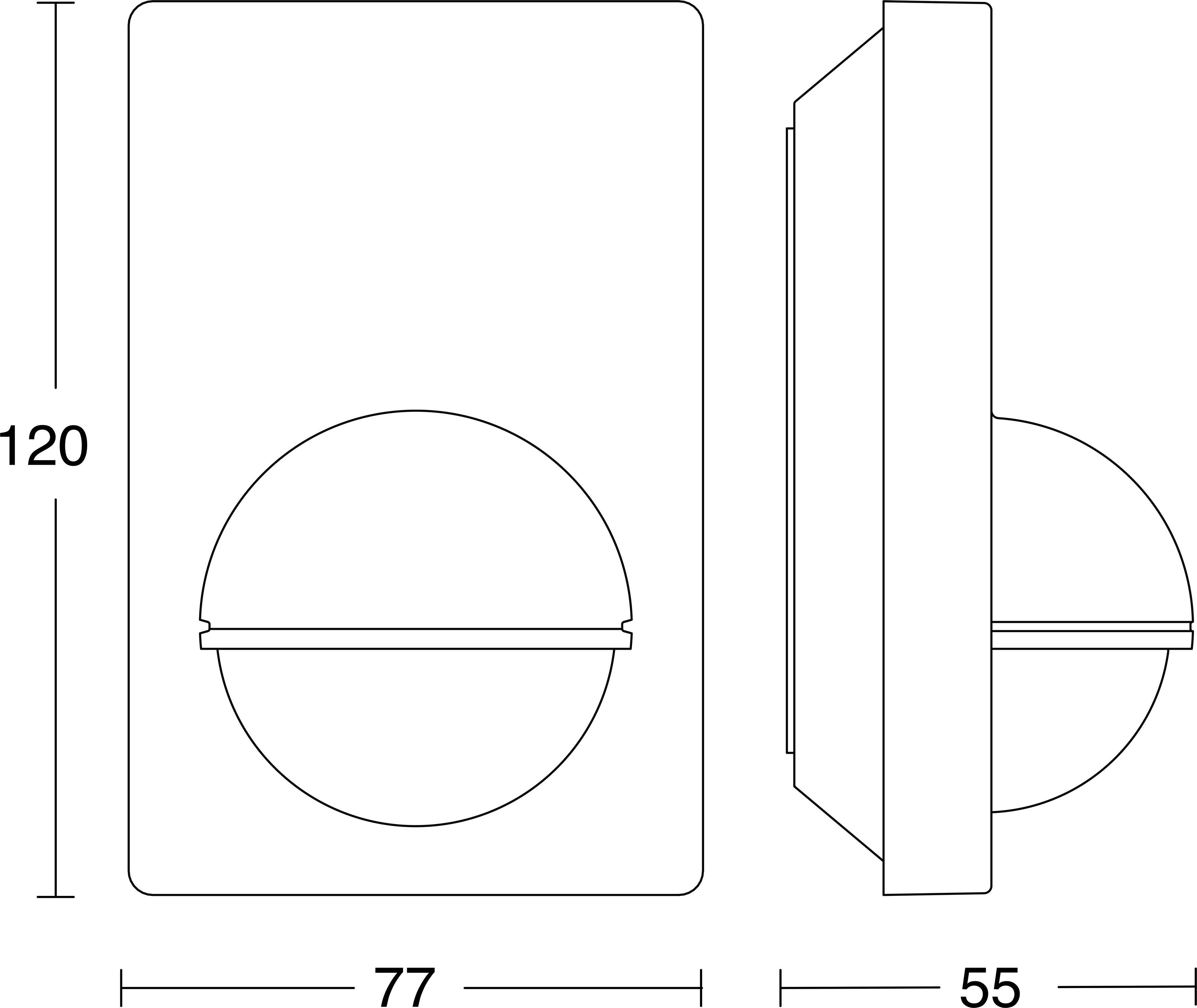

Technical line drawing of a wall switch plate, showing front and side views with dimensions 120, 77, and 55.

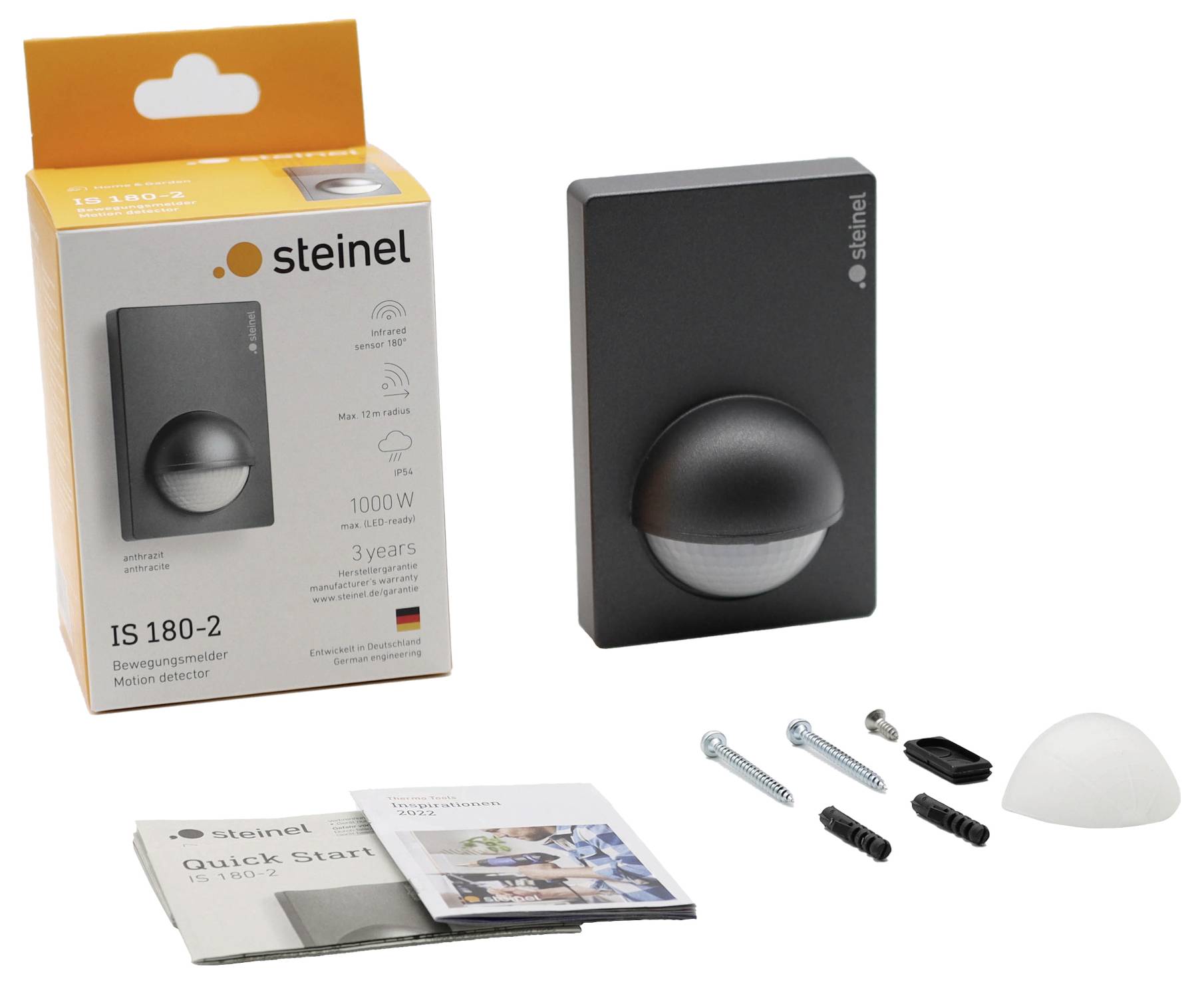

Steinel IS 180-2 motion sensor package with black wall unit, installation screws, anchors, and quick start guide.

STEINEL's quality promise: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Alternative article by SYGONIX

Sygonix SY-6118230 Wall-mounted, Surface-mount PIR motion detector 180 ° Relay White IP44

Fast track dispatch on Thu 29 Oct

€ 8.49

incl. VAT plus

Highlights & Details

Outdoor motion detector is 180-2 unites clean

Switches up to 1000 WIP54

Technical specifications

Depth: 56 mmSensor type: Passive infraredSegment-by-segment detection suppression possible: YesProtection class: 2

Product type: PIR motion detector

Detection angle: 180°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 230 V

Switching capacity (energy saving bulbs): 600 W

Switching capacity (light bulbs): 1000 W

Switching capacity (LED): 350 W W

Switching capacity (light tubes): 500 W

Standby current consumption: 1 W

Twilight settings: 2 - 2000 lx

Time settings: 10s - 15 min

Factory colour: Anthracite

: IP54

Length: 150 cm

Width: 76 mm

Height: 120 mm

Dim: (L x W x H) 150 cm x 76 mm x 120 mm

Weight: 0.13 kg

Voltage (min.): 230 V

: Surface mounted (plaster)

: Anthracite

: 76

: Movement sensor

: TRUE

: 56 mm

: 56 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 110 A

: Plastic

: 7016

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1763037 Steinel 034580 Wall PIR motion detector 180 ° Relay Anthracite IP54

User & Safety Instructions

User & Safety Instructions 1763037 Steinel 034580 Wall PIR motion detector 180 ° Relay Anthracite IP54

Warranty Terms

Warranty Terms 1763037 Steinel 034580 Wall PIR motion detector 180 ° Relay Anthracite IP54

Description

Homeowners favorite. Infrared motion detector IS 180-2, for outside and inside, ideal for large house fronts and driveways, 180° detection angle, range adjustable up to 12 m or up to 5 m, time and twilight threshold adjustable, coverage area can be restricted by cover plates. Two highly sensitive infrared detectors, arranged next to each other at a special angle, make it possible to monitor areas of up to 200m² with seamless reliability.

This text is machine translated.
