Name: Steinel 055790 Flush mount PIR motion detector 180 ° Relay White IP20
Brand: Steinel
SKU: 1762487
Availability: InStock

White wall-mounted motion sensor with a rounded square face and dome lens, used to detect movement for automatic lighting or security.

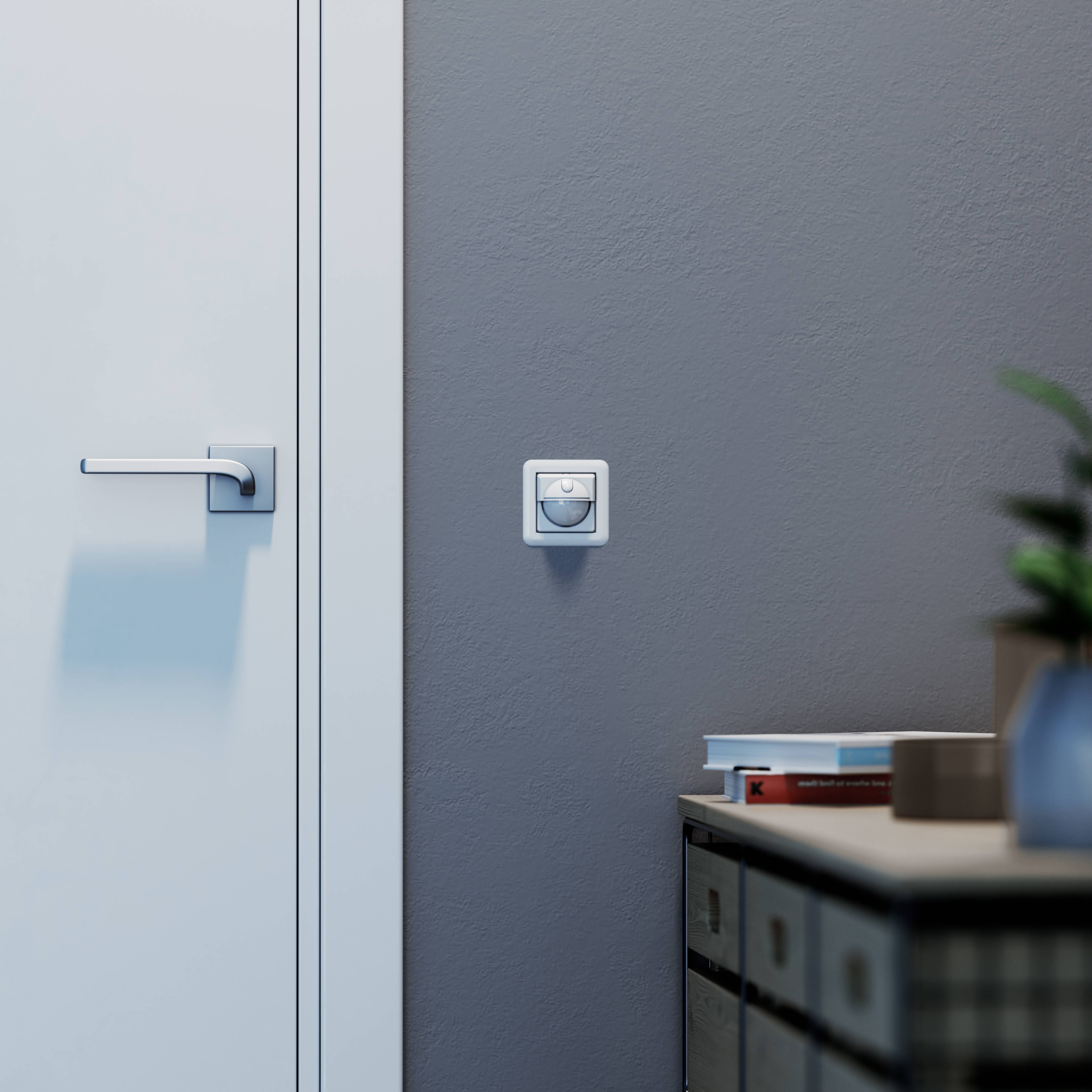

A wall-mounted motion sensor beside a white door and cabinet, suggesting an indoor home hallway or room.

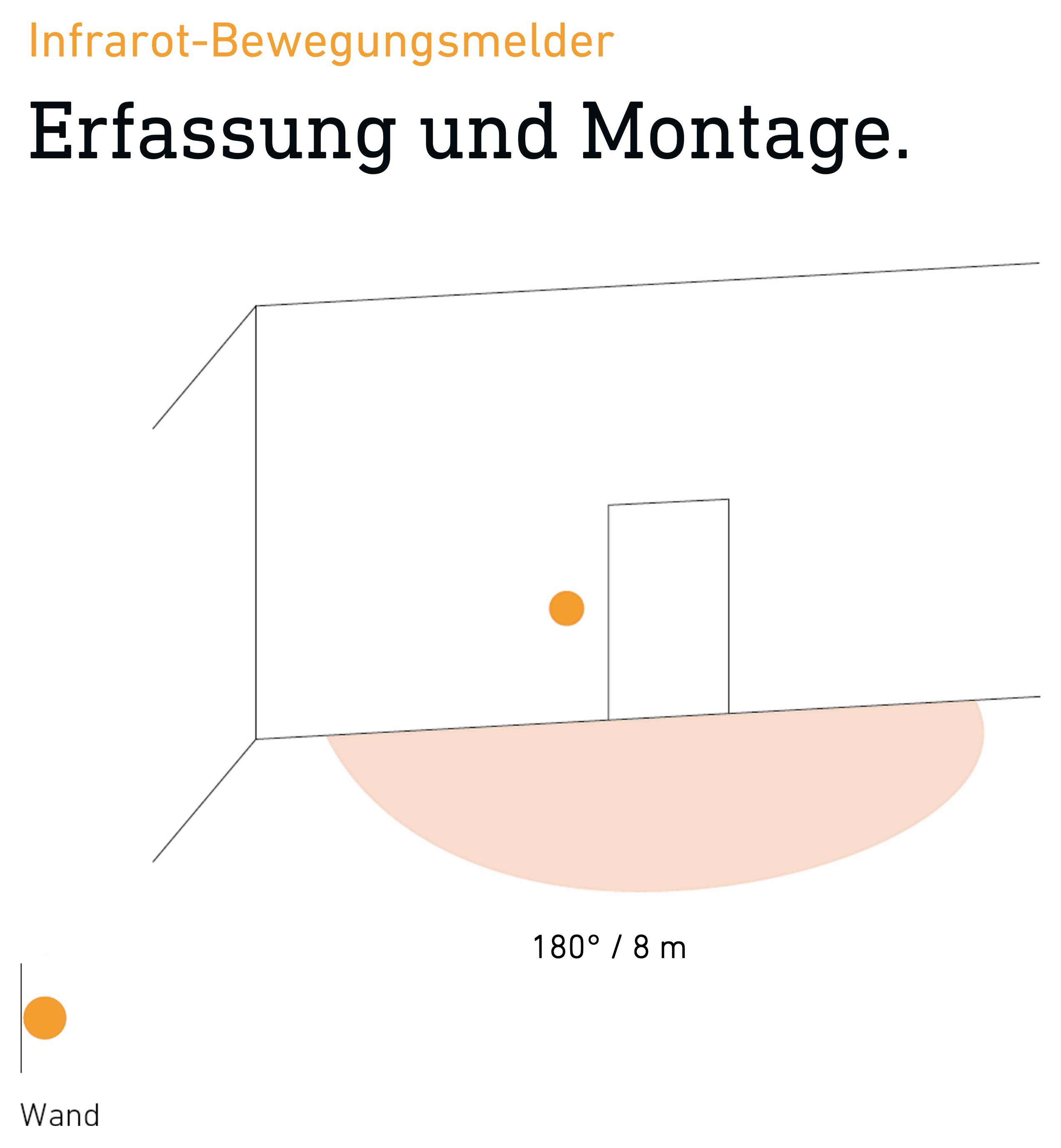

Diagram for installation and mounting of an infrared motion sensor on the wall with 180° detection range and 8 m range.

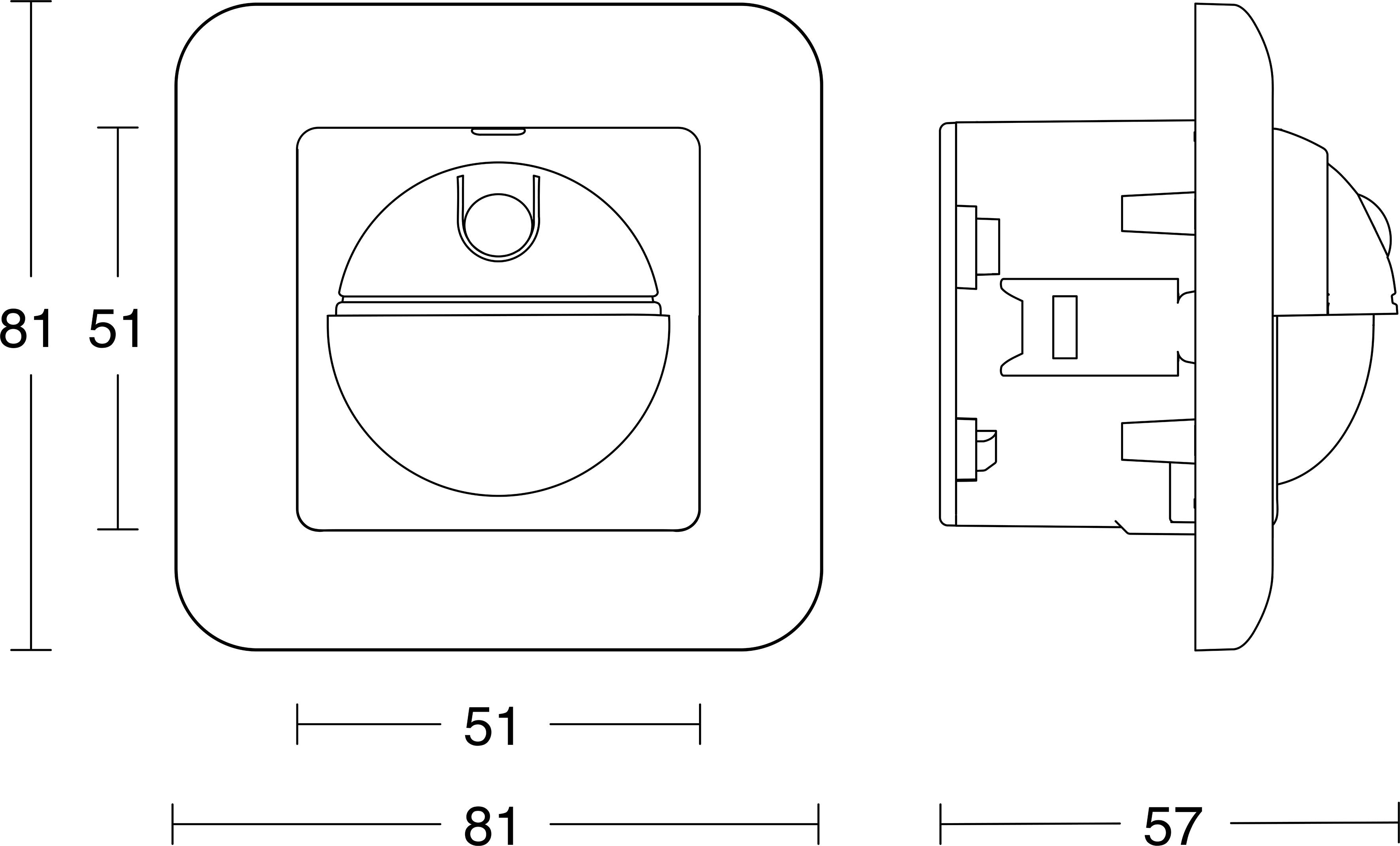

Technical line drawing of a square recessed fixture with a circular center, shown front and side views with dimensions 81, 51, and 57.

Infographic on STEINEL Quality: Tested Quality, 3 Years Manufacturer's Warranty, Developed in Germany, Personal Customer Service.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 73.99 / piece)

€ 73.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Alternative article by SYGONIX

Sygonix SY-6118230 Wall-mounted, Surface-mount PIR motion detector 180 ° Relay White IP44

Fast track dispatch on Wed 4 Nov

€ 8.49

incl. VAT plus

Highlights & Details

Steinel sensor switch IR 180 UP easy with 180° motion detector

For 2-wire and 3-wire installation
Also can be used as a conventional on/off switch
TEACH-mode for storing the current twilight value

Technical specifications

Depth: 55 mm
3-Wire connection: parallel connection possible
Sensor type: passive infrared
Sneak/field monitoring: Yes
Continuous light: switchable, 4h
Continuous-OFF: switchable
Protection class: 2
Includes Cover

Product type: PIR motion detector

Detection angle: 180°

: 8 m

Used at: Indoors

Mounting type: Flush mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 200 W

Voltage (max.): 240 V

Switching capacity (light bulbs): 200 W

Switching capacity (LED): 150 W W

Switching capacity (light tubes): 500 VA

Twilight settings: 2 - 2000 lx

Time settings: 5 sec. to 30 min

Factory colour: White

Similar RAL: 9010

: IP20

Length: 150 cm

Width: 80 mm

Height: 80 mm

Dim: (L x W x H) 150 cm x 80 mm x 80 mm

Weight: 0.124 kg

Voltage (min.): 220 V

: Surface mounted (plaster)

: White

: 81

: Movement sensor

: TRUE

: 57 mm

: 57 mm

: Other

: Other

: AC

: 50-60 MHz

: Thermoplastic

: Plastic

: 9010

: IP20

: FALSE

: 66

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1762487 Steinel 055790 Flush mount PIR motion detector 180 ° Relay White IP20

User & Safety Instructions

User & Safety Instructions 1762487 Steinel 055790 Flush mount PIR motion detector 180 ° Relay White IP20

Warranty Terms

Warranty Terms 1762487 Steinel 055790 Flush mount PIR motion detector 180 ° Relay White IP20

Description

Nice, if things without much effort simply work. The way the
IR 180 UP, easy, with which light in the hallway, stairwell or toilet in no time at all automate
. Simply for the existing flush-mounted switch. Works
Always - regardless whether it is 2- or 3-wire installations. Switches all
Light bulb. The built-in infrared sensor convinces with a range of up to 180°
To 8 m. And thanks to the integrated button is also manual switching is possible at any time.

This text is machine translated.

Features

Manual switching is possible; 2-wire and 3-wire installation; LED; TEACH-Function

Scope of delivery

Sensor module
Frames
Load module
User manual

Hints

Infrared motion detectors respond best in a tangential direction (parallel) to the sensor. It is radial on the sensor to, the infrared rays very late cut and will reduce the range.
