Name: Steinel 602710 Surface-mount, Wall PIR motion detector 240 ° Relay Black IP54
Brand: Steinel
SKU: 1513609
Availability: InStock

Black Steinel wall-mounted motion sensor with a dome-shaped white detector lens underneath.<br>

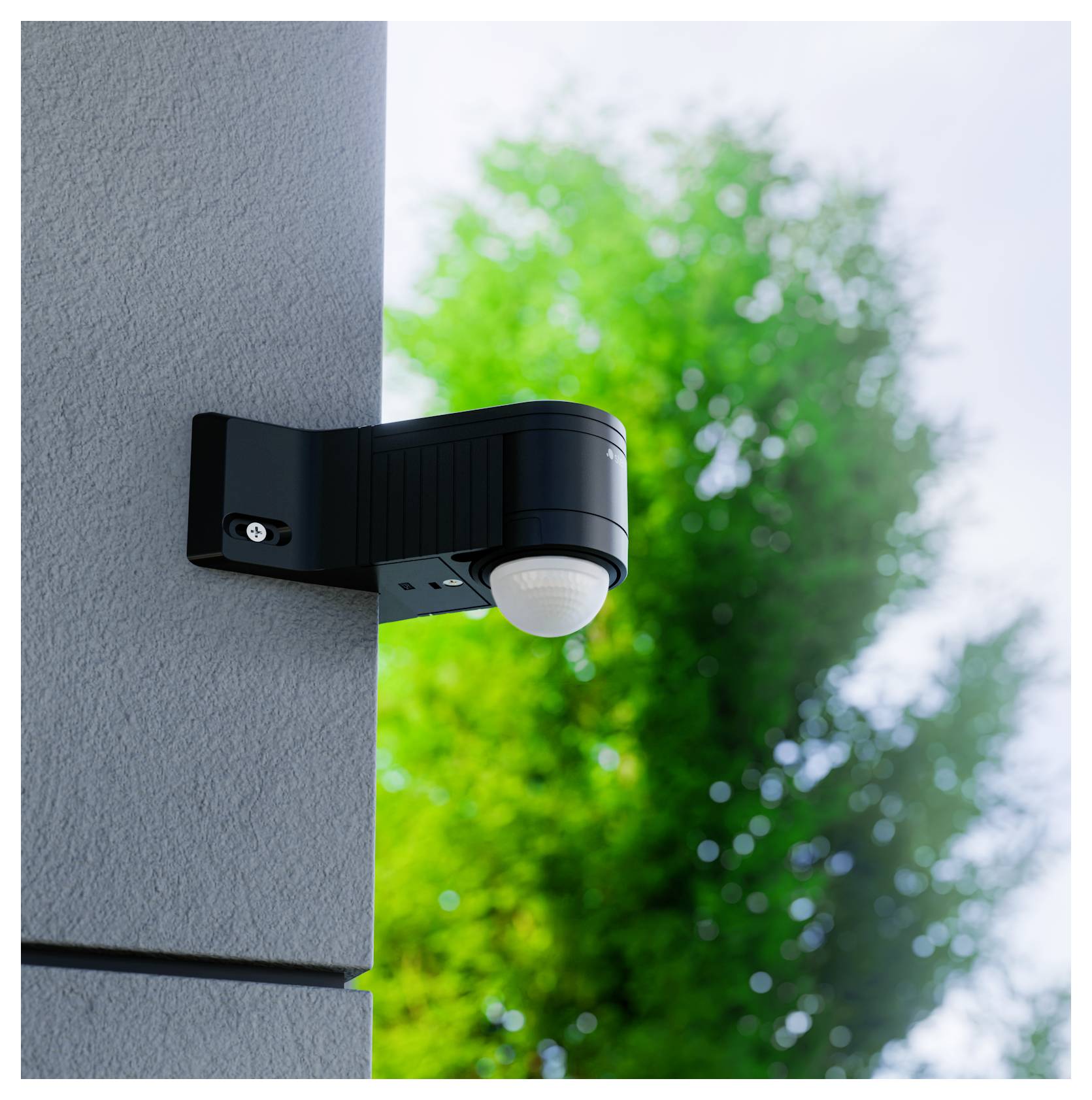

Black outdoor motion-sensor security light mounted on a gray exterior wall, with blurred green trees in the background.

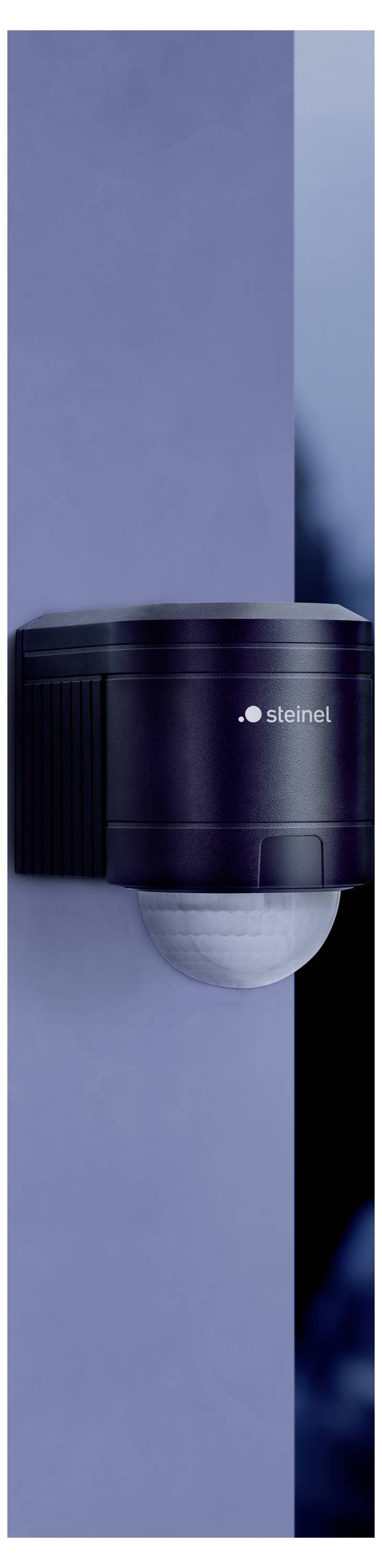

Close-up of a black Steinel wall-mounted sensor light on a blue wall, with a rounded white motion sensor underneath.<br>

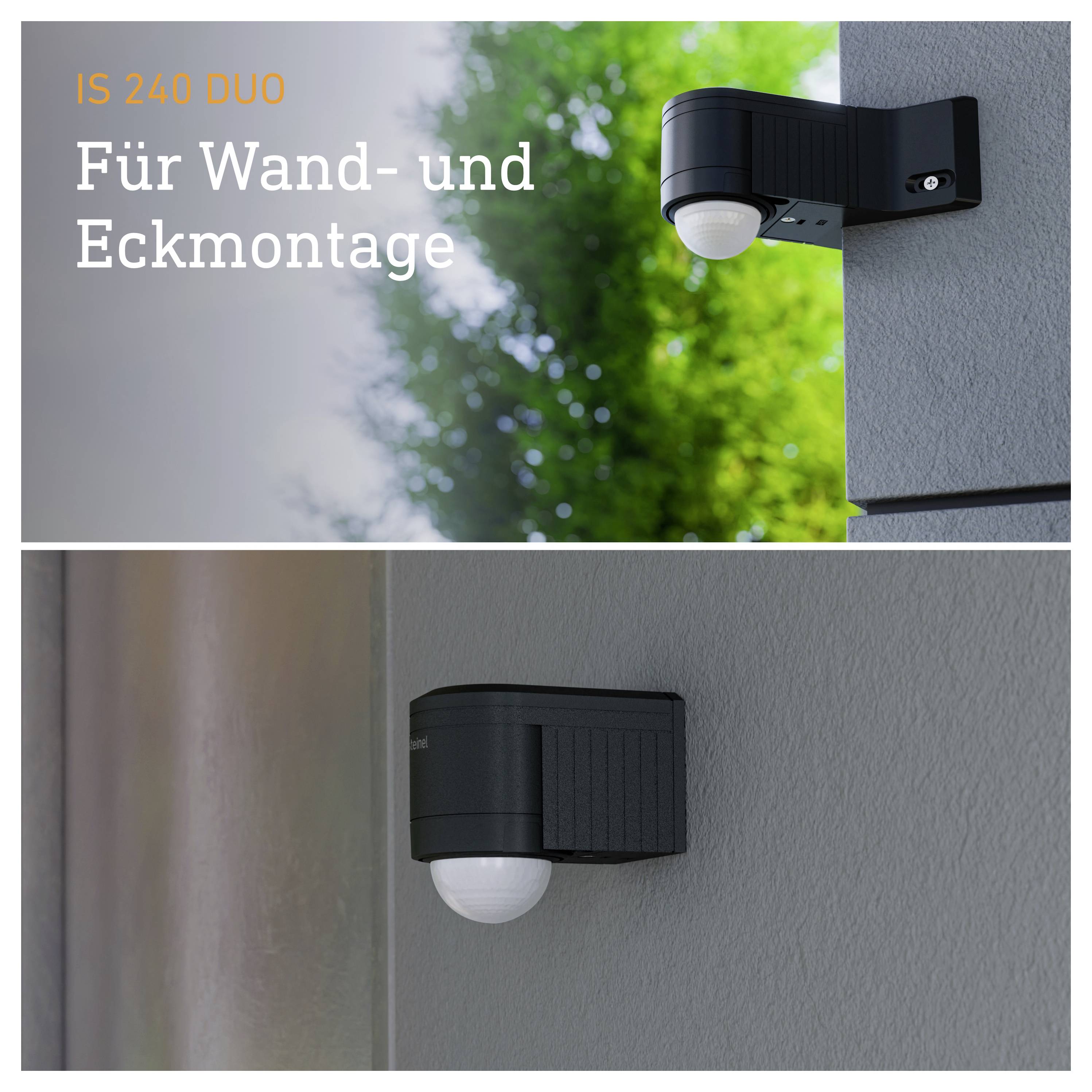

Motion Detector IS 240 Duo for Wall and Corner Mounting, shown on a house wall in two mounting views.

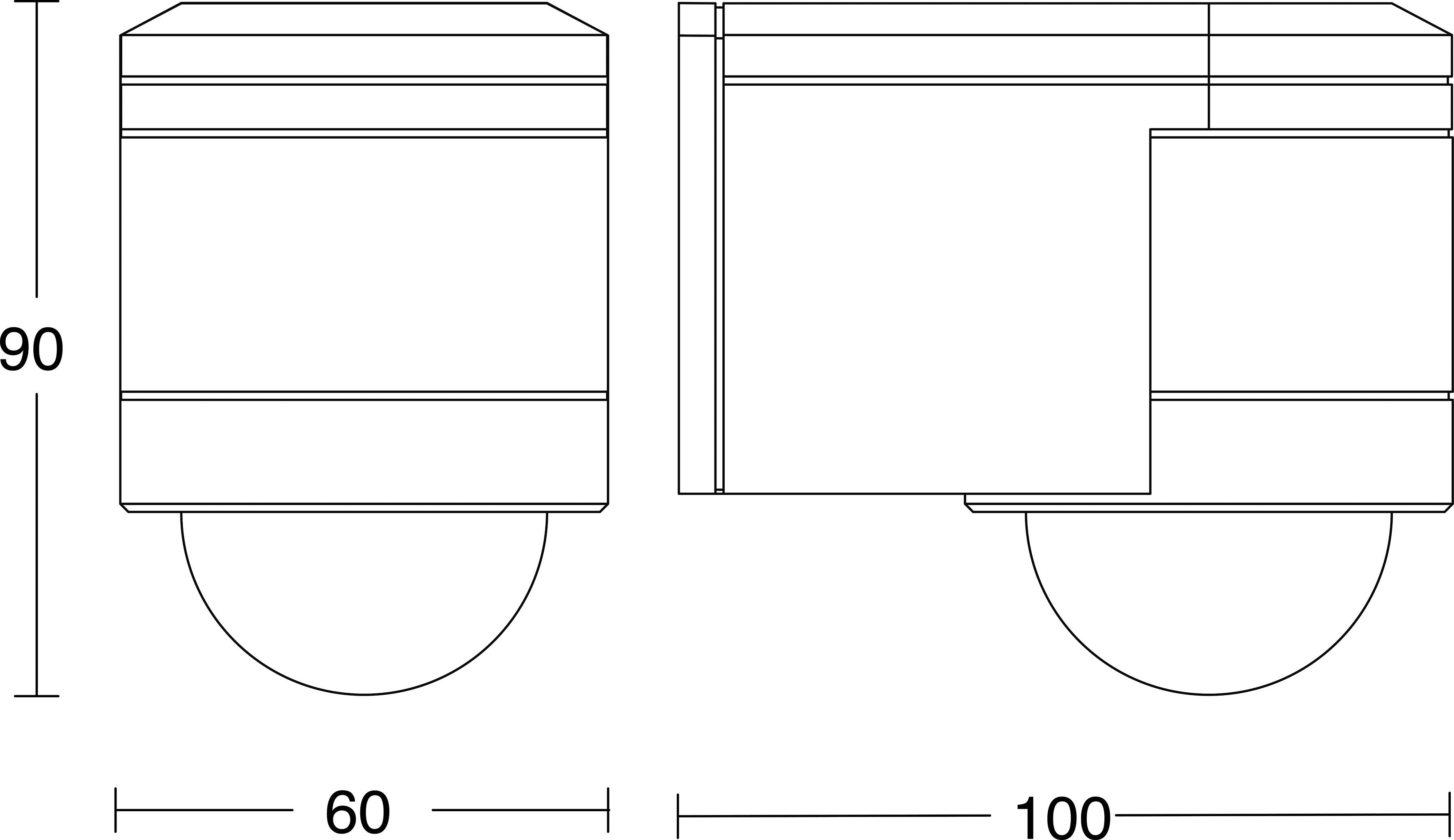

Technical drawing of a cylindrical component shown front and side views with dimensions 90, 60, and 100.

Four tiles on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Infrared wall sensor is 240 Duo Black

Mounting in corners possible
segment-by-segment detection suppression possible
for outside and inside
adjustable time and twilight threshold

Technical specifications

Swivel range 80°
Sensor type: passive infrared
Segment-detection fade-out possible: Yes
Protection class: 2
Including corner wall bracket

Product type: PIR motion detector

Detection angle: 240°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 230 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): 1000 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 10s - 15 min

Factory colour: Black

: IP54

Operating temperature: -20 - +50 °C

Length: 100 mm

Width: 60 mm

Height: 90 mm

Dim: (L x W x H) 100 x 60 x 90 mm

Weight: 0.159 kg

Voltage (min.): 230 V

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513609 Steinel 602710 Surface-mount, Wall PIR motion detector 240 ° Relay Black IP54

User & Safety Instructions

User & Safety Instructions 1513609 Steinel 602710 Surface-mount, Wall PIR motion detector 240 ° Relay Black IP54

Warranty Terms

Warranty Terms 1513609 Steinel 602710 Surface-mount, Wall PIR motion detector 240 ° Relay Black IP54

Description

The infrared wall sensor is 240 DUO is the ideal solution for monitoring large house fronts and outside corners. Because the IS 240 DUO is equipped with two, in a special angle to each other, highly sensitive infrared detectors and thus able surfaces up to 230 m² adjacently to monitor. The sensor is mounted at outside corners, he can use its large detection angle a particularly large cover range, whereby the investment in a second sensor can be saved. The detection range can be limited with the enclosed cover plates as per the requirement. The individual setting of time and twilight threshold is via an easily accessible rotary dial. Thanks to the generous, clear connection area, the infrared motion detector is 240-DUO quickly and easily mounted on the wall or the corner - the right corner wall bracket for this is included. The cable can be flush or surface.

This text is machine translated.
