Name: Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
Brand: Steinel
SKU: 1513611
Availability: InStock

White Steinel motion sensor wall light with a domed infrared detector below the lamp housing.<br>

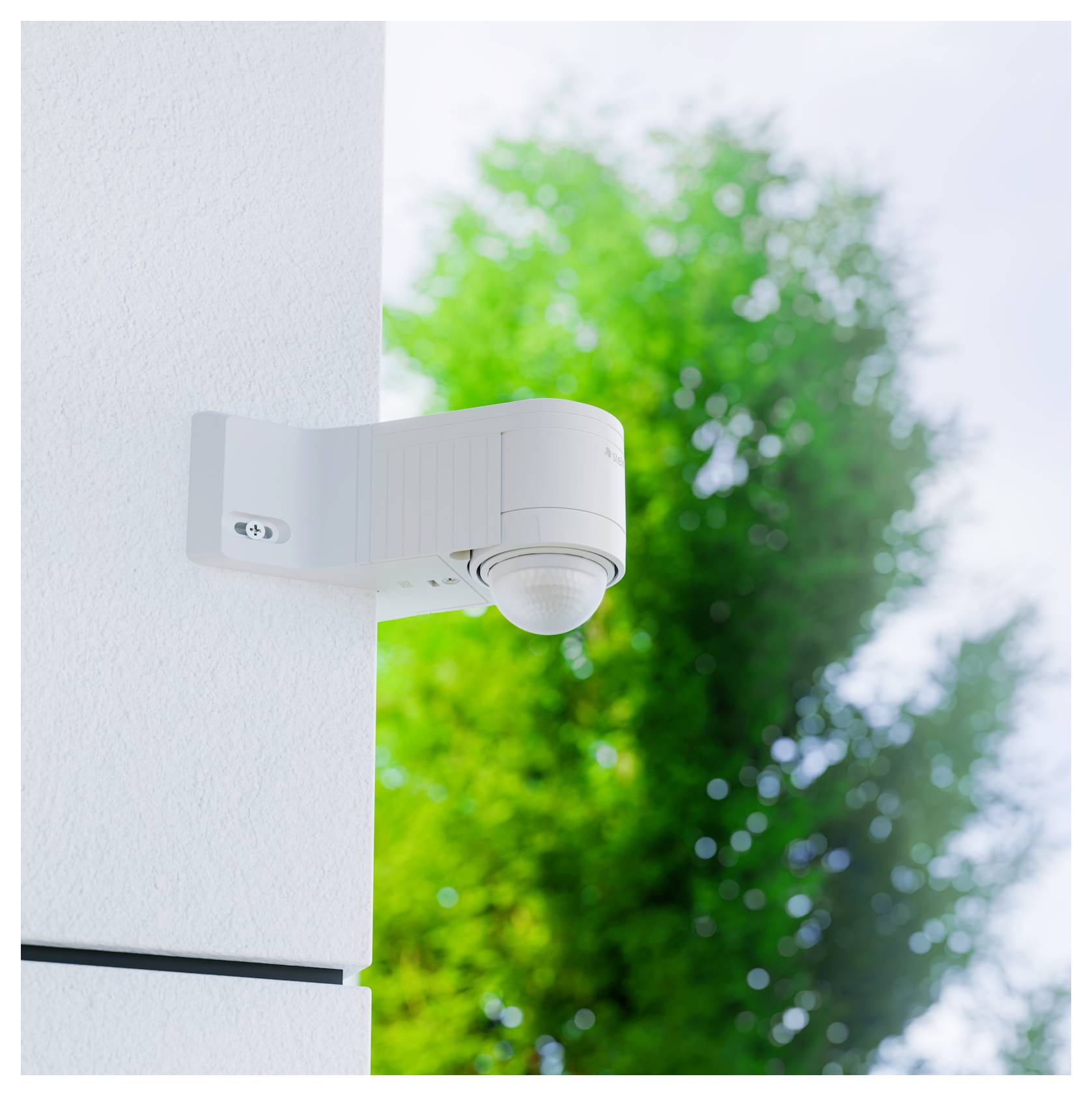

White motion sensor mounted on an exterior wall, angled toward a green outdoor area.

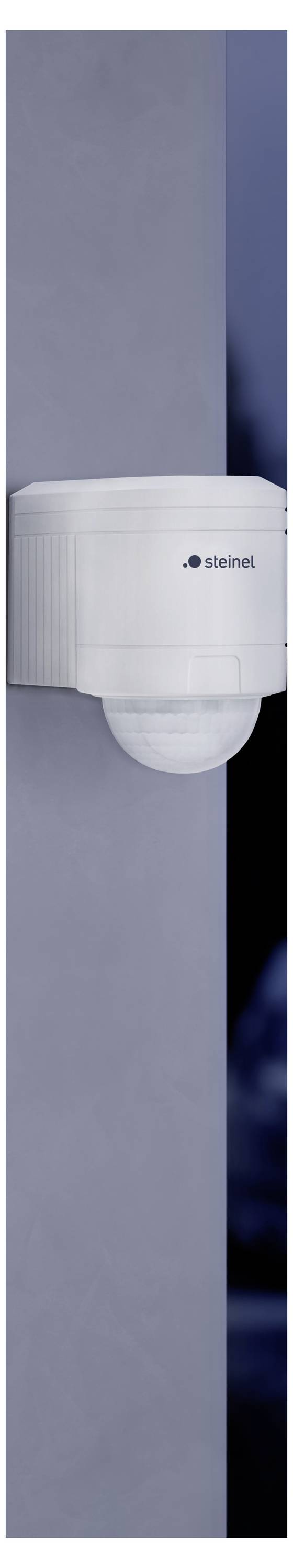

White Steinel motion sensor mounted on a gray wall, with a domed lens at the bottom.

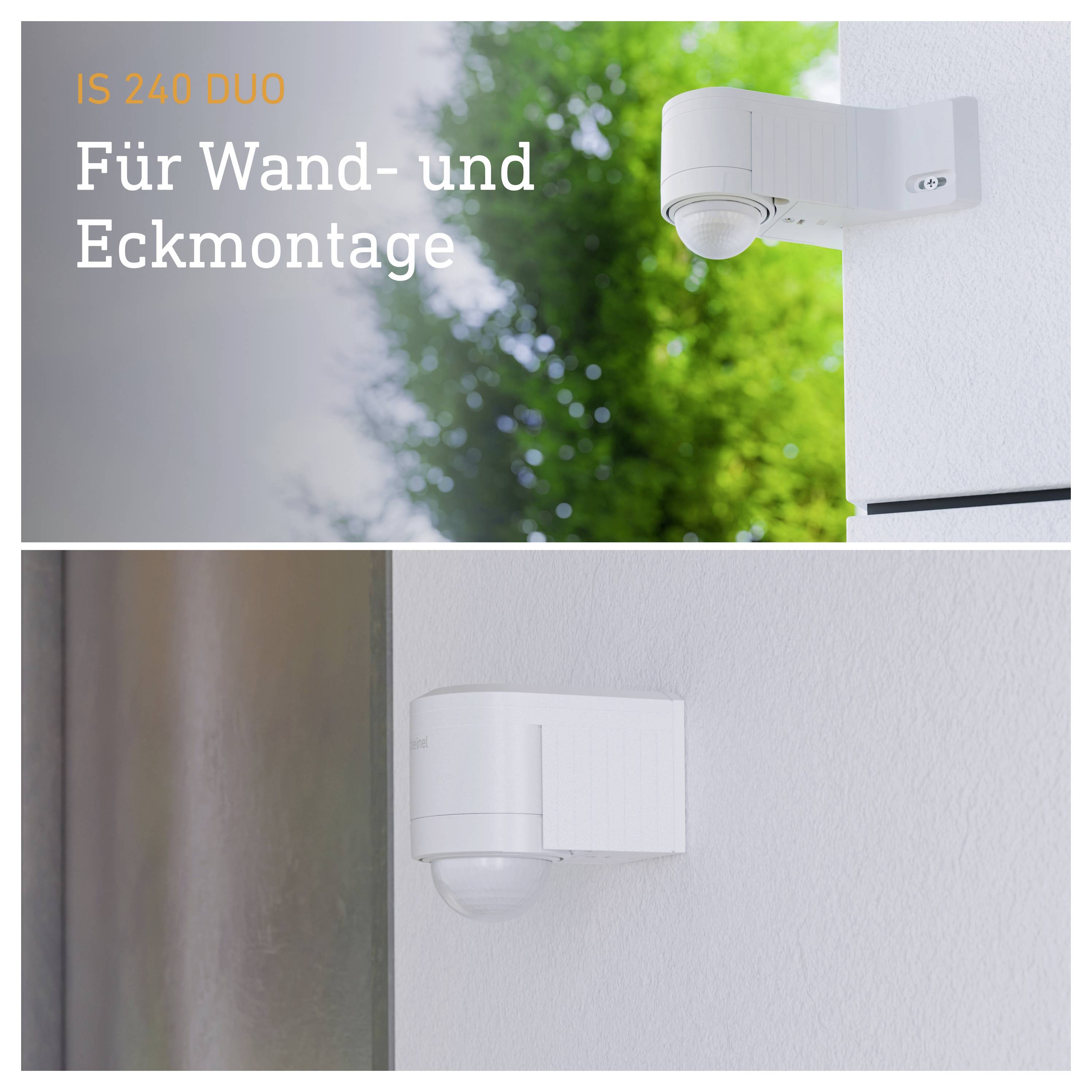

Advertisement for the motion detector 'IS 240 DUO' for wall and corner mounting, shown on a house wall in indoor and outdoor areas.

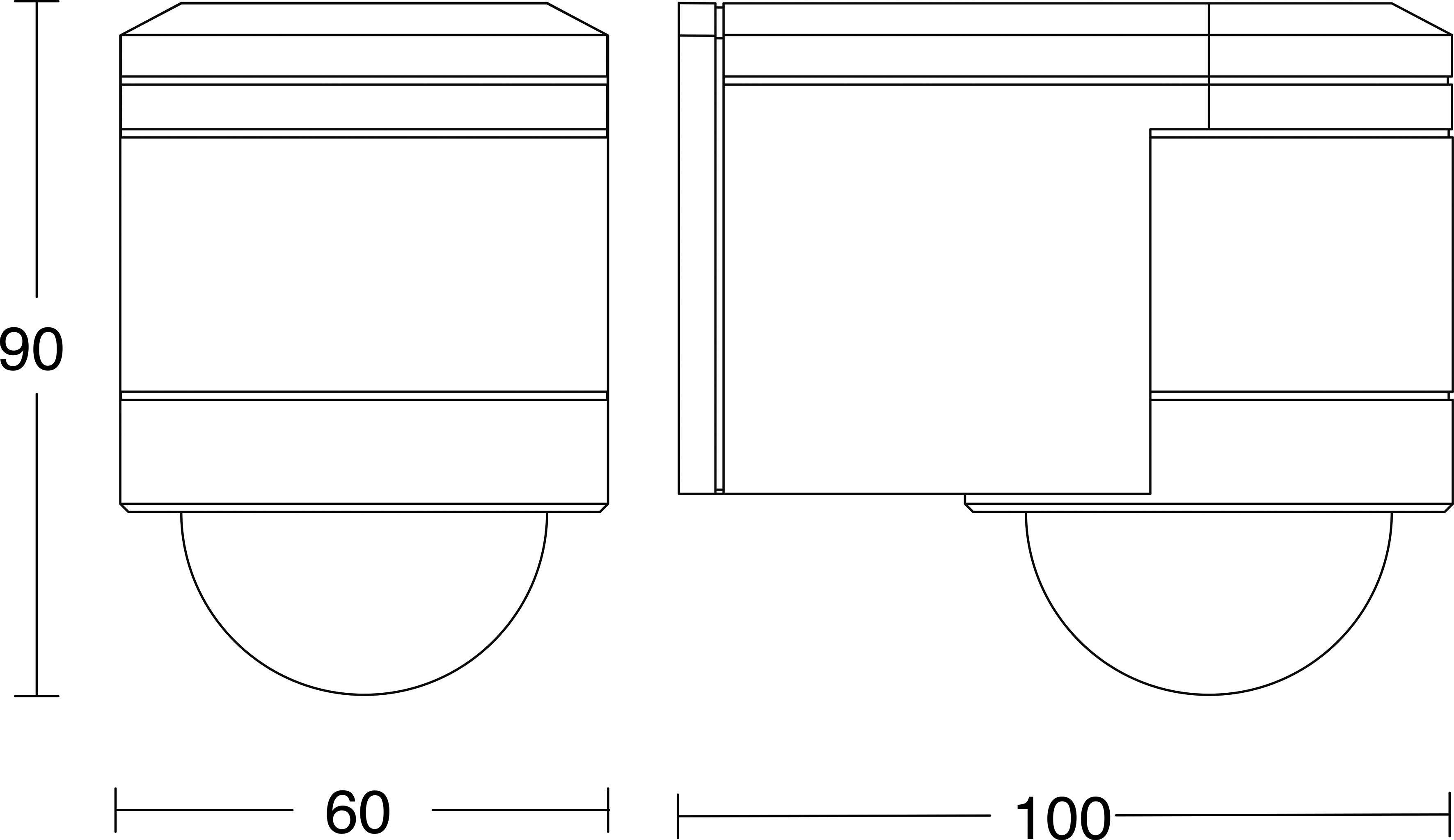

Technical drawing of a cylindrical device shown front and side views, with dimensions labeled 60 and 100 and height 90.

Four-field infographic on STEINEL Quality: Tested Quality, 3 Years Manufacturer's Warranty, Developed in Germany and Personal Customer Service.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Infrared wall sensor is 240 DUO white

Mounting in corners possible
Segment-detection fade-out possible
This text is machine translated.

Technical specifications

Swivel range 80°
Sensor type: passive infrared
Segment-detection fade-out possible: Yes
Protection class: 2
Including corner wall bracket

Product type: PIR motion detector

Detection angle: 240°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount
Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 230 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): 1000 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 10s - 15 min

Factory colour: White

: IP54

Operating temperature: -20 - +50 °C

Length: 100 mm

Width: 60 mm

Height: 90 mm

Dim: (L x W x H) 100 x 60 x 90 mm

Weight: 360.00

Voltage (min.): 230 V

: Surface mounted (plaster)

: White

: 60

: Movement sensor

: TRUE

: 100 mm

: 100 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 200 A

: Plastic

: 9010

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54

User & Safety Instructions

User & Safety Instructions 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54

Warranty Terms

Warranty Terms 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54

Description

The infrared wall sensor is 240 DUO is the ideal solution for monitoring large house fronts and outside corners. Because the IS 240 DUO is equipped with two, in a special angle to each other, highly sensitive infrared detectors and thus in a position to monitor areas up to 230 m2 without any gaps. The sensor is mounted at outside corners, he can use its large detection angle a particularly large cover range, whereby the investment in a second sensor can be saved. The detection range can be limited with the enclosed cover plates as per the requirement. The individual setting of time and twilight threshold is via an easily accessible rotary dial. Thanks to the generous, clear connection area, the infrared motion detector is 240-DUO quickly and easily mounted on the wall or the corner - the right corner wall bracket for this is included. The cable can be flush or surface.
