Name: Steinel 603113 Wall PIR motion detector 180 ° Relay Black IP54
Brand: Steinel
SKU: 611400
Availability: InStock

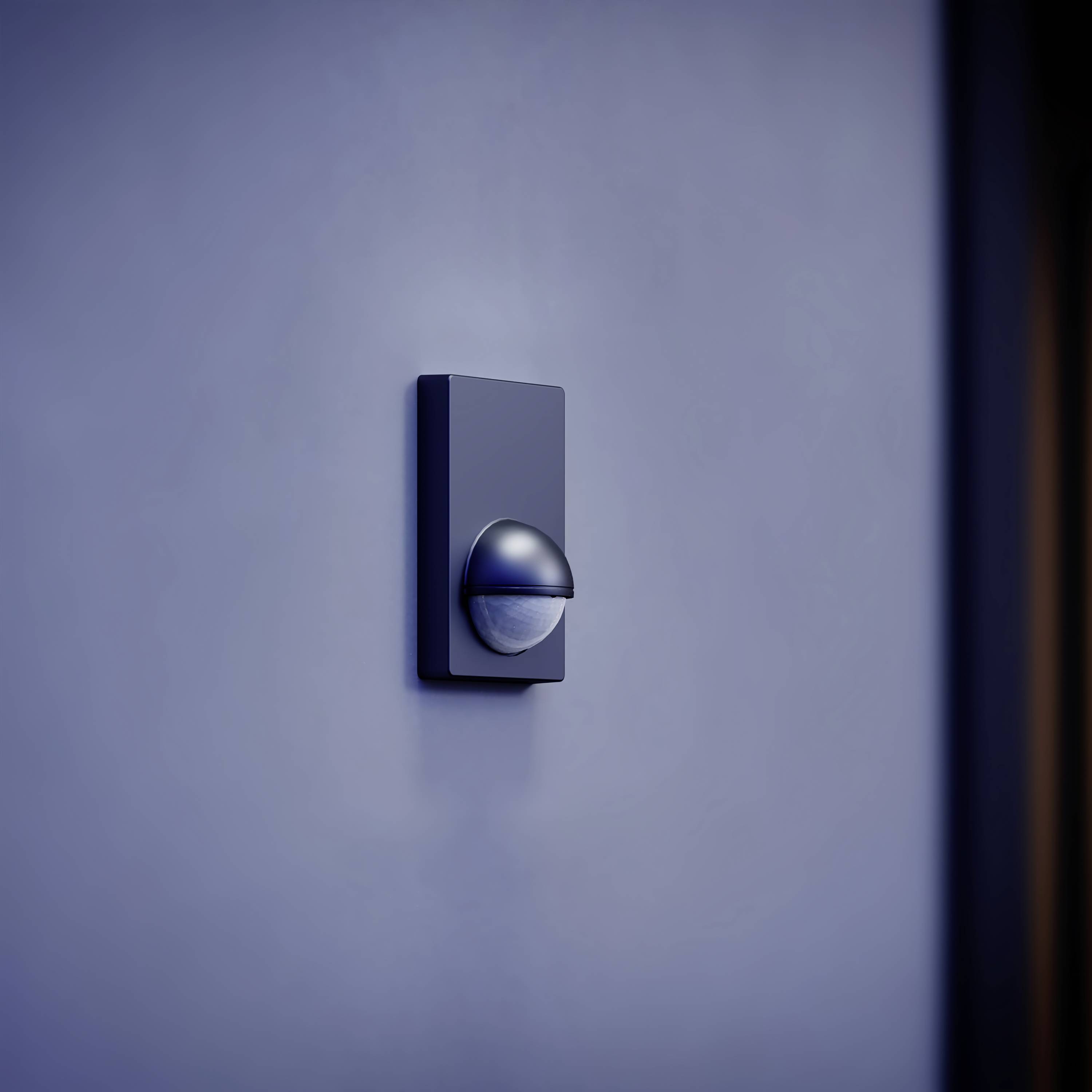

Wall-mounted Steinel motion sensor light with dark rectangular faceplate and white dome sensor at center.<br>

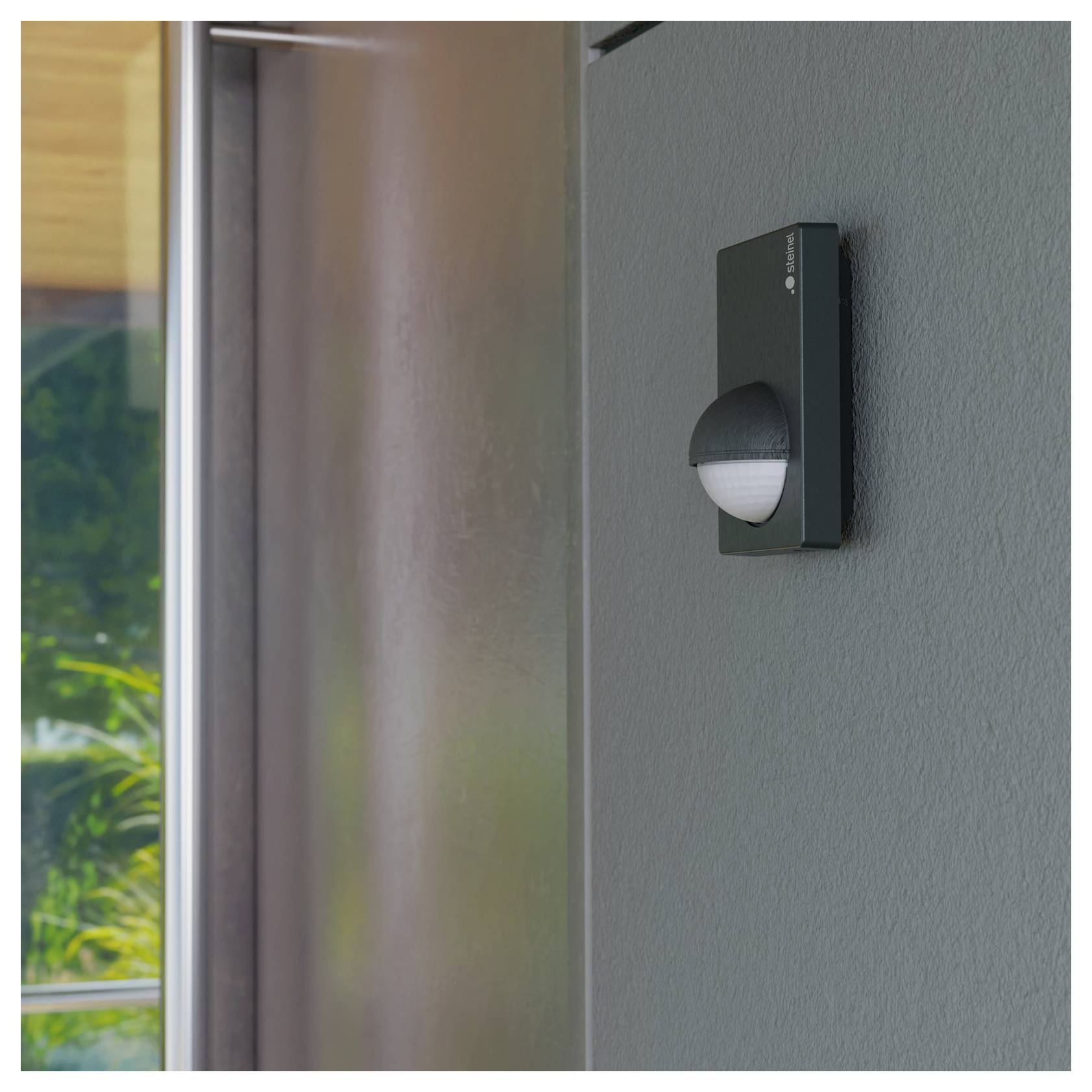

Outdoor wall light with a frosted dome sensor mounted on a gray exterior wall beside a window or glass door<br>

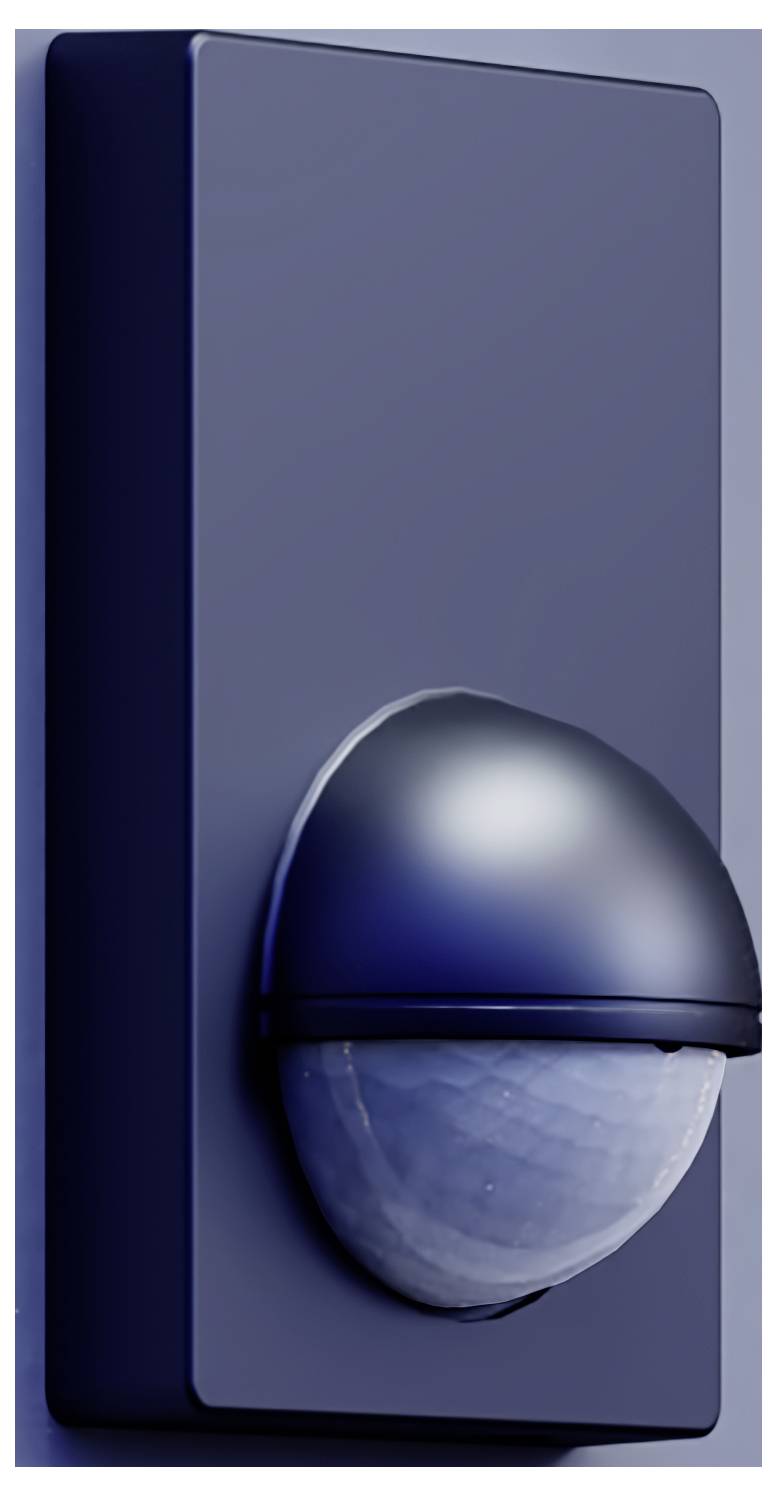

Blue wall-mounted motion sensor with a rounded dome protruding from a rectangular plate, likely a security or lighting detector.

Advertising image with grey exterior light on the wall; Text: 'Our versatile installation expert' and 'For interior and exterior corners as well as wall mounting.'

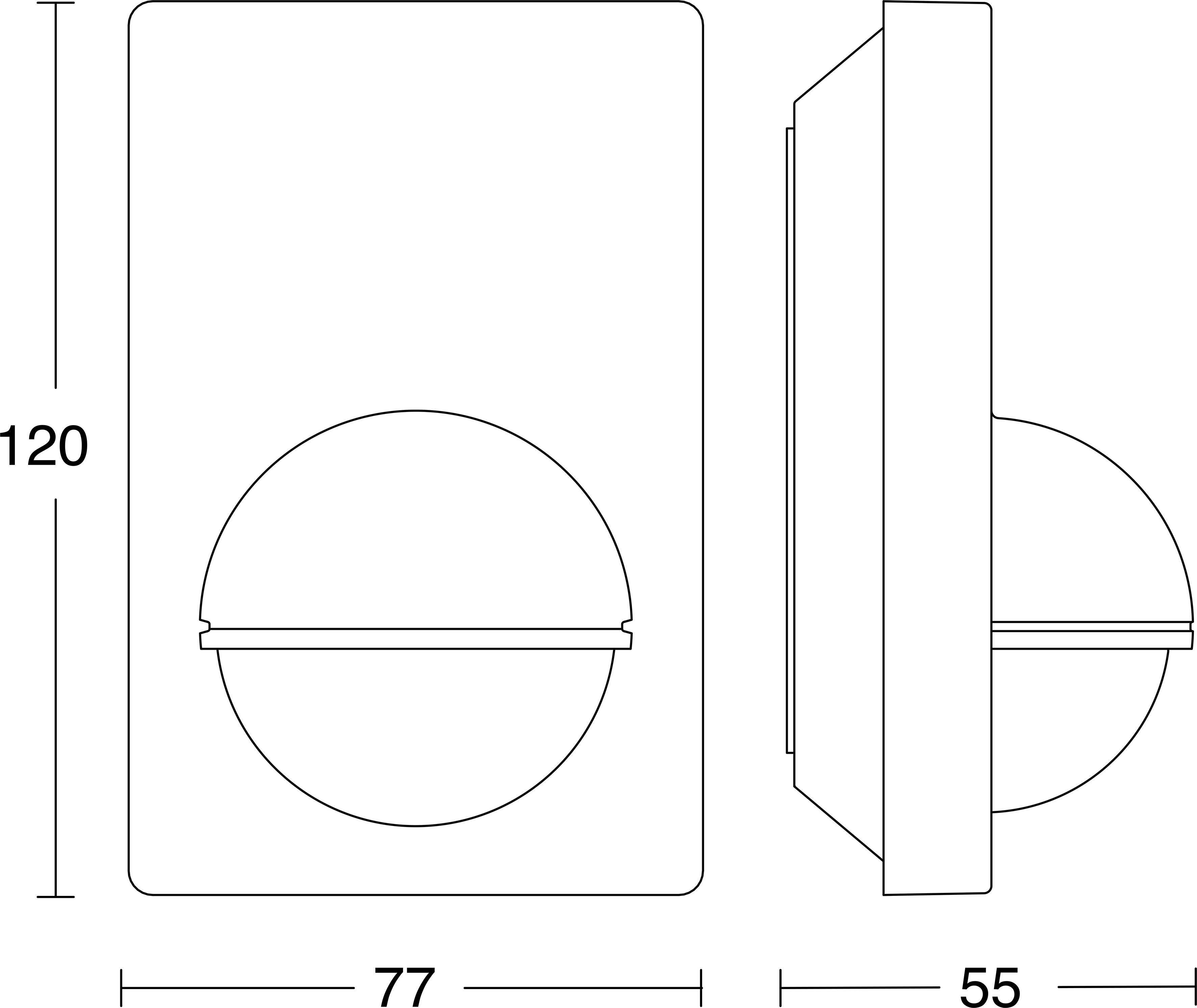

Technical drawing of a wall-mounted rectangular fixture with a centered round protrusion, shown front and side views with dimensions 120, 77, and 55.

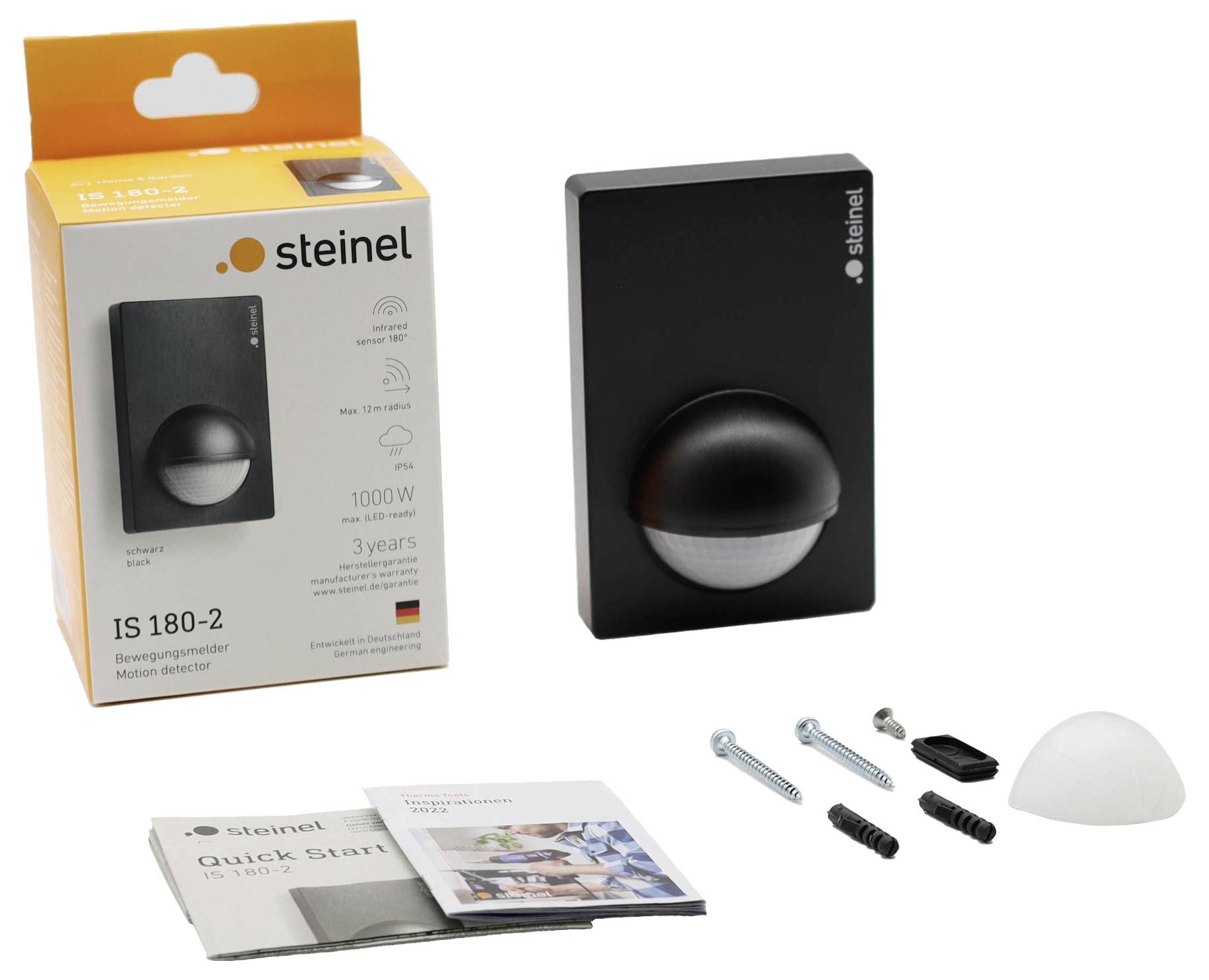

Steinel motion detector 'IS 180-2' with packaging, user manual and mounting material; black sensor device with accessories.

Four tiles on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

66 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

180° outdoor motion detector, Inox

Capturing angle 180 °
Range 5 - 12 m
Switches up to 1000 W

Technical specifications

Power: Max. 1000 Watt (resistive load, e.g. light bulb);Depth: 56 mmSensor type: Passive infraredSegment-by-segment detection suppression possible: YesProtection class: 2

Product type: PIR motion detector

Detection angle: 180°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 230 V

Switching capacity (energy saving bulbs): 600 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): -

Switching capacity (LED): 350 W W

Switching capacity (light tubes): 500 W

Standby current consumption: 1 W

Twilight settings: 2 - 2000 lx

Time settings: 10 s - 15 h min

Factory colour: Black

: IP54

Operating temperature: -20 to +50 °C

Type: Wall-mounted

Length: 150 cm

Width: 76 mm

Height: 120 mm

Dim: (L x W x H) 150 cm x 76 mm x 120 mm

Weight: 0.26 kg

Voltage (min.): 230 V

Detection angle: 180°

Switch contact: Relays

Operating voltage: 230 V/50 Hz

: Surface mounted (plaster)

: Black

: 76

: Movement sensor

: TRUE

: 56 mm

: 56 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 110 A

: Plastic

: 9005

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 611400 Steinel 603113 Wall PIR motion detector 180 ° Relay Black IP54

User & Safety Instructions

User & Safety Instructions 611400 Steinel 603113 Wall PIR motion detector 180 ° Relay Black IP54

Warranty Terms

Warranty Terms 611400 Steinel 603113 Wall PIR motion detector 180 ° Relay Black IP54

Description

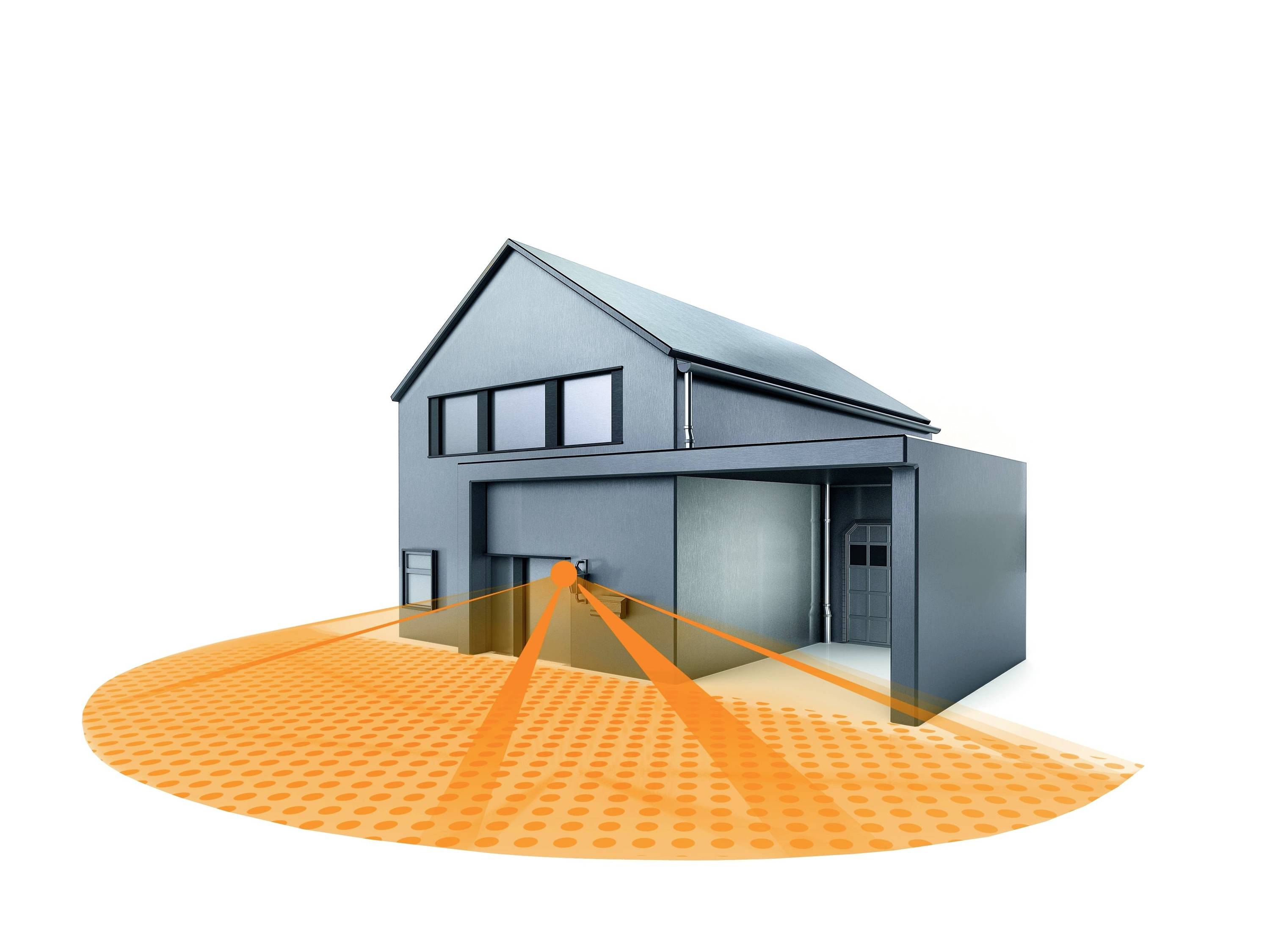

Slim, elegantly-designed infrared wall sensor, perfect for monitoring large house fronts and indoor areas such as corridors and basements. The motion detector combines modern, clear design with the latest sensor technology. Two highly sensitive infrared detectors, arranged next to each other at a special angle, make it possible to monitor areas of up to 200 m² with seamless reliability. Setting options: Range can be set by rotating the multi-lens to max. 12 m or min. 5 m · Capturing range can be restricted with the accompanying cover plate · Simple setting of luminous period and twilight threshold via rotary dial.
