Name: Steinel 603212 Wall PIR motion detector 180 ° Relay White IP54
Brand: Steinel
SKU: 611401
Availability: InStock

White Steinel wall-mounted motion sensor with dome-shaped infrared lens on a rectangular plate.<br>

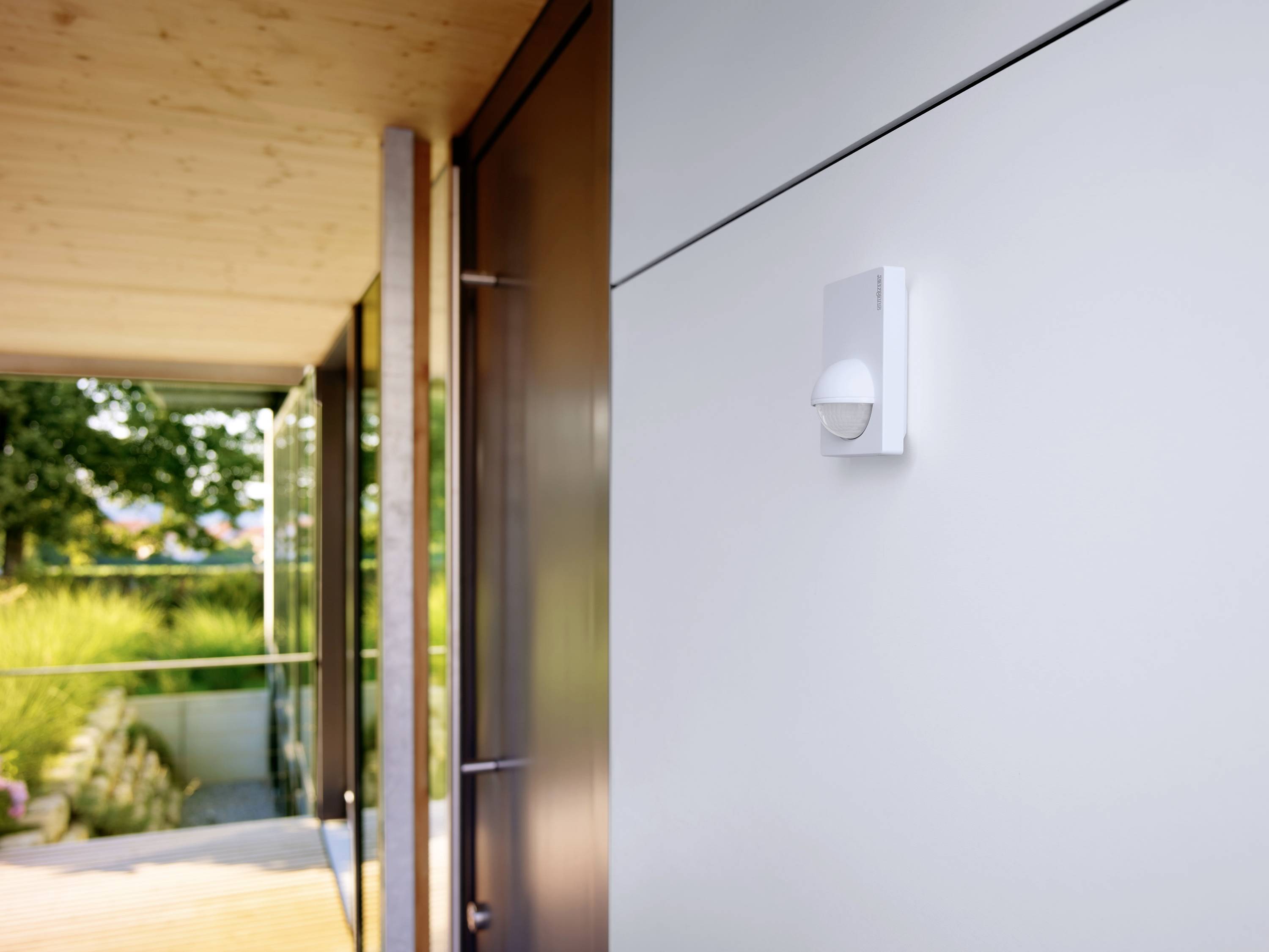

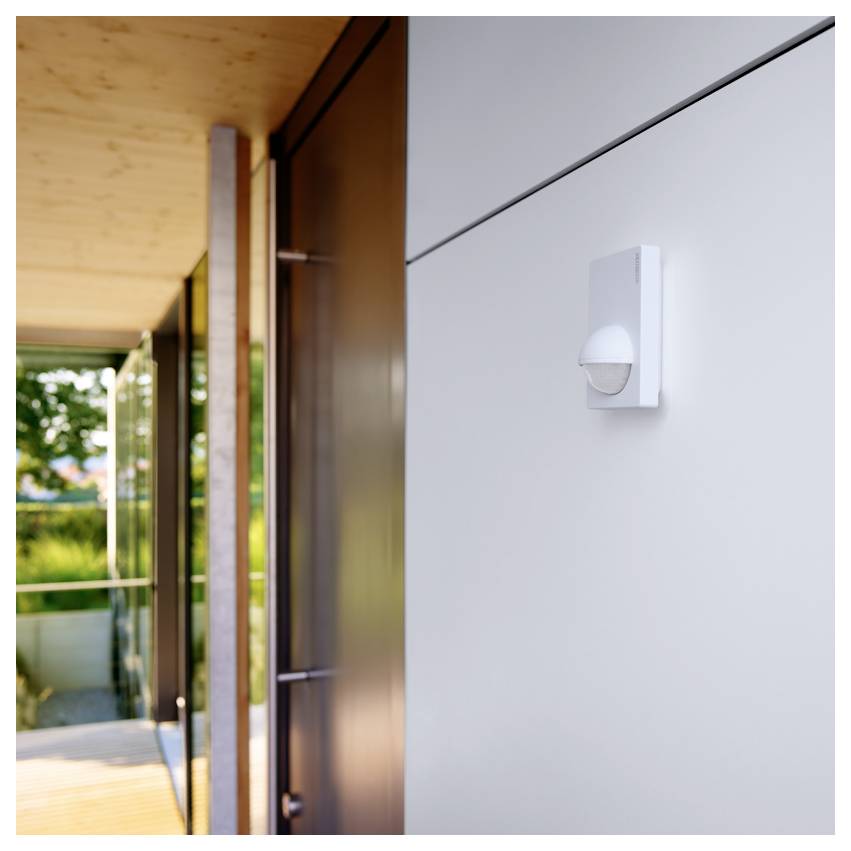

Modern exterior wall with a white motion sensor light beside a doorway and glass entry, suggesting outdoor security lighting.<br>

Advertising graphic of a white motion detector for interior and exterior walls; Text: 'Our installation multi-talented device' and 'For interior and exterior corners as well as wall mounting.'

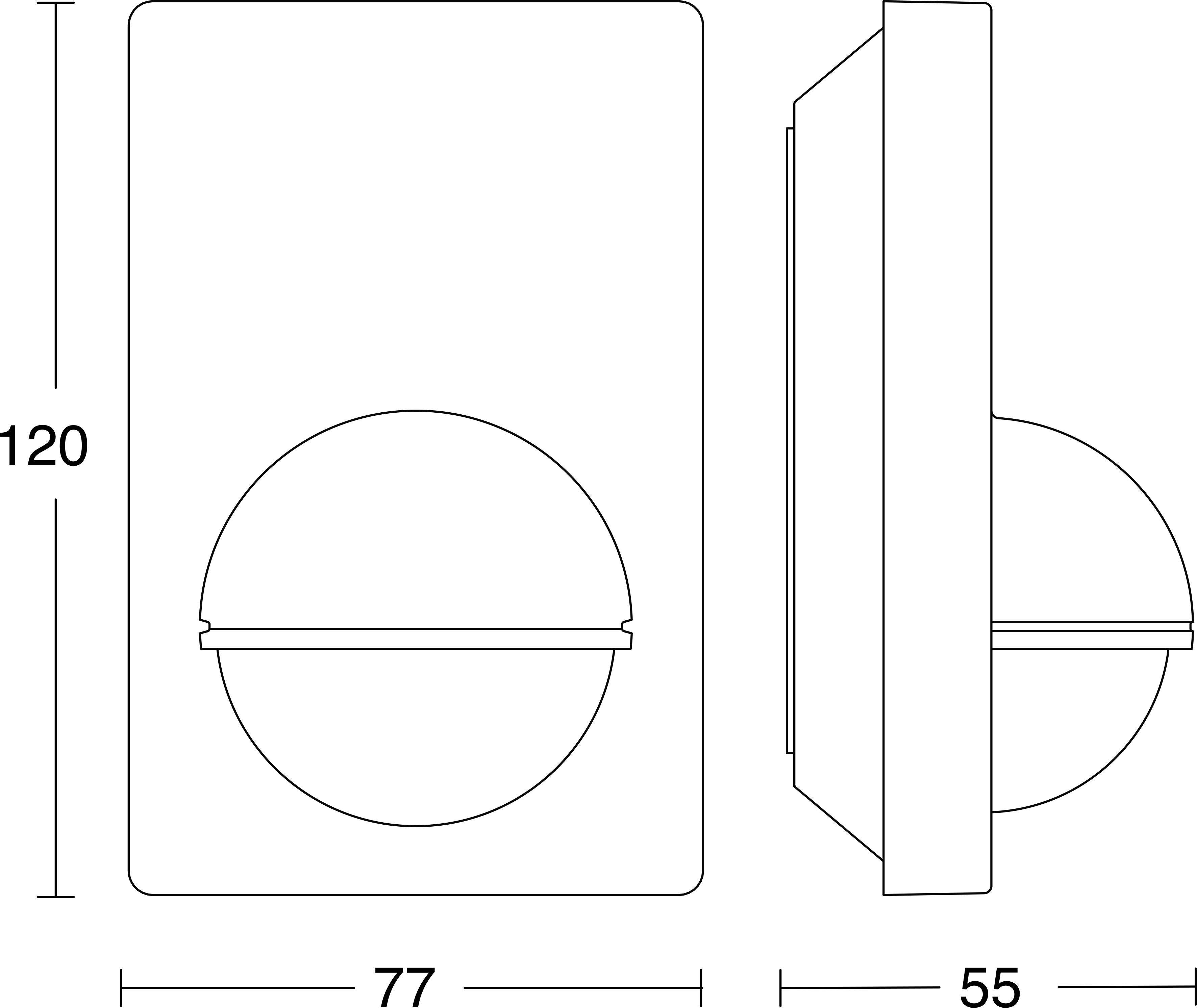

Dimensioned technical drawing of a rectangular wall plate with a centered round protruding knob, shown front and side views, labeled 120, 77, and 55.

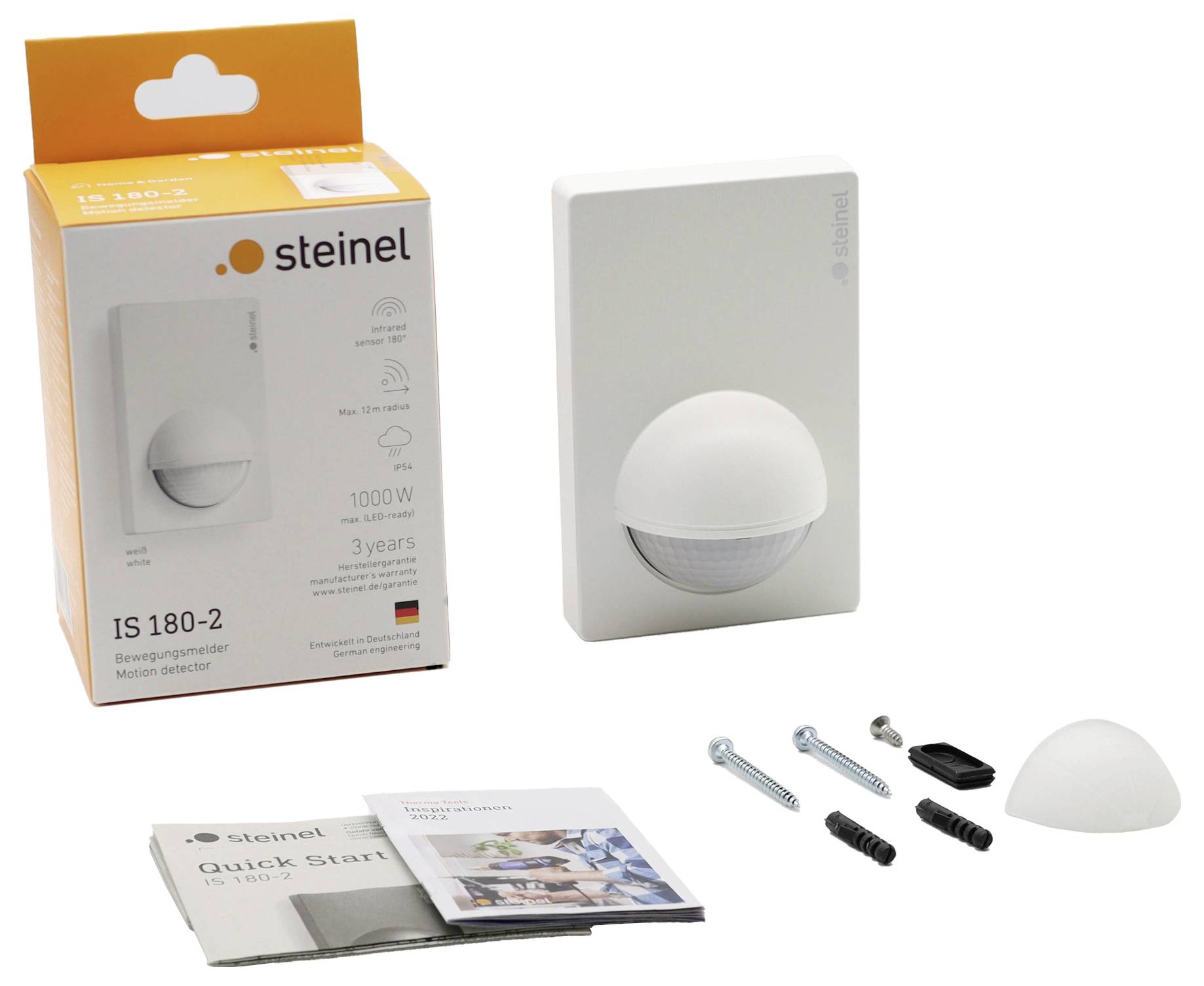

Steinel IS 180-2 motion sensor wall switch shown with its packaging, instructions, and mounting screws on a white background.

Quality from STEINEL with verified quality, 3 years manufacturer's warranty, developed in Germany and personal customer service.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

57 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

180° outdoor motion detector, Inox

Maximum range 12 m
Switches up to 1000 WIP54

Technical specifications

Depth: 56 mmSensor type: Passive infraredSegment-by-segment detection suppression possible: YesProtection class: 2

Product type: PIR motion detector

Detection angle: 180°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 230 V

Switching capacity (energy saving bulbs): 600 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): -

Switching capacity (LED): 350 W W

Switching capacity (light tubes): 500 W

Standby current consumption: 1 W

Twilight settings: 2 - 2000 lx

Time settings: 15 s to 10 min

Factory colour: White

: IP54

Operating temperature: -20 to +50 °C

Type: Wall-mounted

Length: 150 cm

Width: 76 mm

Height: 120 mm

Dim: (L x W x H) 150 cm x 76 mm x 120 mm

Weight: 310.00

Voltage (min.): 230 V

Detection angle: 180°

Switch contact: Relays

Operating voltage: 230 V/50 Hz

: Surface mounted (plaster)

: White

: 76

: Movement sensor

: TRUE

: 56 mm

: 56 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 110 A

: Plastic

: 9010

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 611401 Steinel 603212 Wall PIR motion detector 180 ° Relay White IP54

User & Safety Instructions

User & Safety Instructions 611401 Steinel 603212 Wall PIR motion detector 180 ° Relay White IP54

Warranty Terms

Warranty Terms 611401 Steinel 603212 Wall PIR motion detector 180 ° Relay White IP54

Description

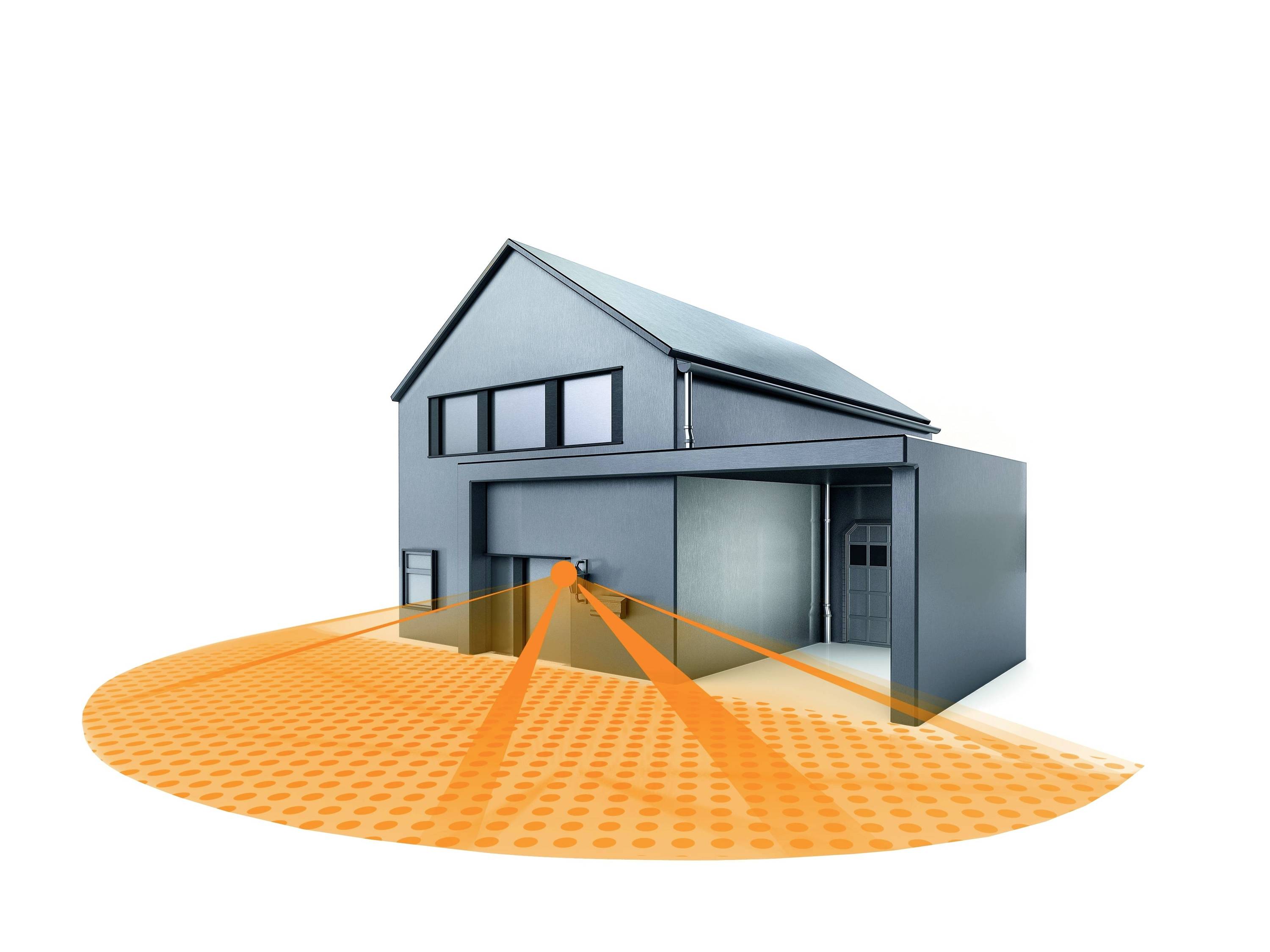

Slim, elegantly-designed infrared wall sensor, perfect for monitoring large house fronts and indoor areas such as corridors and basements. The motion detector combines modern, clear design with the latest sensor technology. Two highly sensitive infrared detectors, arranged next to each other at a special angle, make it possible to monitor areas of up to 200 m² with seamless reliability. Setting options: Range can be set by rotating the multi-lens to max. 12 m or min. 5 m · Capturing range can be restricted with the accompanying cover plate · Simple setting of luminous period and twilight threshold via rotary dial.
