Steinel 603618 Wall PIR motion detector 180 ° Relay Silver IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 5 Piece(s) available
180° outdoor motion detector, Inox
Highlights & Details
- Capturing angle 180 °
- Range 5 - 12 m
- Switches up to 1000 W
Technical specifications
- Recommended installation height 2 mDepth: 56 mmSensor type: Passive infraredSegment-by-segment detection suppression possible: YesProtection class: 2
- Product type
PIR motion detector
- Detection angle
180°
12 m
- Used at
Indoors
Outdoors

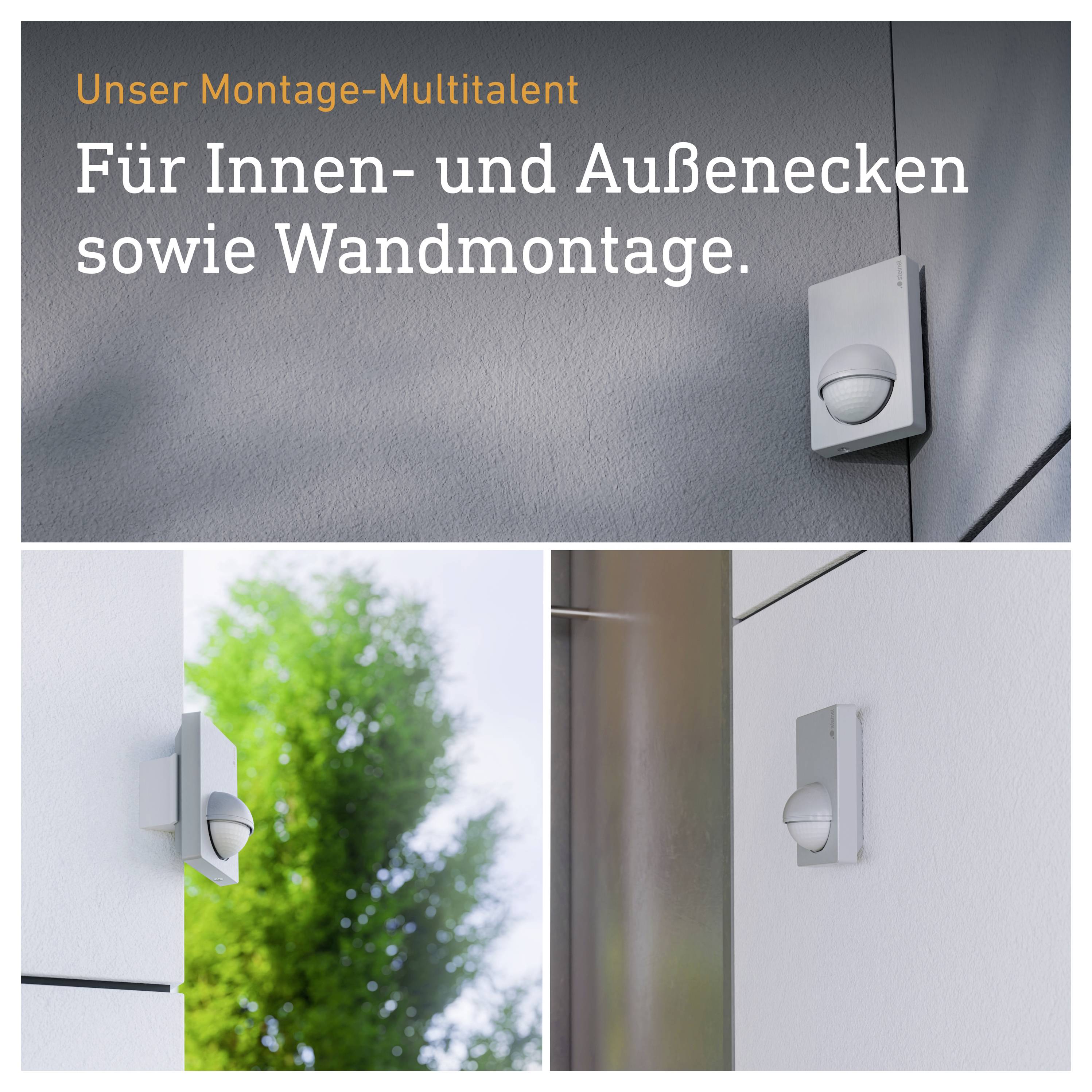

- Mounting type
Wall
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
1000 W
- Voltage (max.)
230 V
- Switching capacity (energy saving bulbs)
600 W
- Switching capacity (light bulbs)
1000 W
- Switching capacity (halogen bulbs)
-
- Switching capacity (LED)
350 W W
- Switching capacity (light tubes)
500 W
- Standby current consumption
1 W
- Twilight settings
2 - 2000 lx
- Time settings
15 s to 10 min
- Factory colour
Silver
IP54
- Operating temperature
-20 to +50 °C
- Type
Wall-mounted
- Length
56 mm
- Width
76 mm
- Height
120 mm

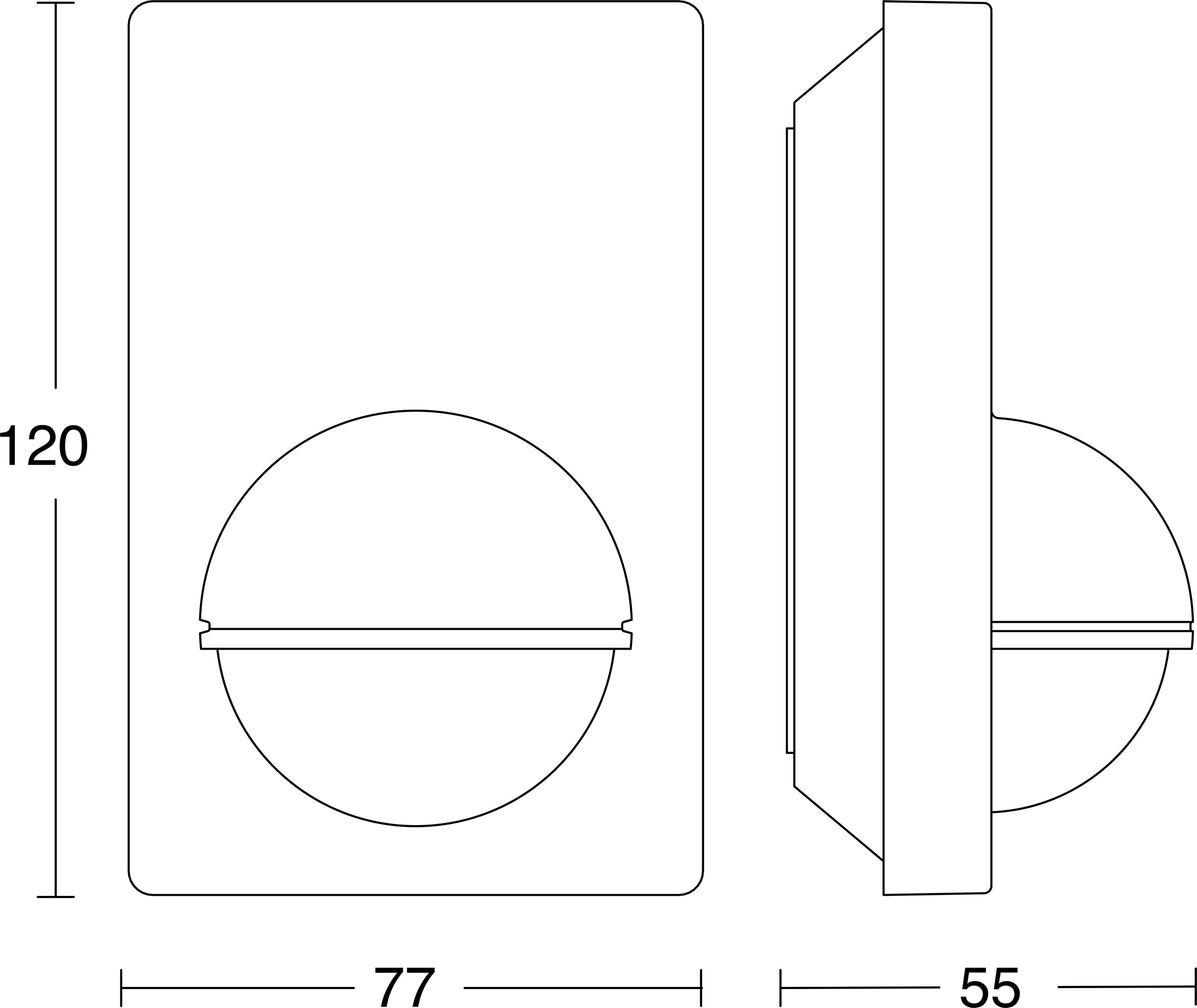

- Dim
(L x W x H) 56 x 76 x 120 mm
- Weight
0.171 kg
- Voltage (min.)
230 V
- Detection angle
180°
- Switch contact
Relays
- Operating voltage
230 V/50 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 611402 Steinel 603618 Wall PIR motion detector 180 ° Relay Silver IP54
User & Safety Instructions
User & Safety Instructions 611402 Steinel 603618 Wall PIR motion detector 180 ° Relay Silver IP54
Warranty Terms
Warranty Terms 611402 Steinel 603618 Wall PIR motion detector 180 ° Relay Silver IP54
Description

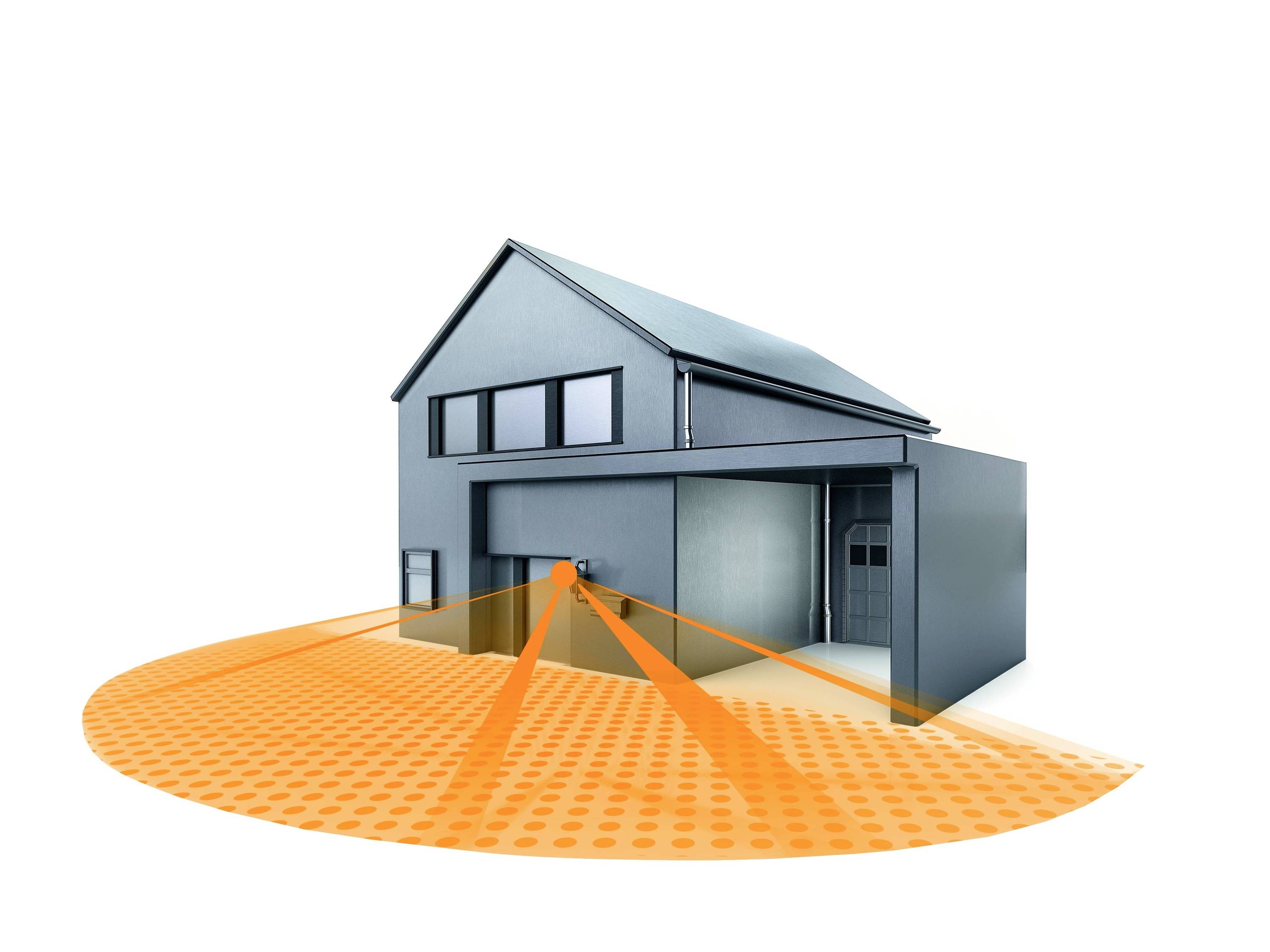

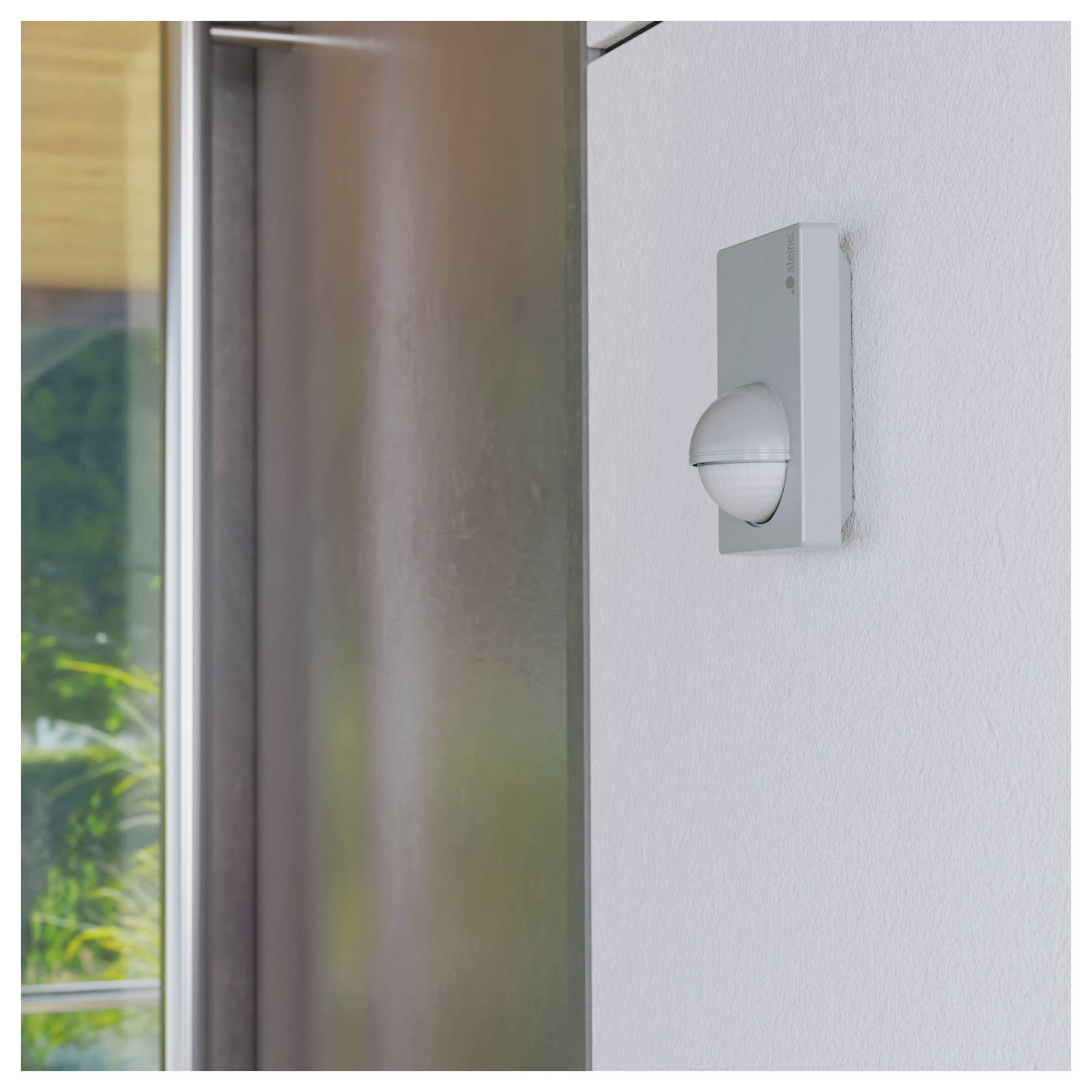

Slim, elegantly-designed infrared wall sensor, perfect for monitoring large house fronts and indoor areas such as corridors and basements. The motion detector combines modern, clear design with the latest sensor technology. Two highly sensitive infrared detectors, arranged next to each other at a special angle, make it possible to monitor areas of up to 200 m² with seamless reliability. Setting options: Range can be set by rotating the multi-lens to max. 12 m or min. 5 m · Capturing range can be restricted with the accompanying cover plate · Simple setting of luminous period and twilight threshold via rotary dial.
Features
- Twilight setting 2 -2000 Lux

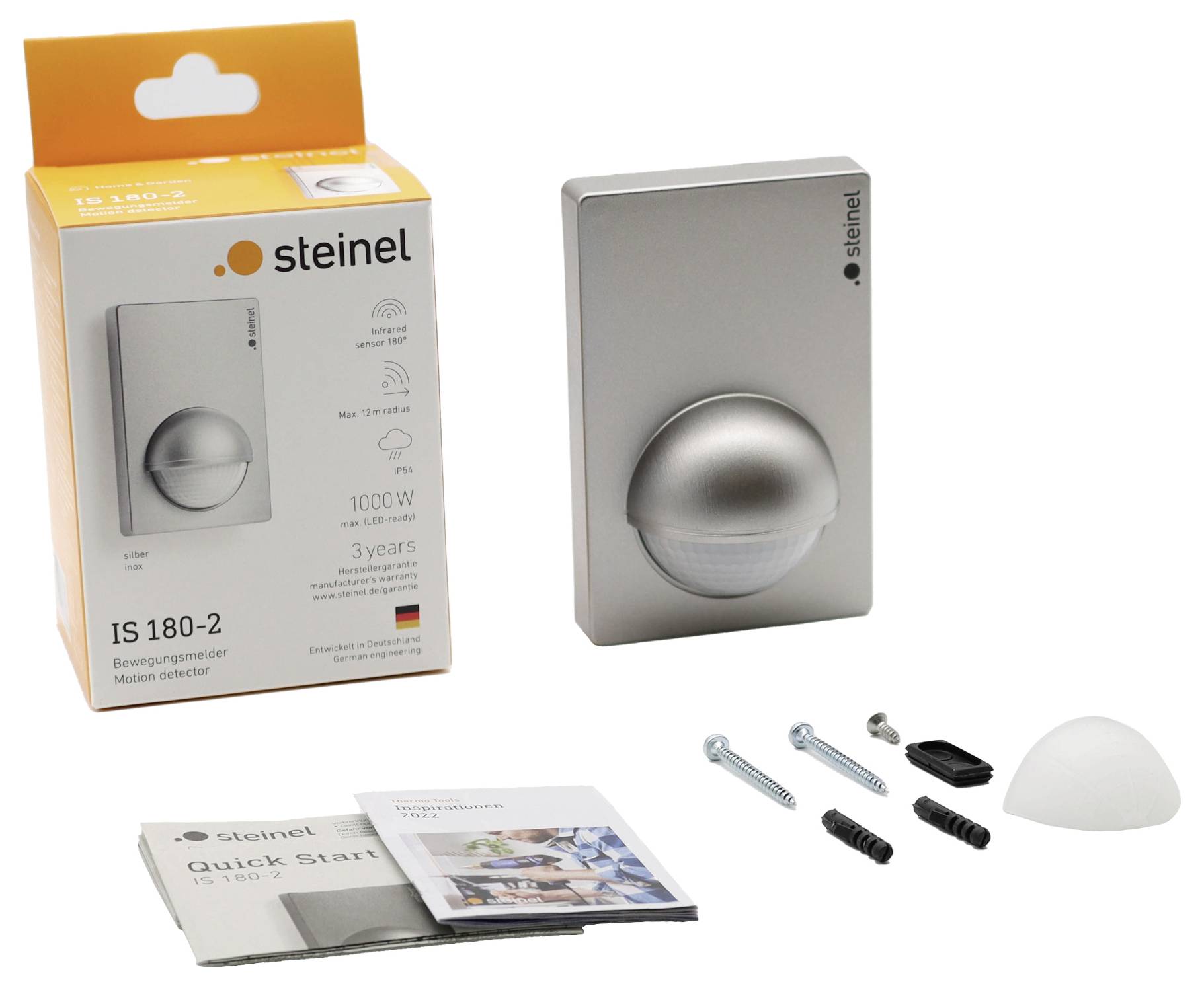

Scope of delivery
- Motion detector
- User manual.
Hints
Recommended installation height 2 m
IP 54
